Resin Traps

click above to see more images

Our resin traps are designed to be simple and easy to install.

Dimensions are based on ANSI B.16.5, and custom dimensions are also available upon request.

Materials for Resin Trap housing are 316SS, PVC and CPVC.
PVC and CPVC can be supplied with clear pipe for easy of inspection without dismounting trap.
The standard material for traps is AISI 316SS, but other alloys are available upon request.

Click above to preview drawing

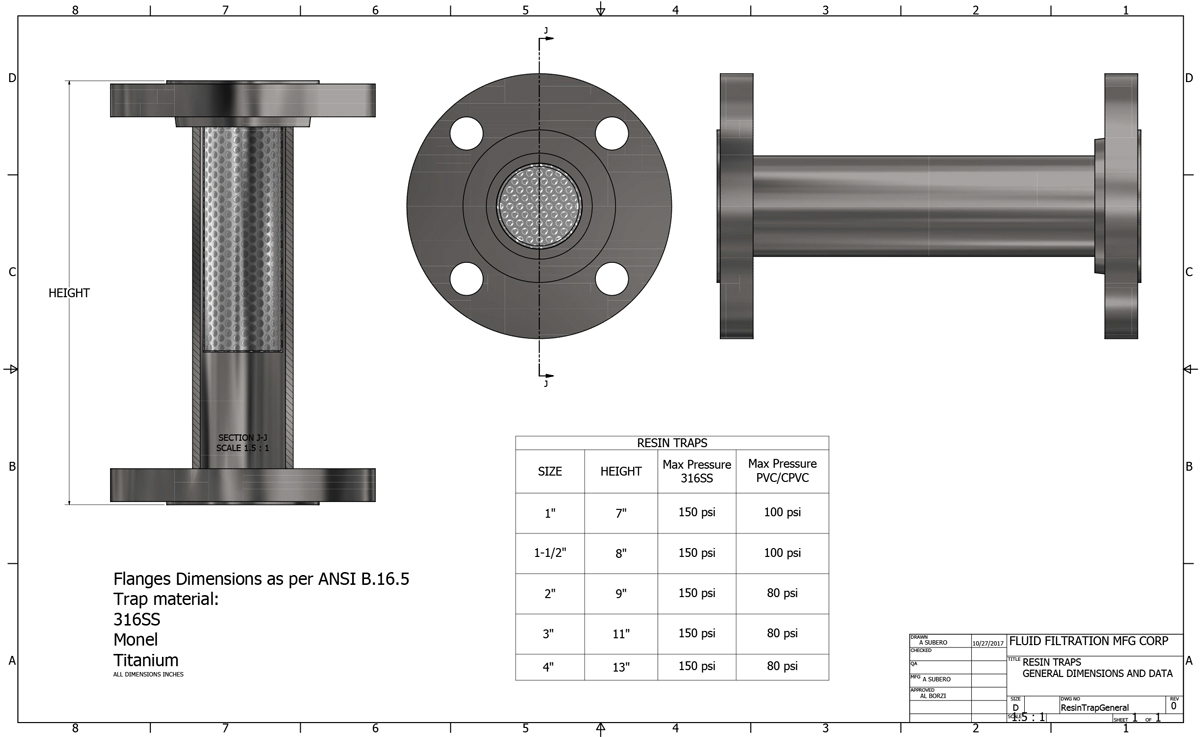

Resin Trap General

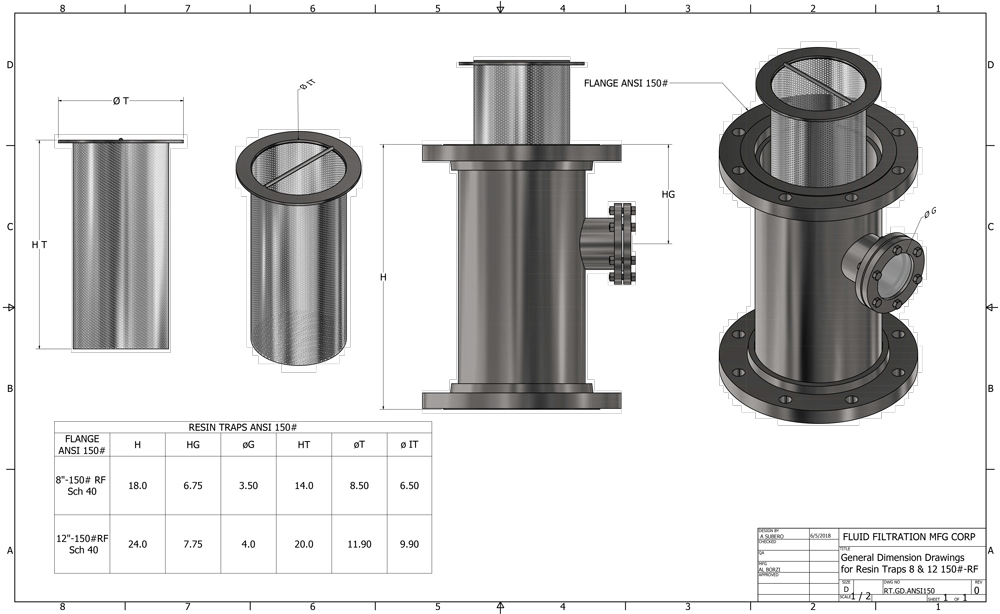

Resin Trap 8 & 12 150#-RF

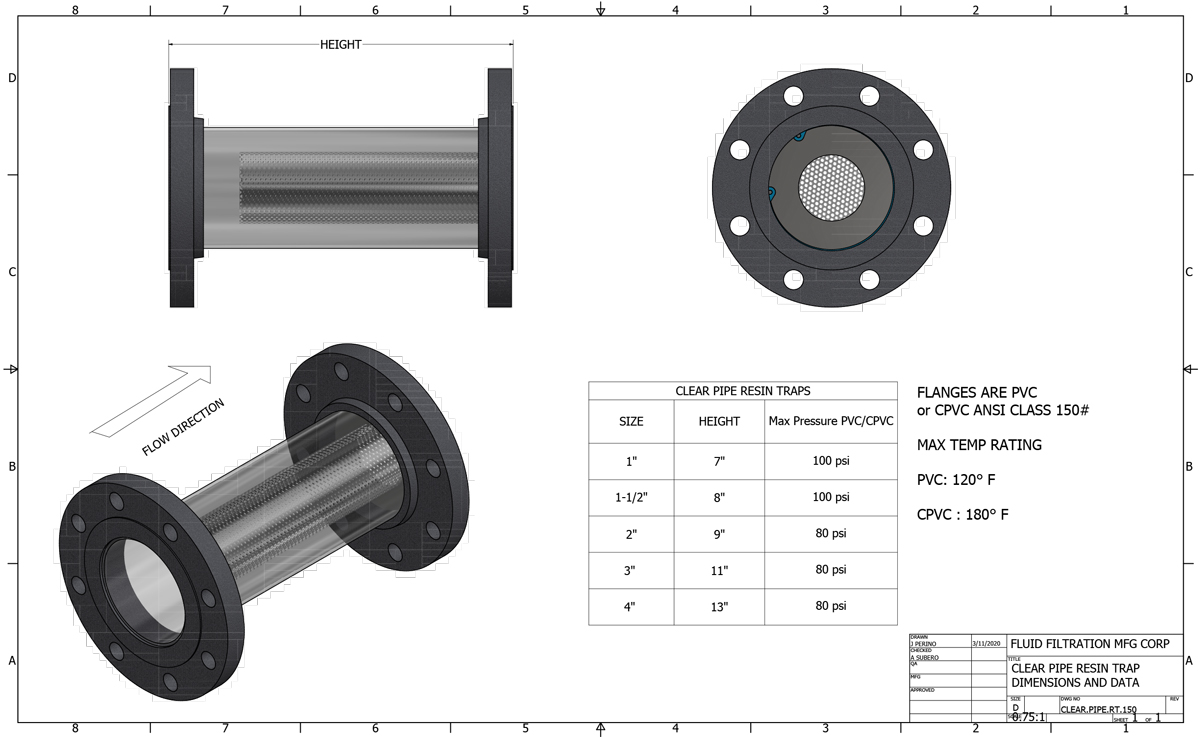

Ckear Pipe Resin Traps

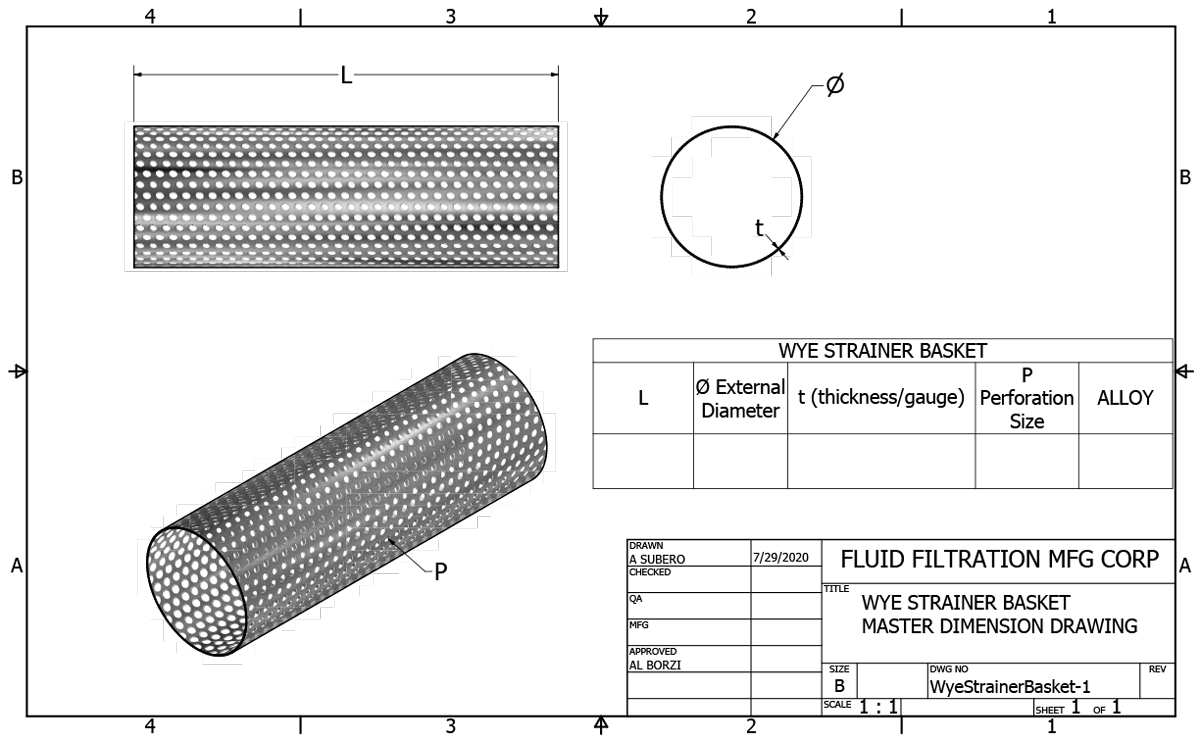

Wye Strainer Basket

Size 6.0" Stainless Steel 150# flange resin trap with wedge wire insert

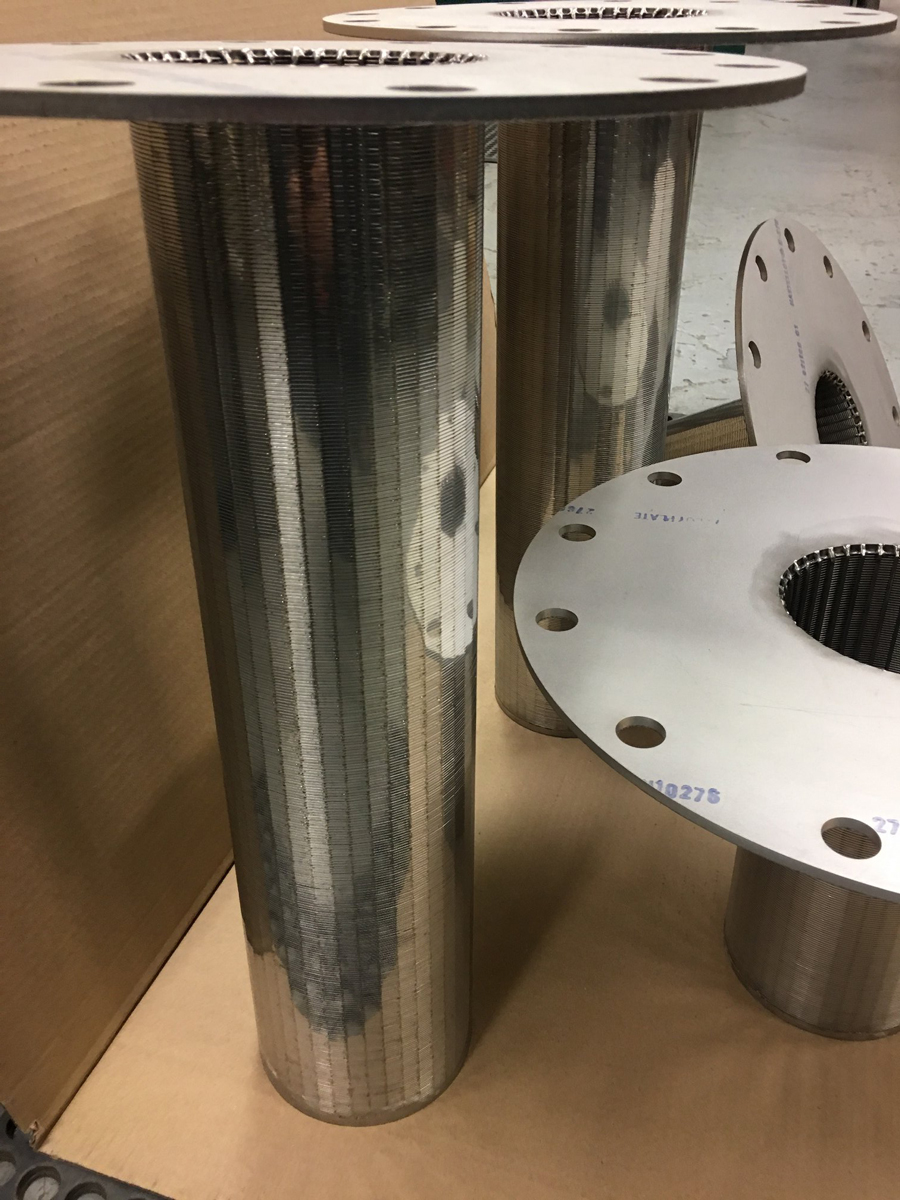

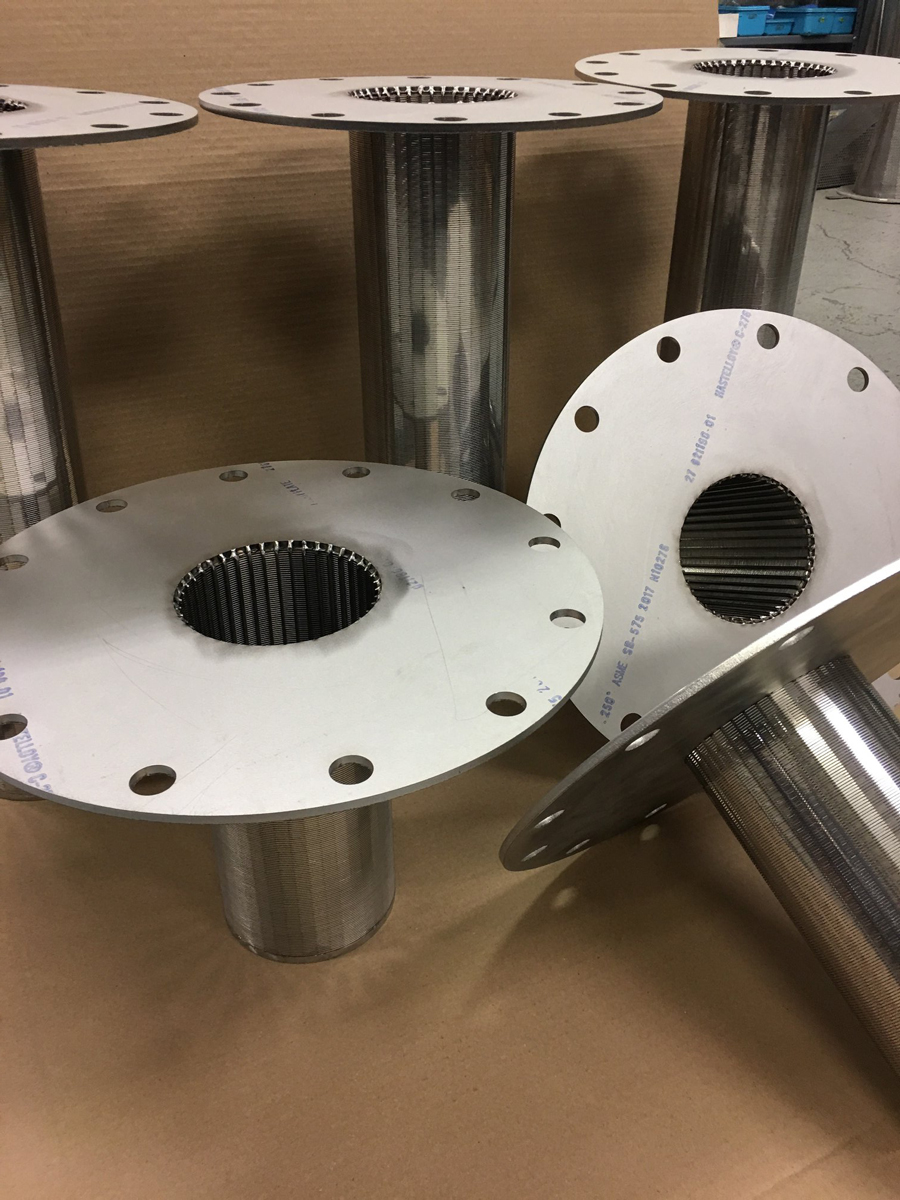

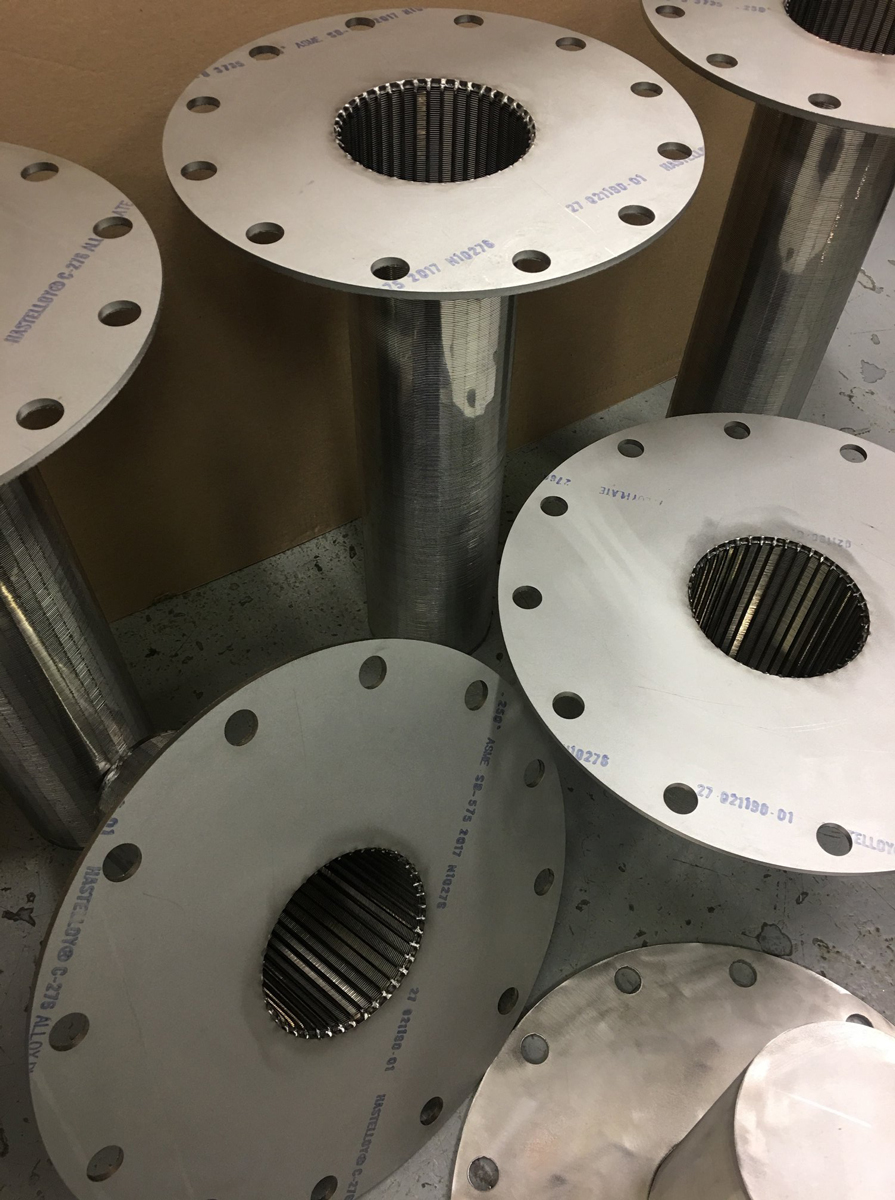

Hastelloy C-276 Wedge Wire Resin Traps

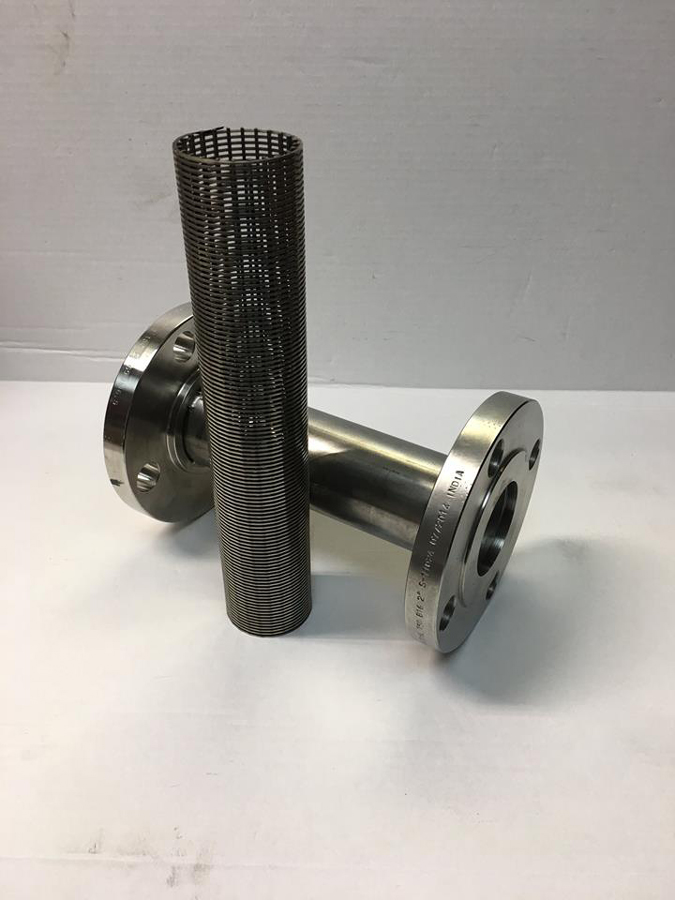

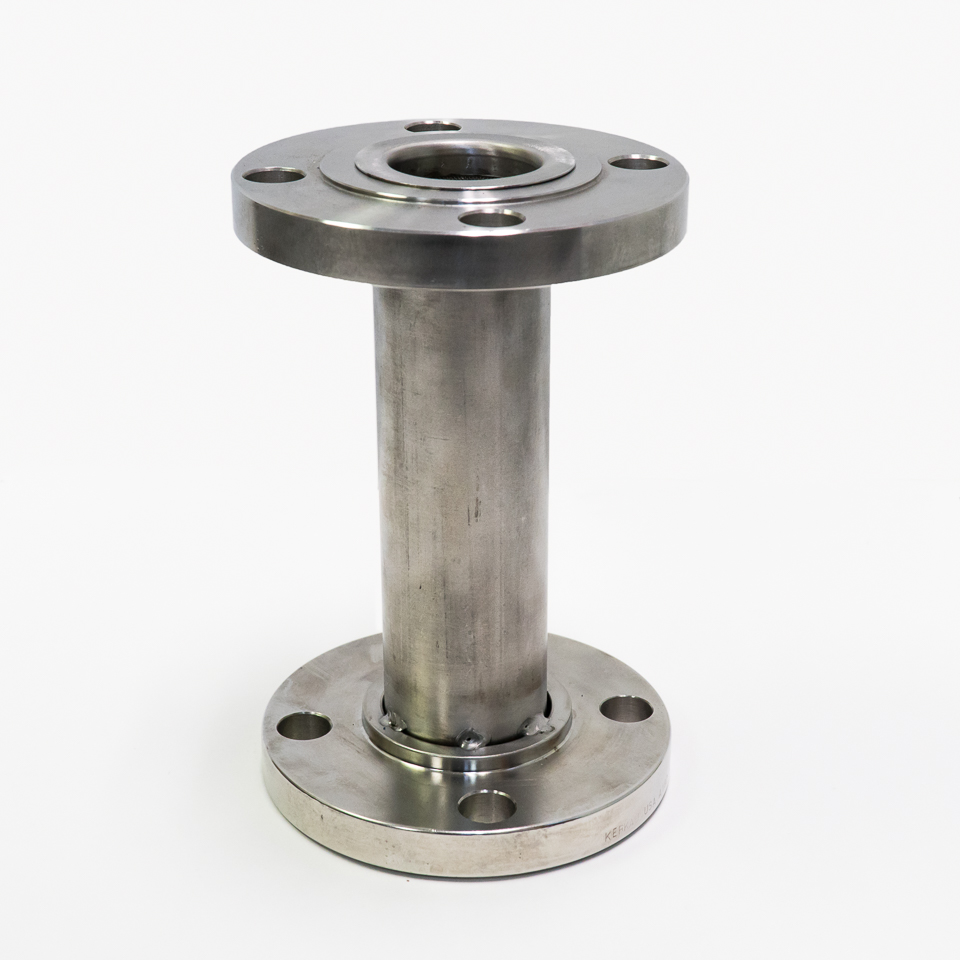

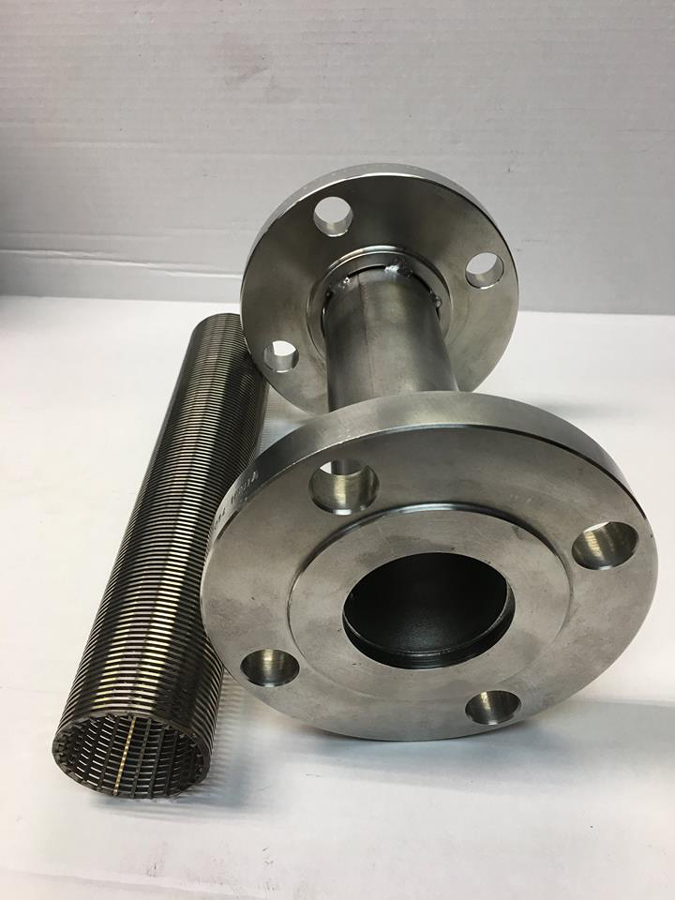

Stainless Steel 316-150# Flange Resin Traps with Wedge Wire Screens

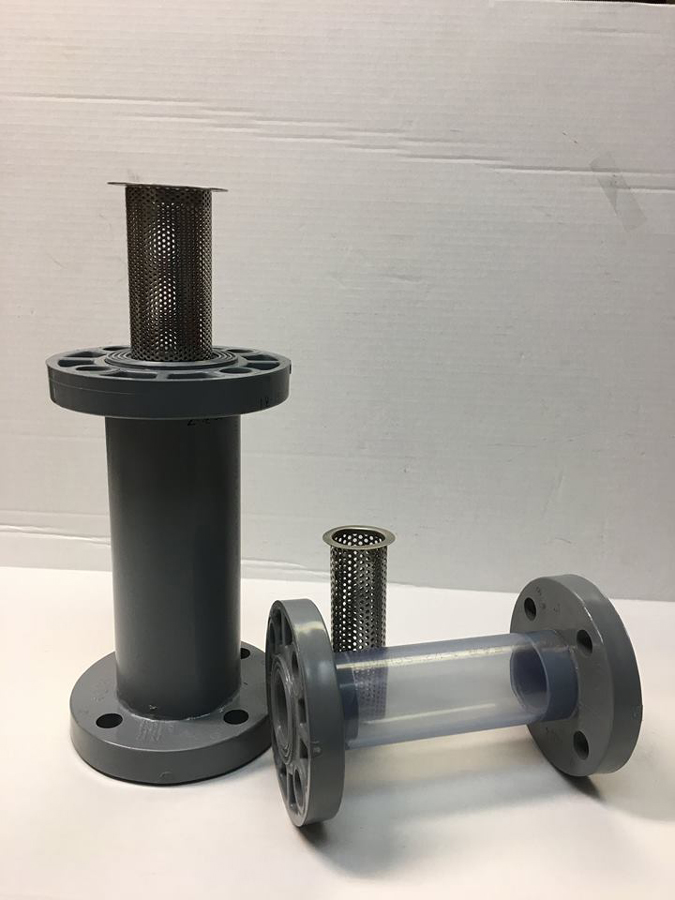

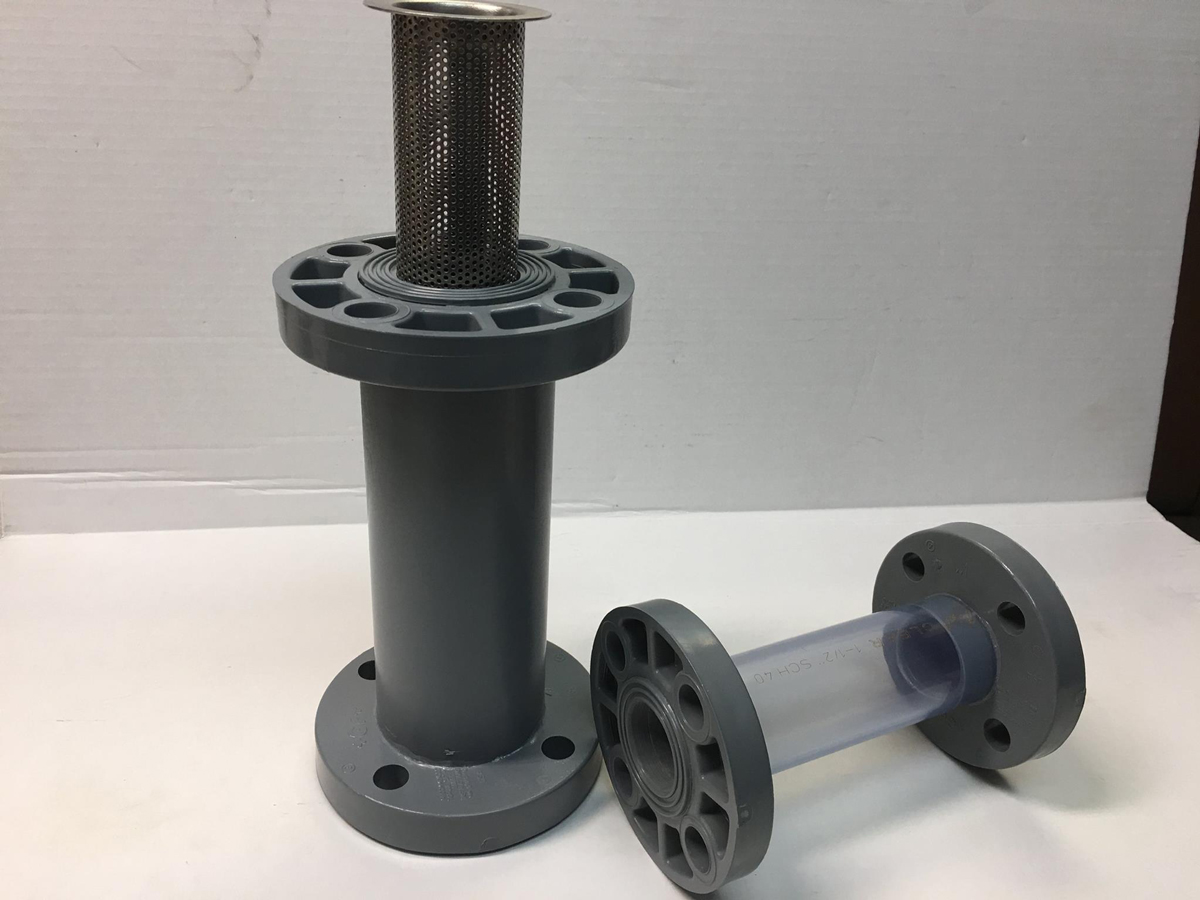

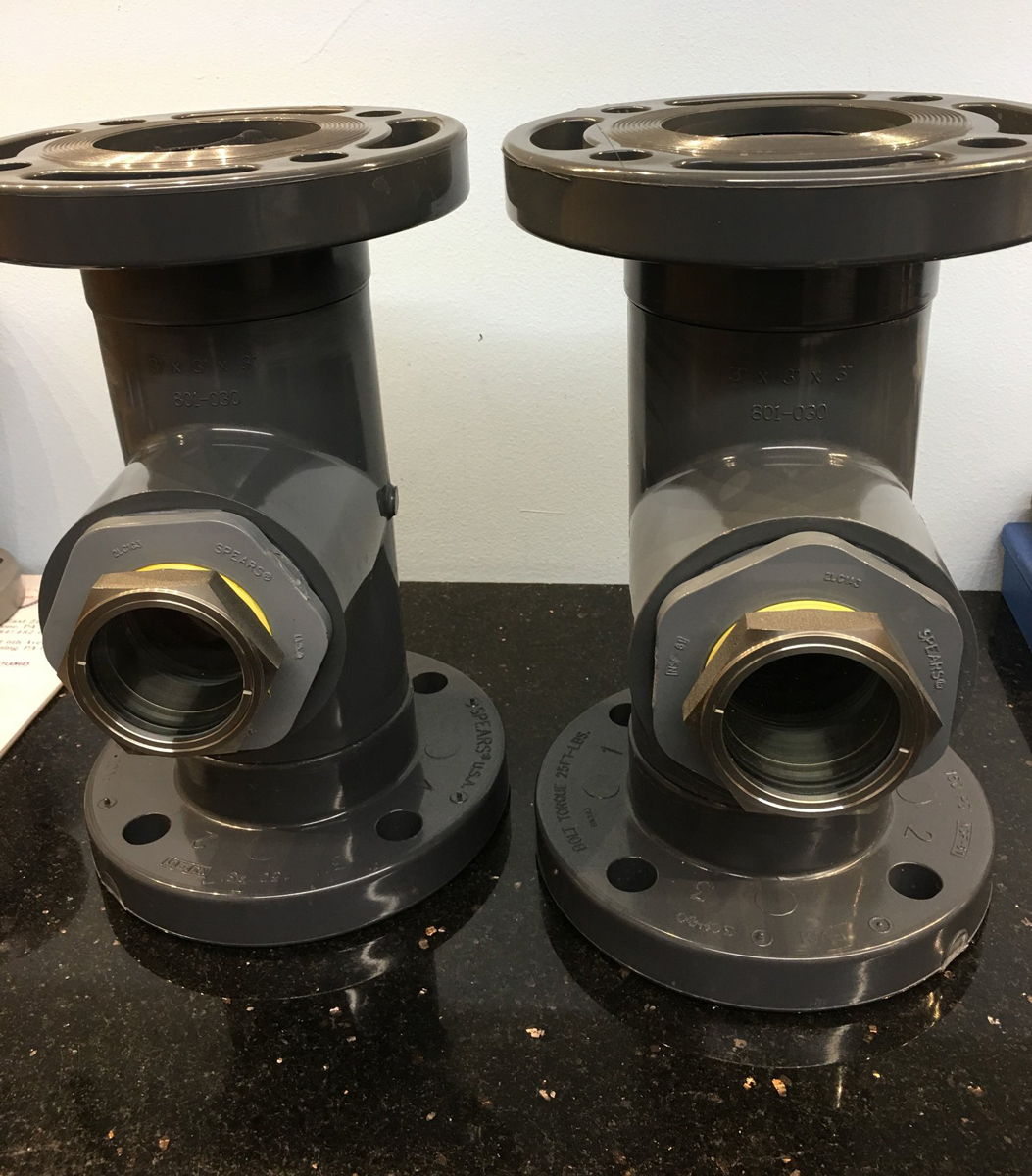

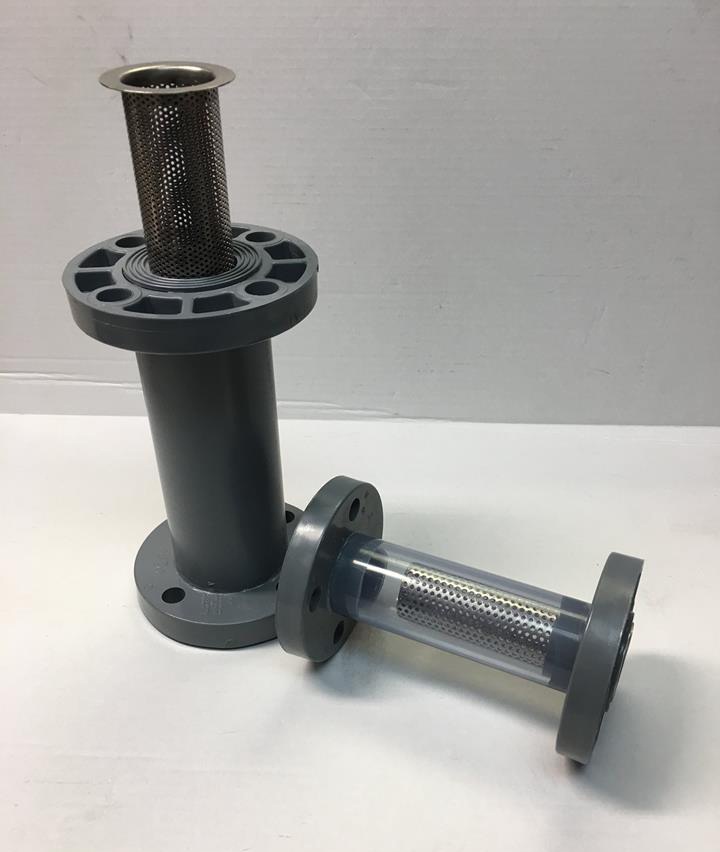

Size 3.0" and 4.0" CPVC 150# flange resin trap with clear sight glass

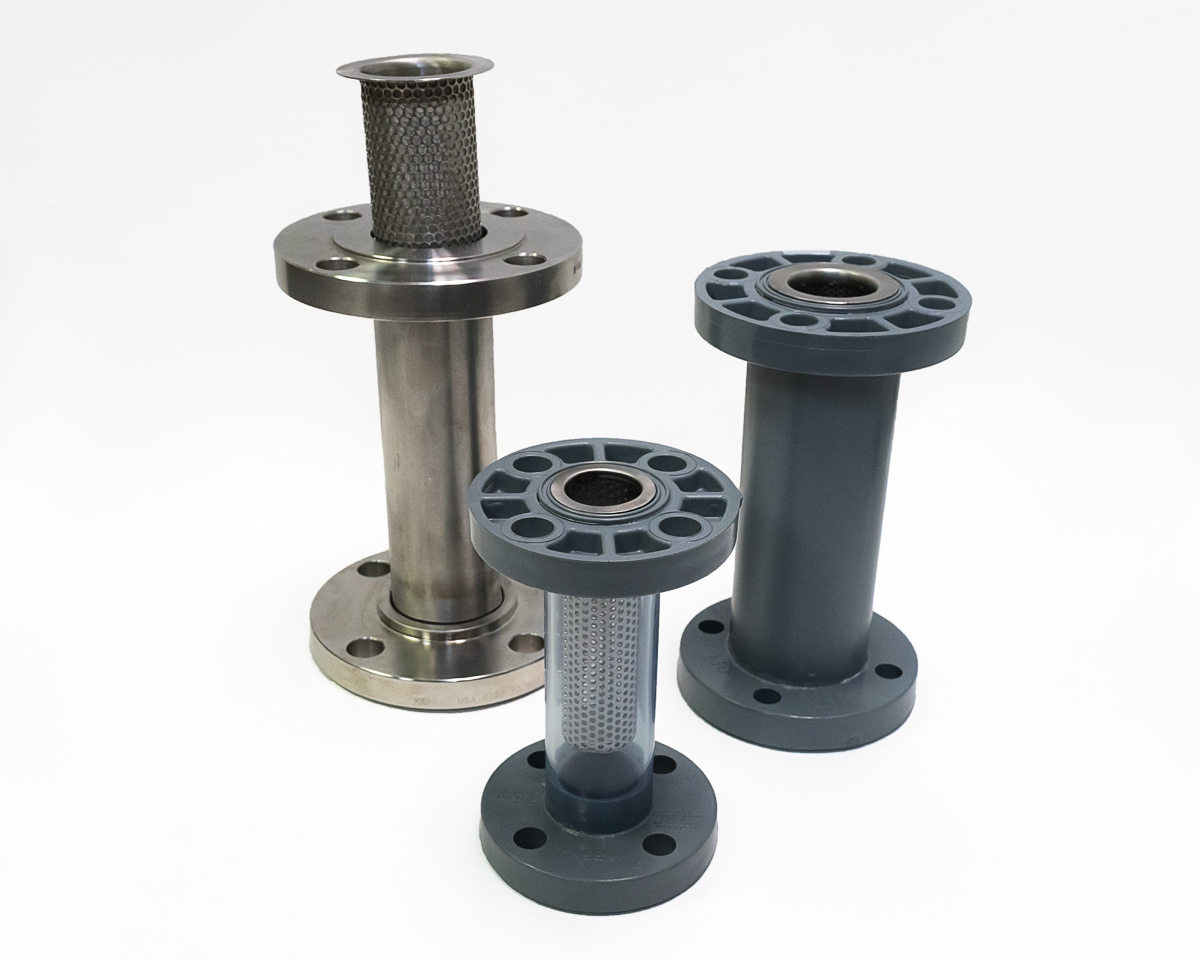

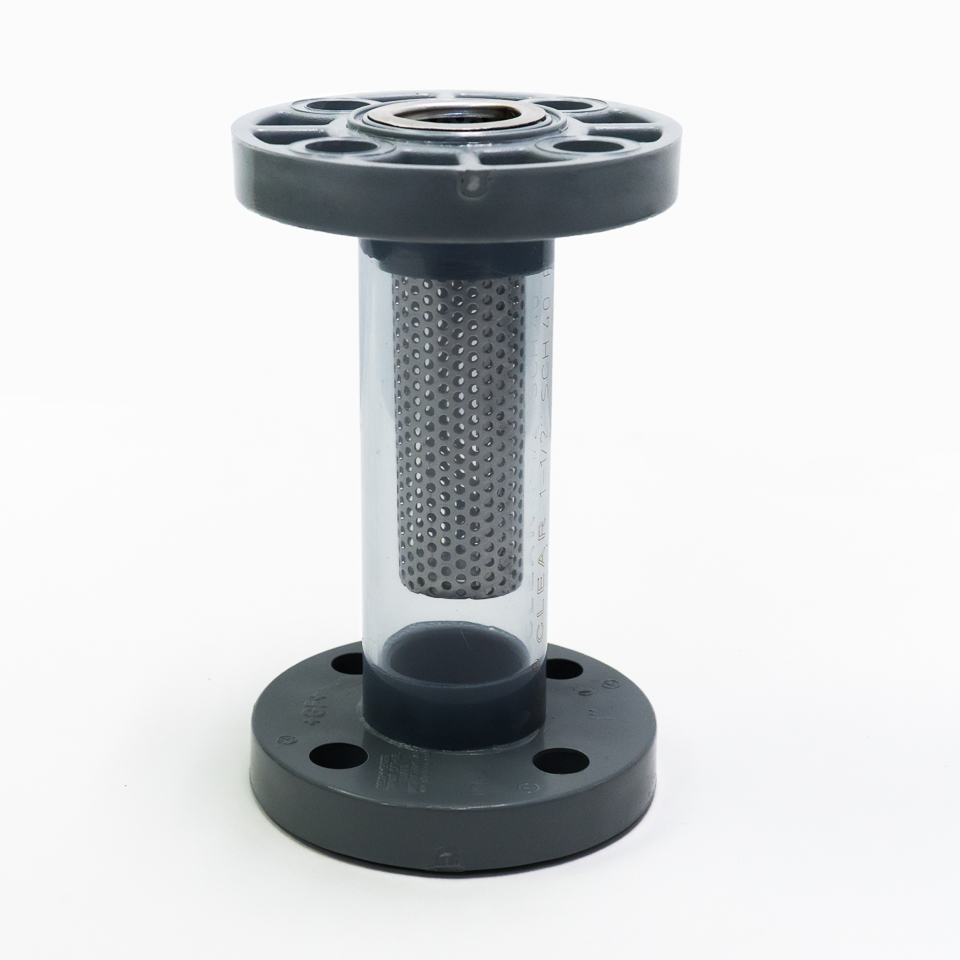

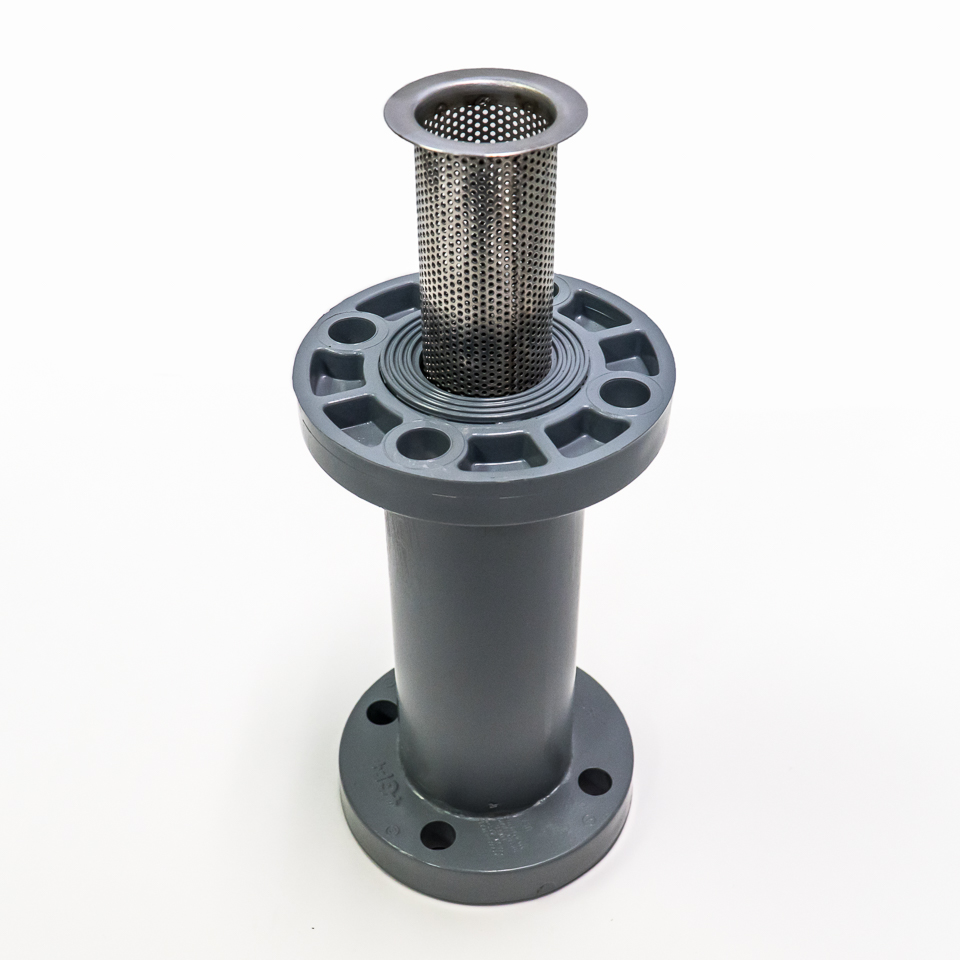

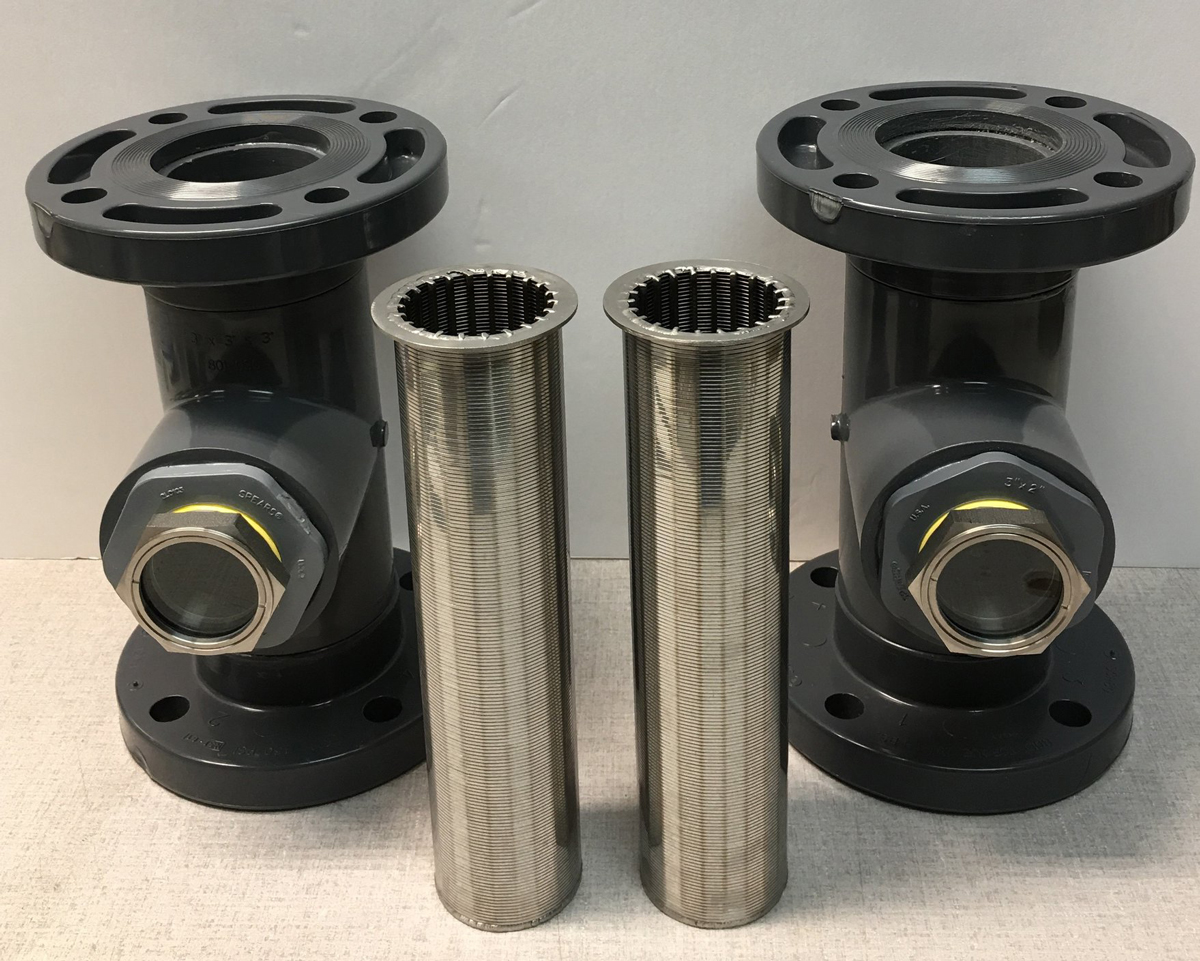

PVC Resin Traps with Sight Glass and Wedge Wire Screens

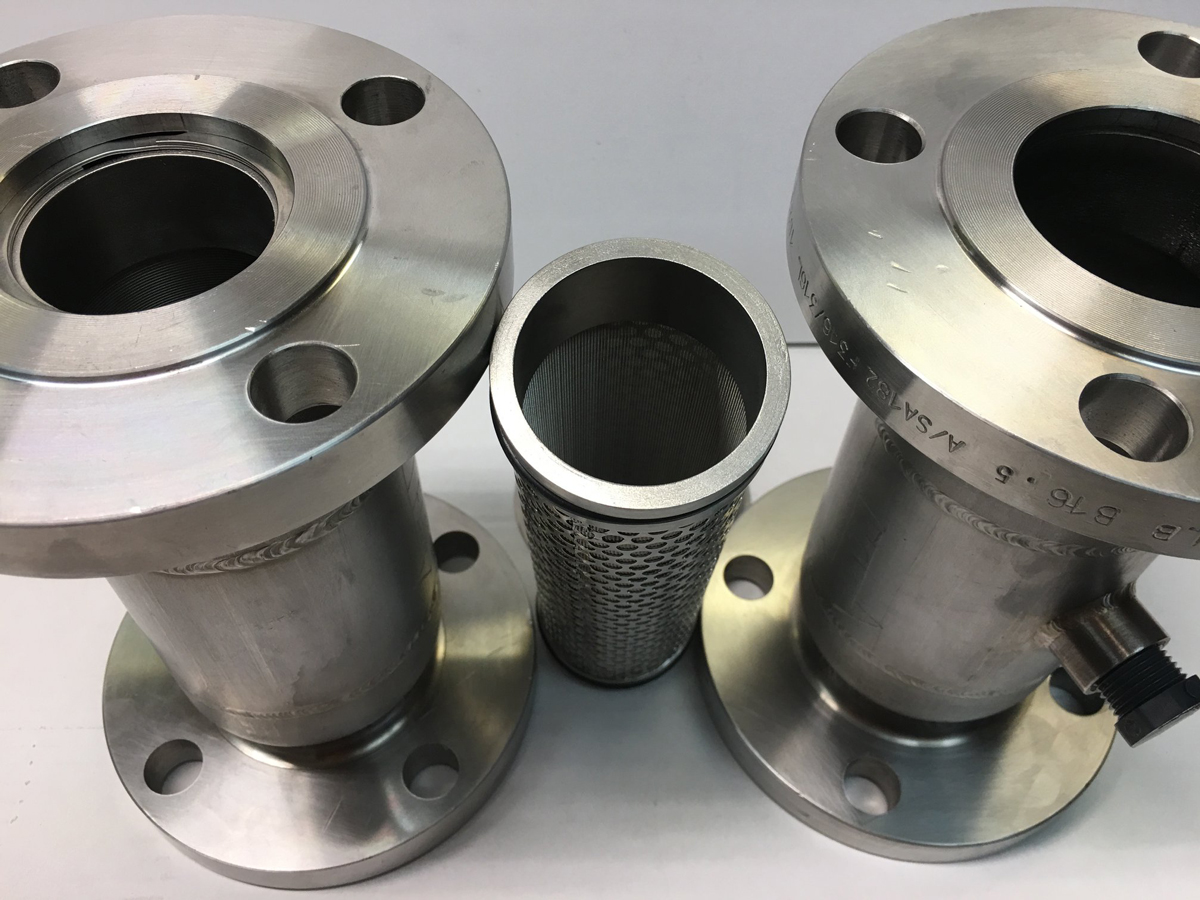

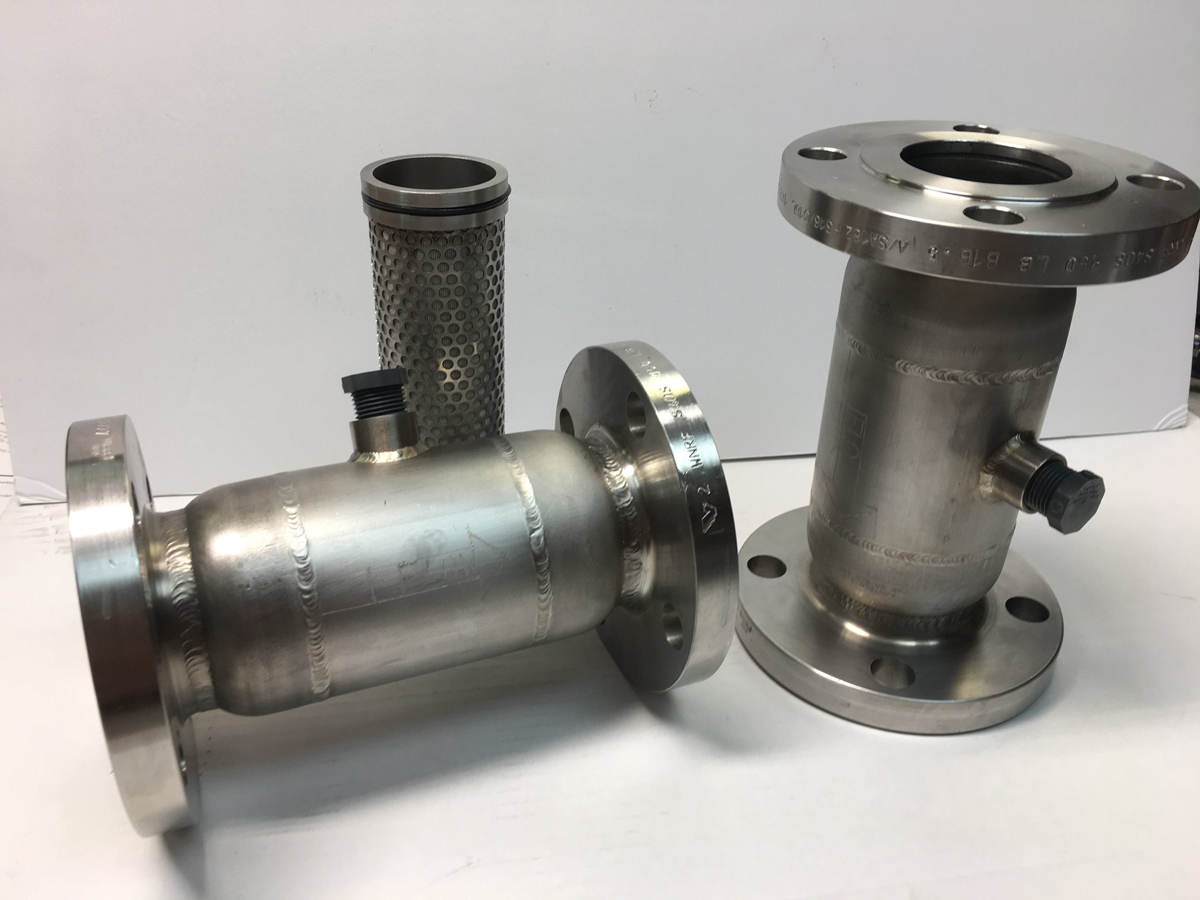

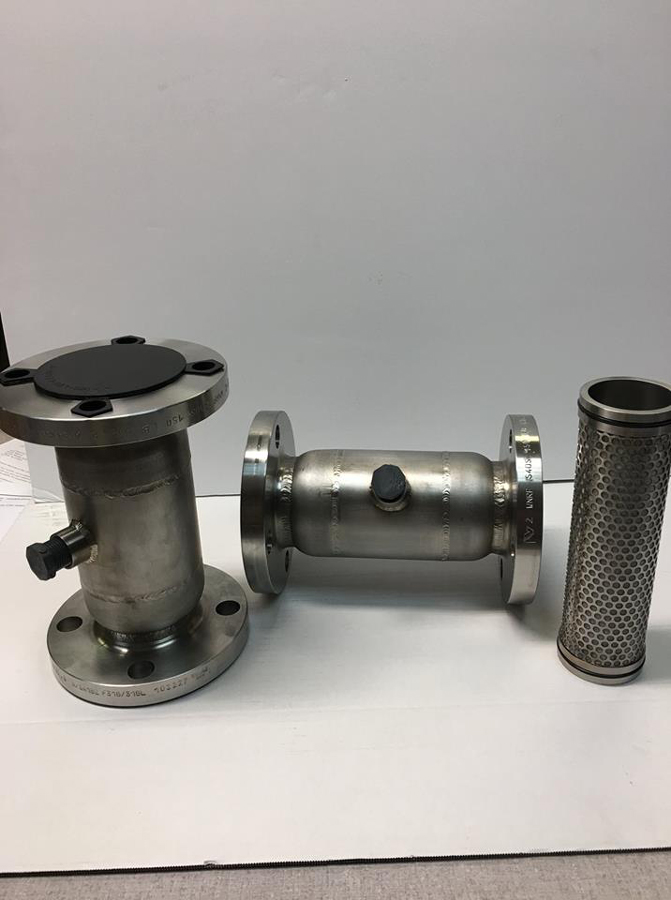

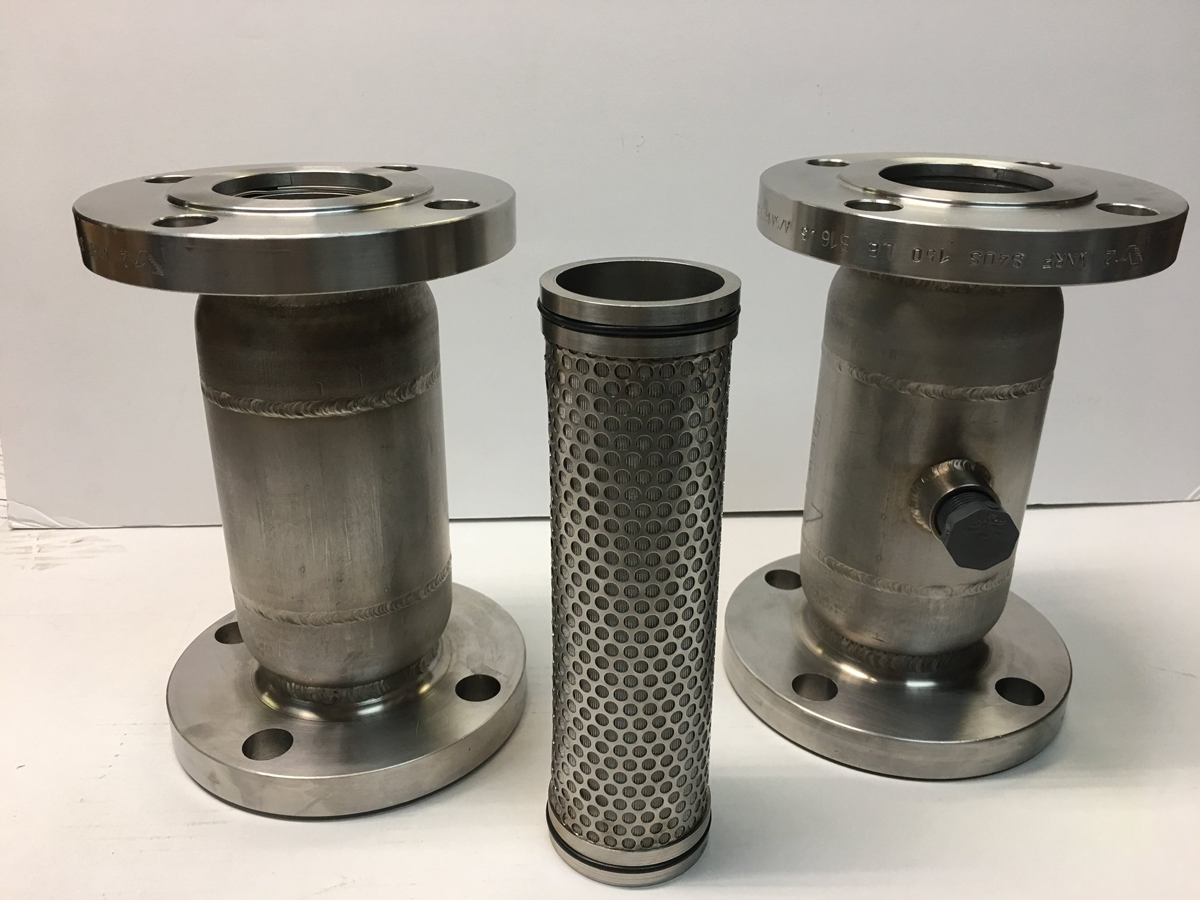

Stainless Steel 316, 3" 150# resin trap

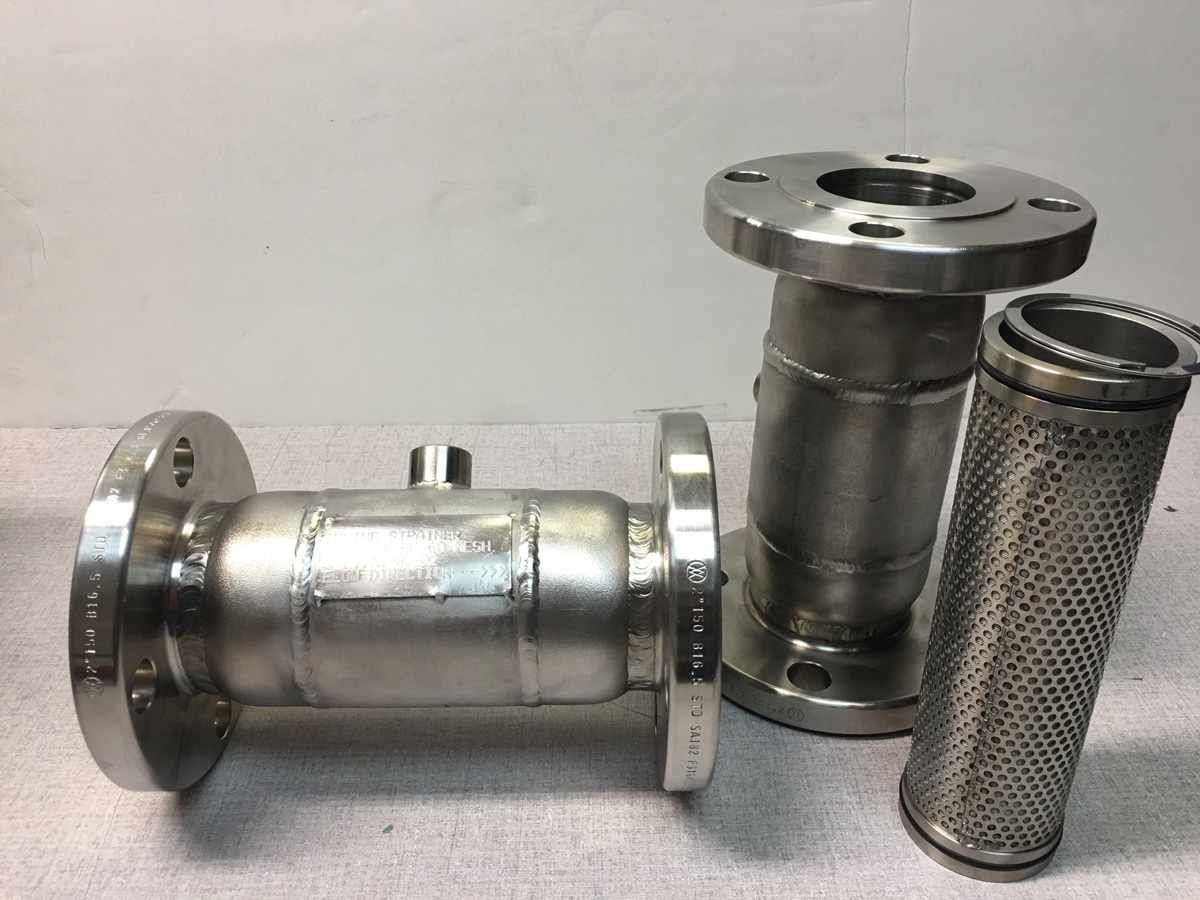

3.0 Titanium 150 lb flange resin traps. This custom order can be used in the food industry

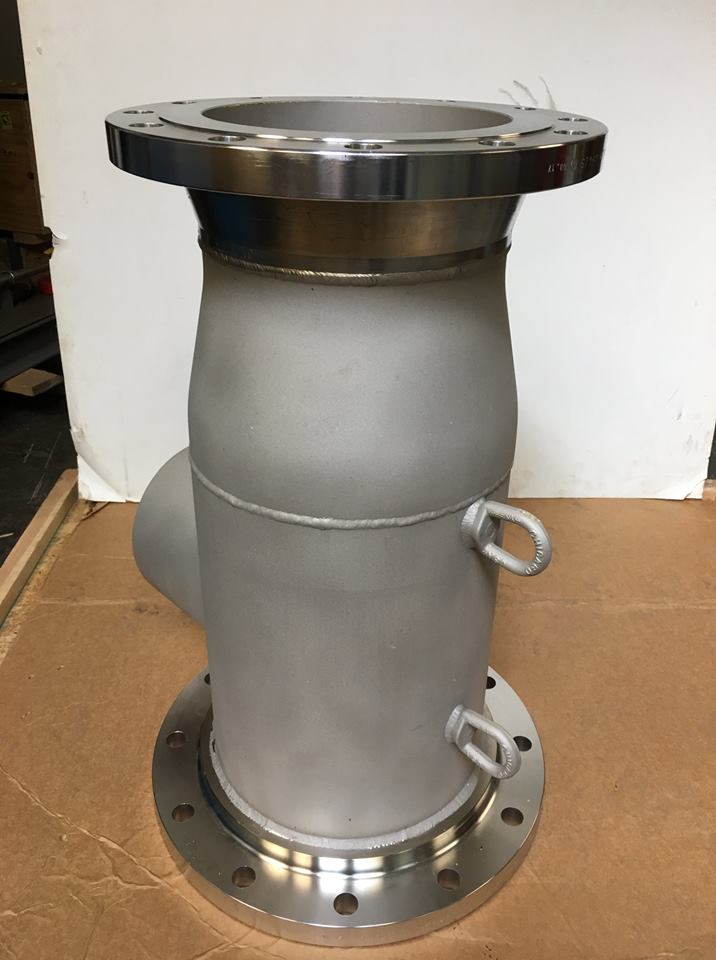

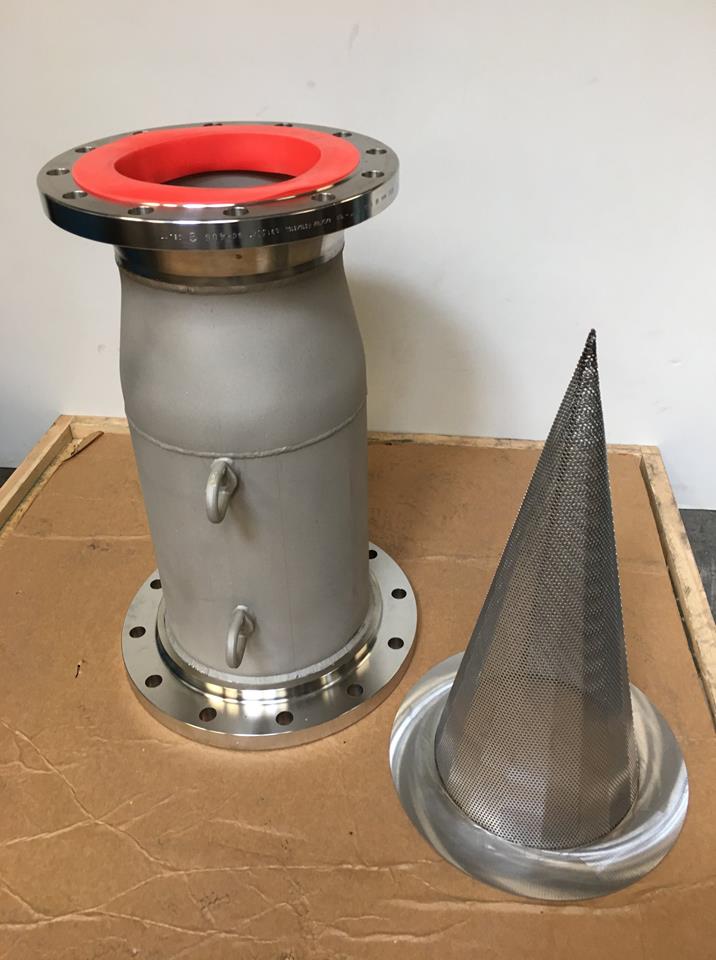

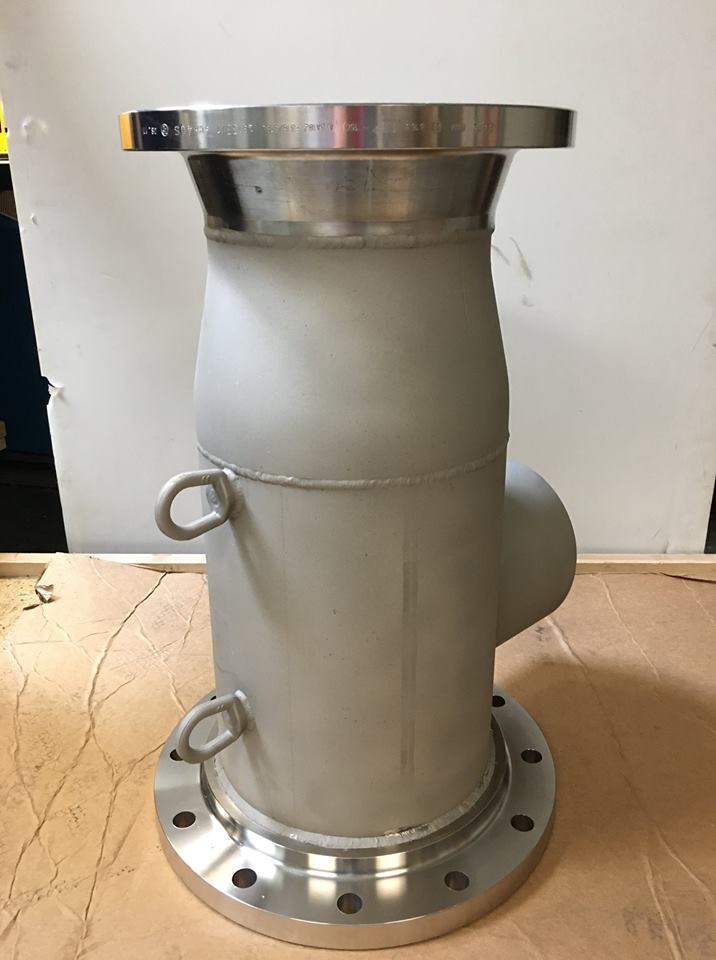

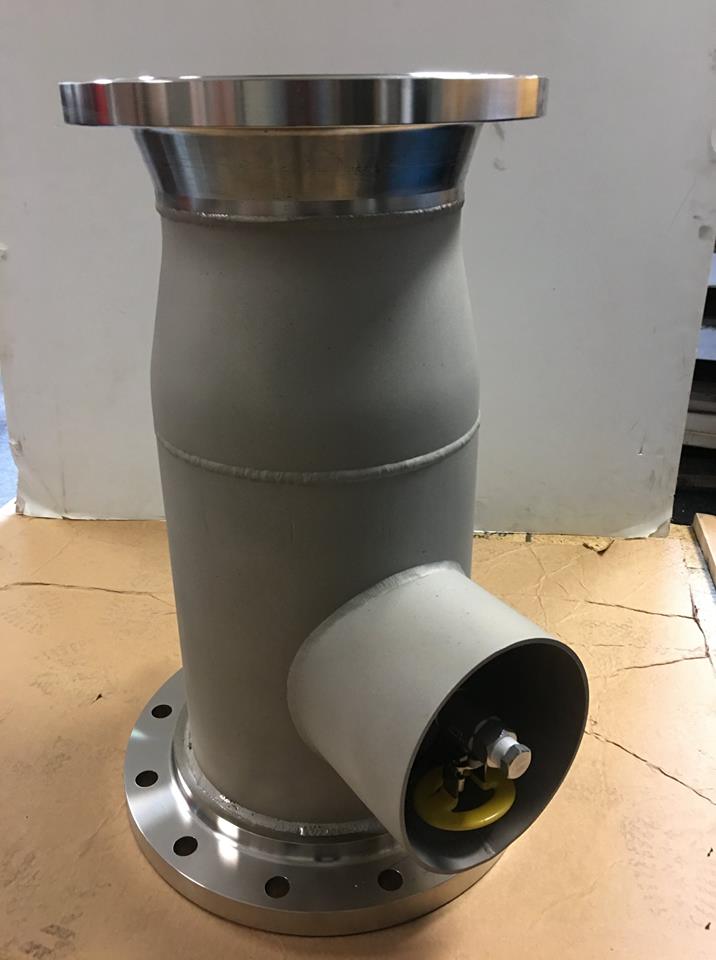

All Stainless Steel 316, size 12" resin trap with cone strainer on the inside
