Wedge Wire Screens

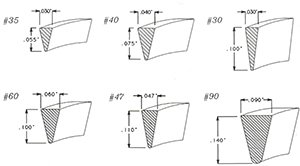

Click above to preview drawing



The design and versatility of wedge wire products makes itself an ideal component for fluid treatment industry.

  • Conical strainers
  • Strainer baskets
  • High pressure cylindrical screens
  • Resin traps
  • Filter nozzles
  • Custom designed fabricated parts

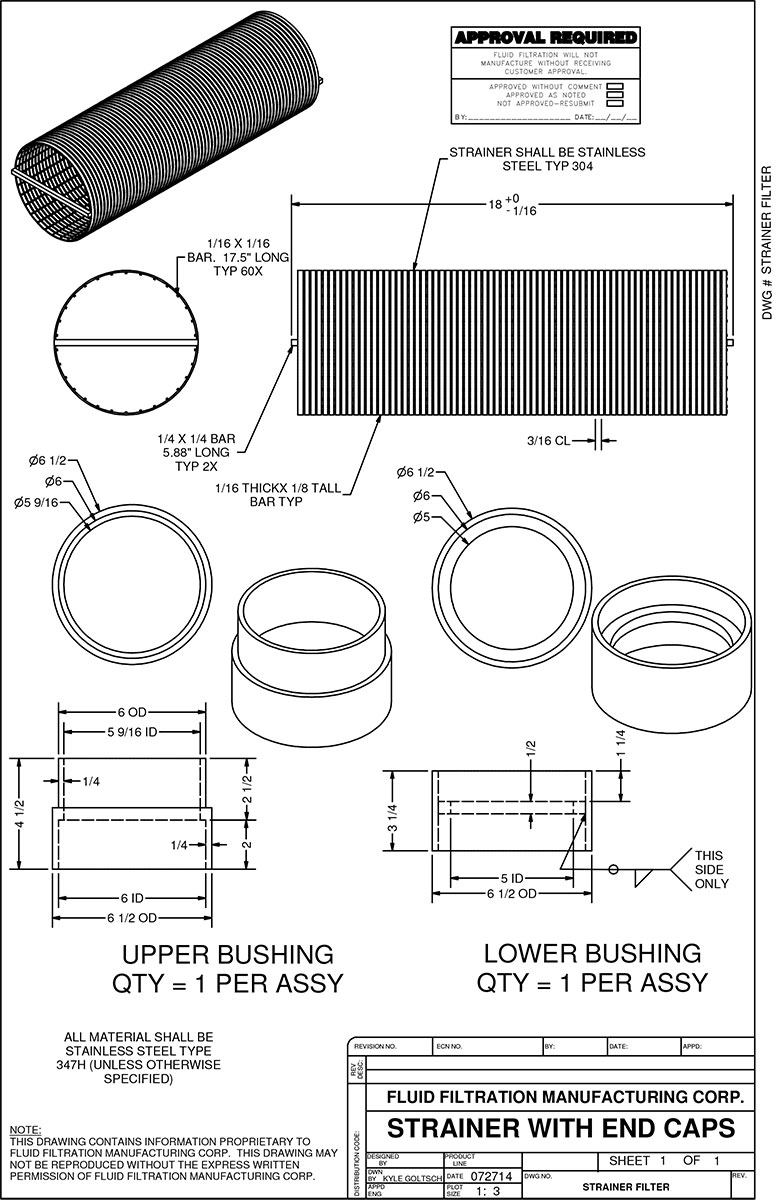

  • Strainer with End Caps

Specification

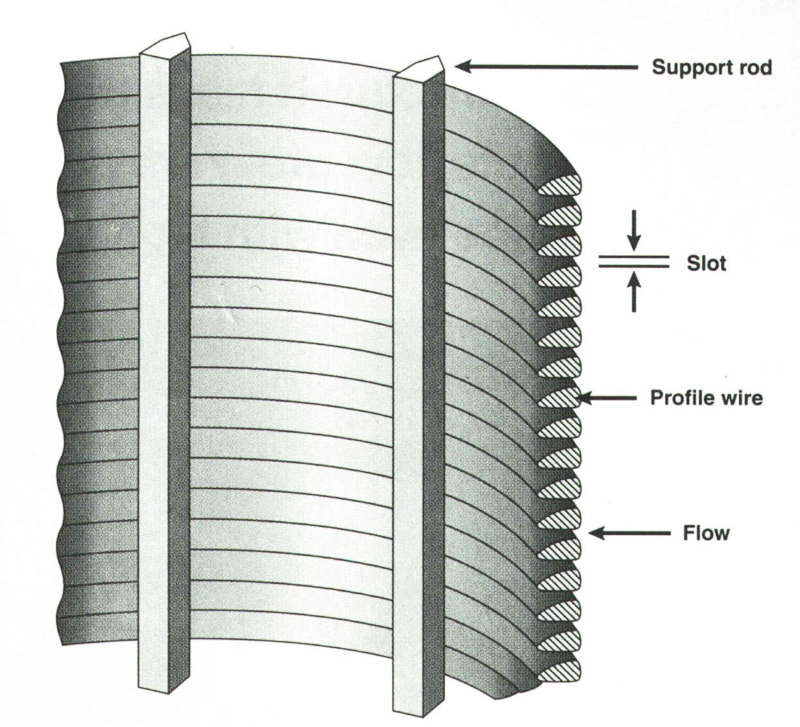

Wedge-Wire products are manufactured by an exclusive process of continuously welding an outer profile wire circumferentially in a helix pattern to a series of longitudinal support rods.
Alloys available are Stainless Steels, Monel, Titanium, Alloy C-276

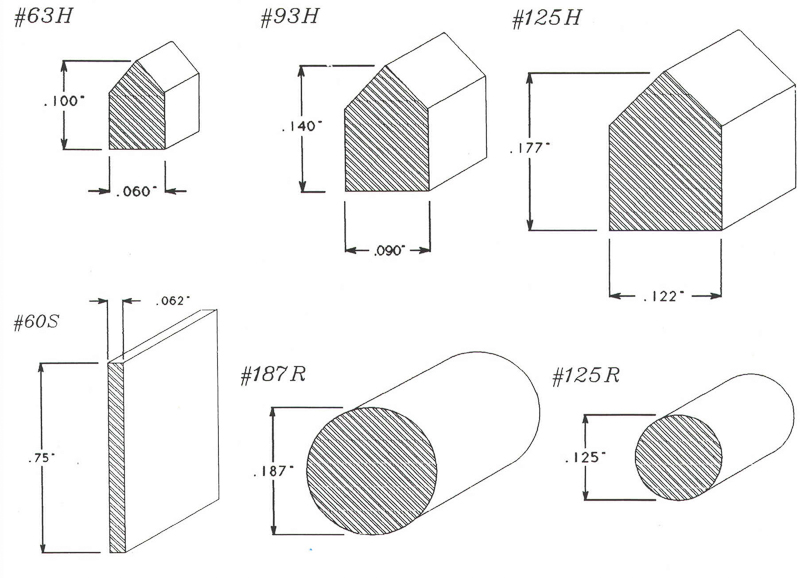

Profile Wire

Suport Rods

Particle Siz

U.S. Mesh Slot Size (inches) Microns Millimeters
10 .0787 2000 2.00
20 .0331 841 .84
25 .0280 707 .71
30 .0232 595 .59
40 .0165 420 .42
50 .0117 297 .297
60 .0098 250 .250
70 .0083 210 .210
80 .0070 177 .177
100 .0059 149 .149
120 .0049 125 .125
140 .0041 105 .105
170 .0035 88 .088
200 .0029 74 .074
270 .0021 53 .053

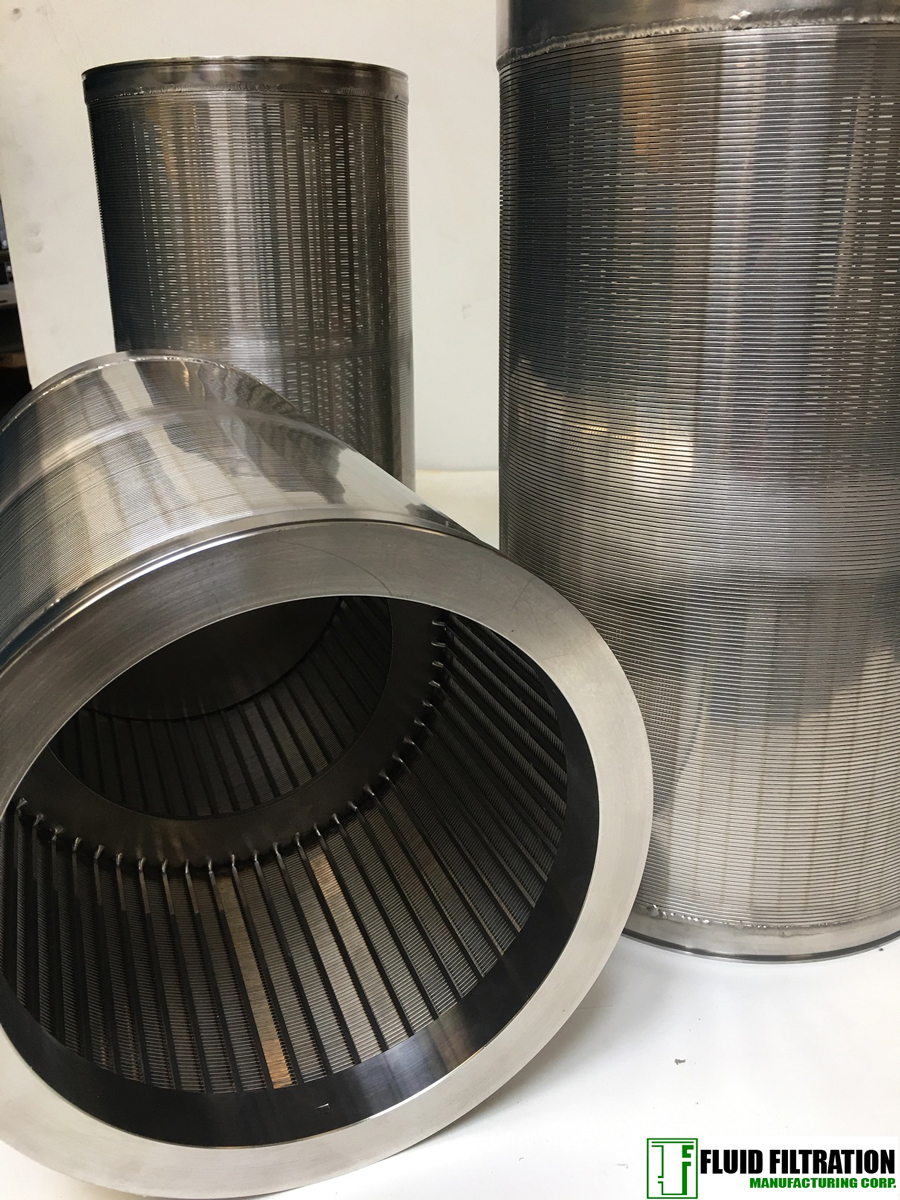

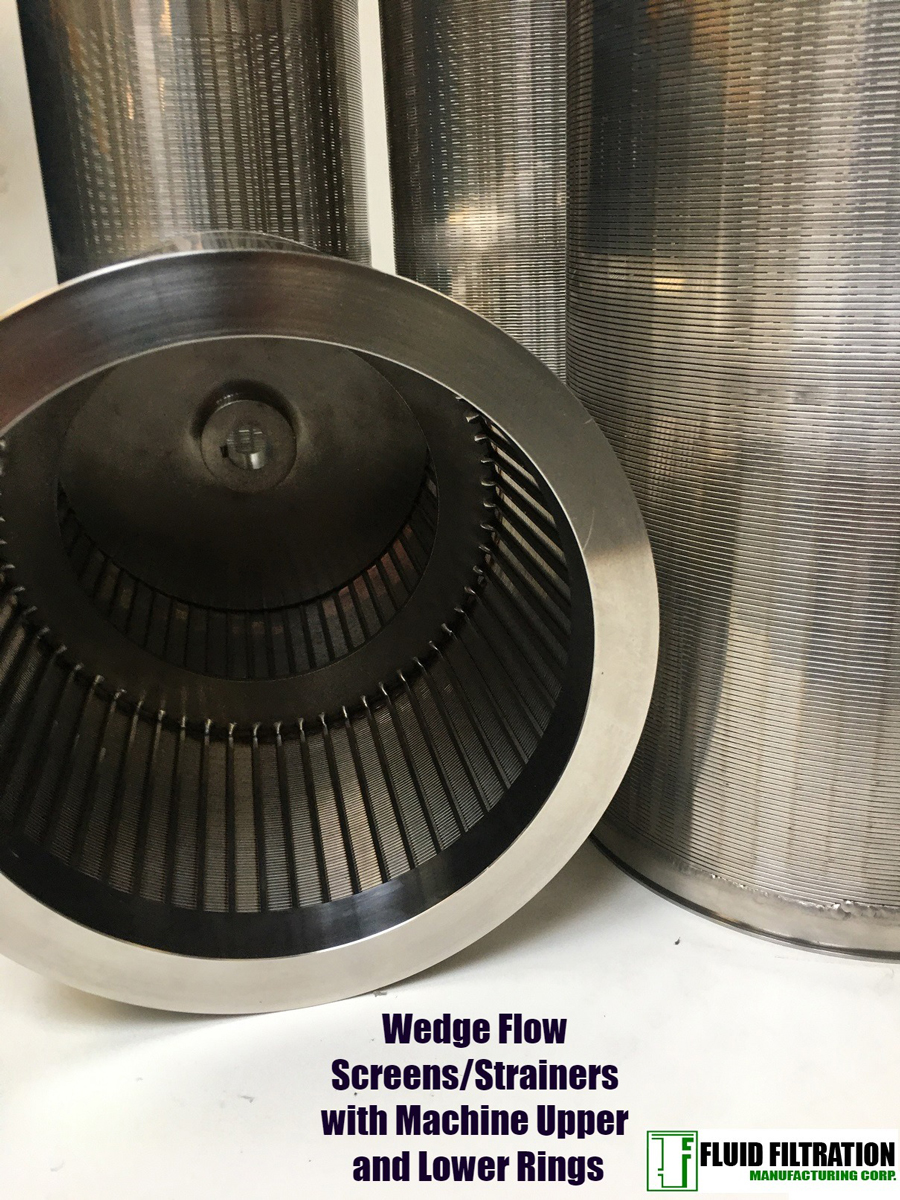

Wedge Flow Screens/Strainers with Machine Upper and Lower Rings

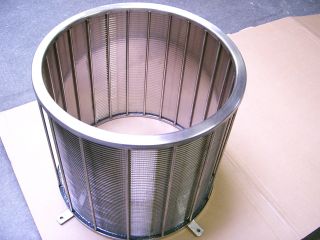

Wedge Flow/Wedge Wire Screens Stainless Steel type

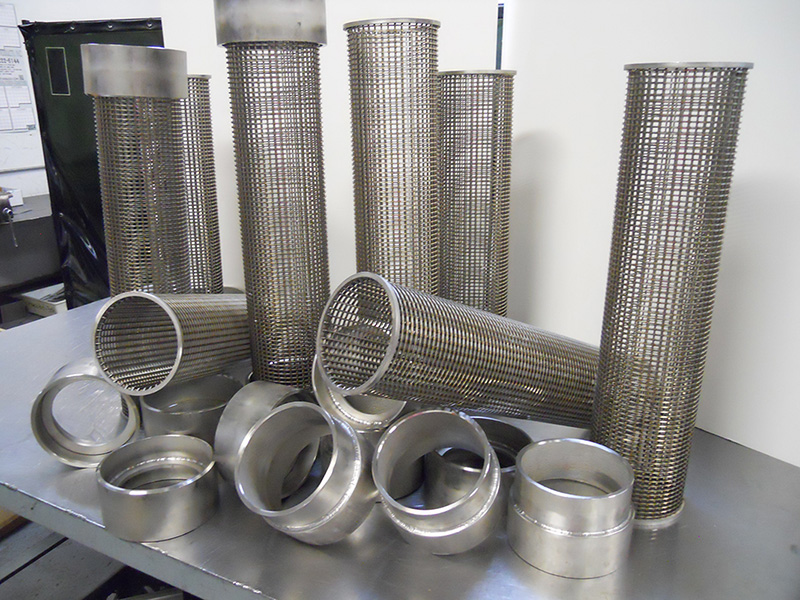

Wedge Wire Screen

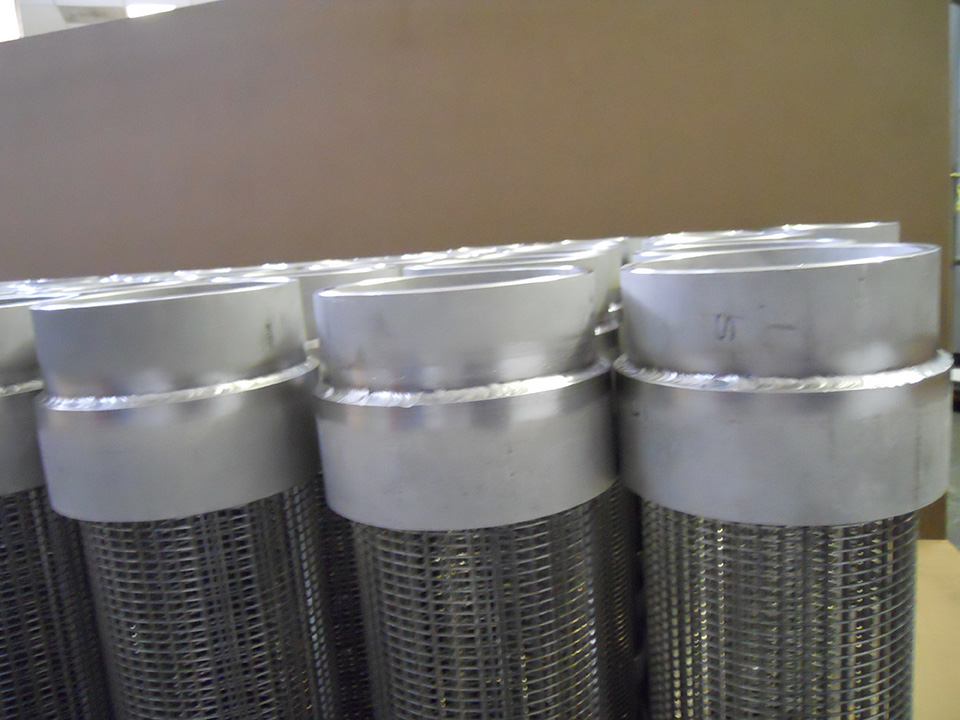

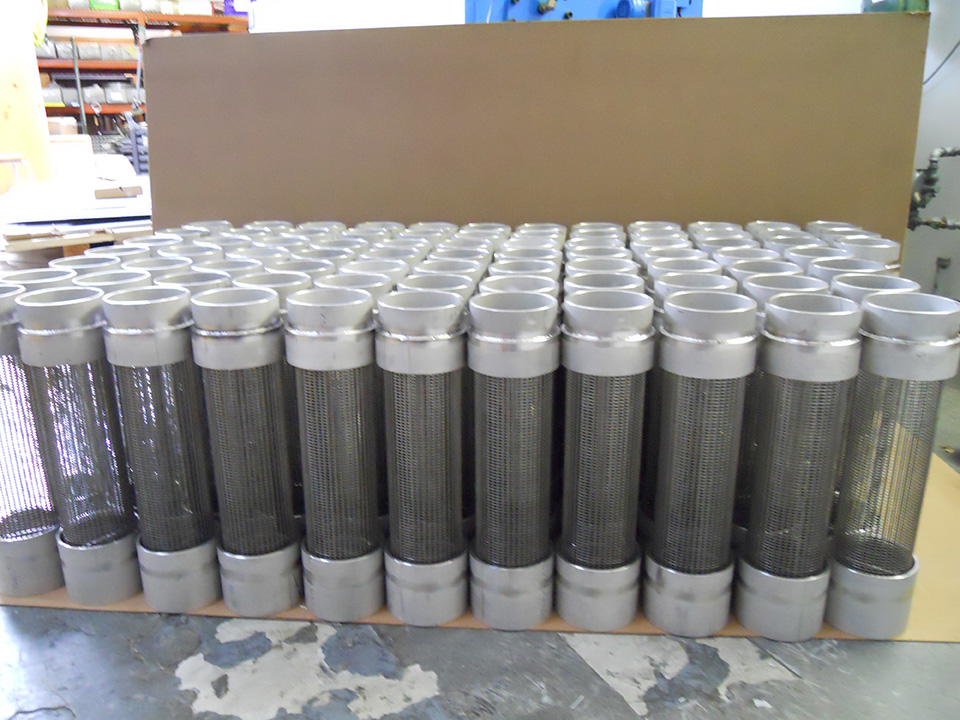

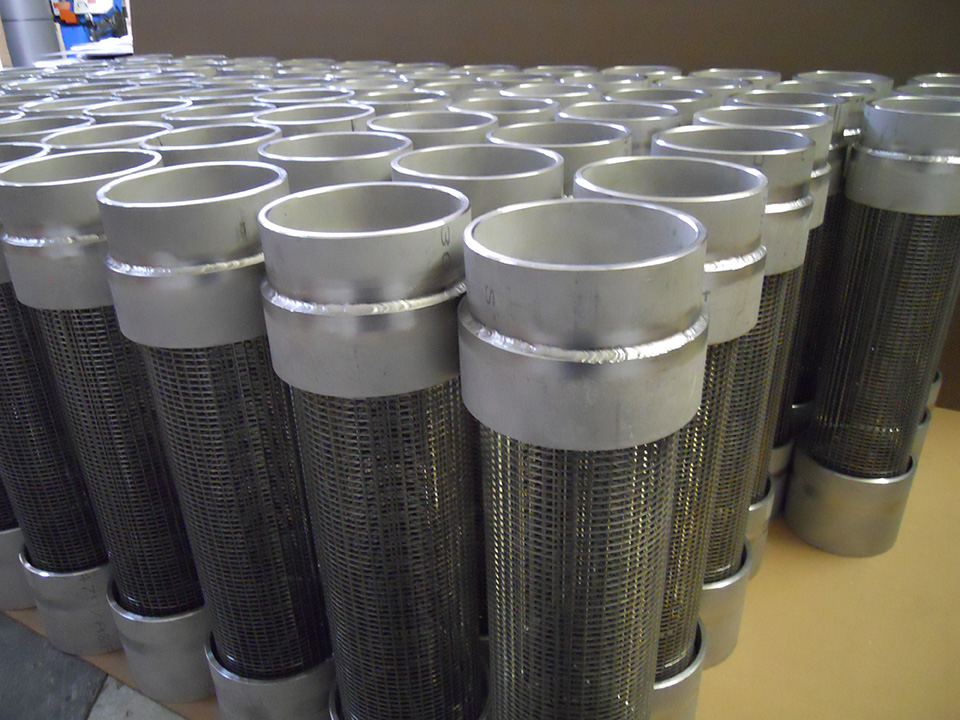

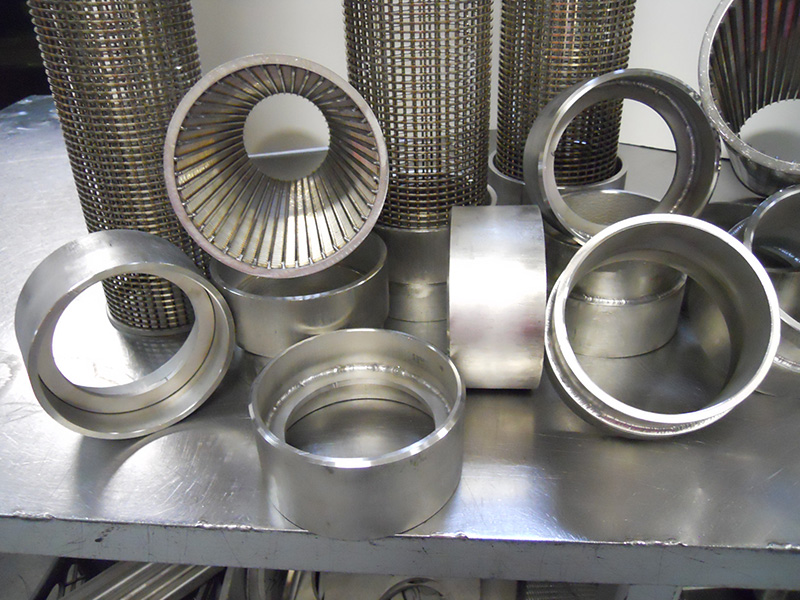

Wedge Wire SS Strainers with top and bottom enclosures

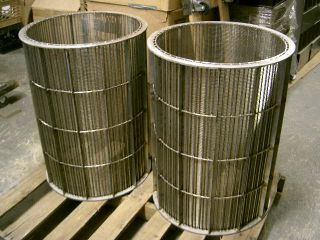

Wedge Wire Screen 1

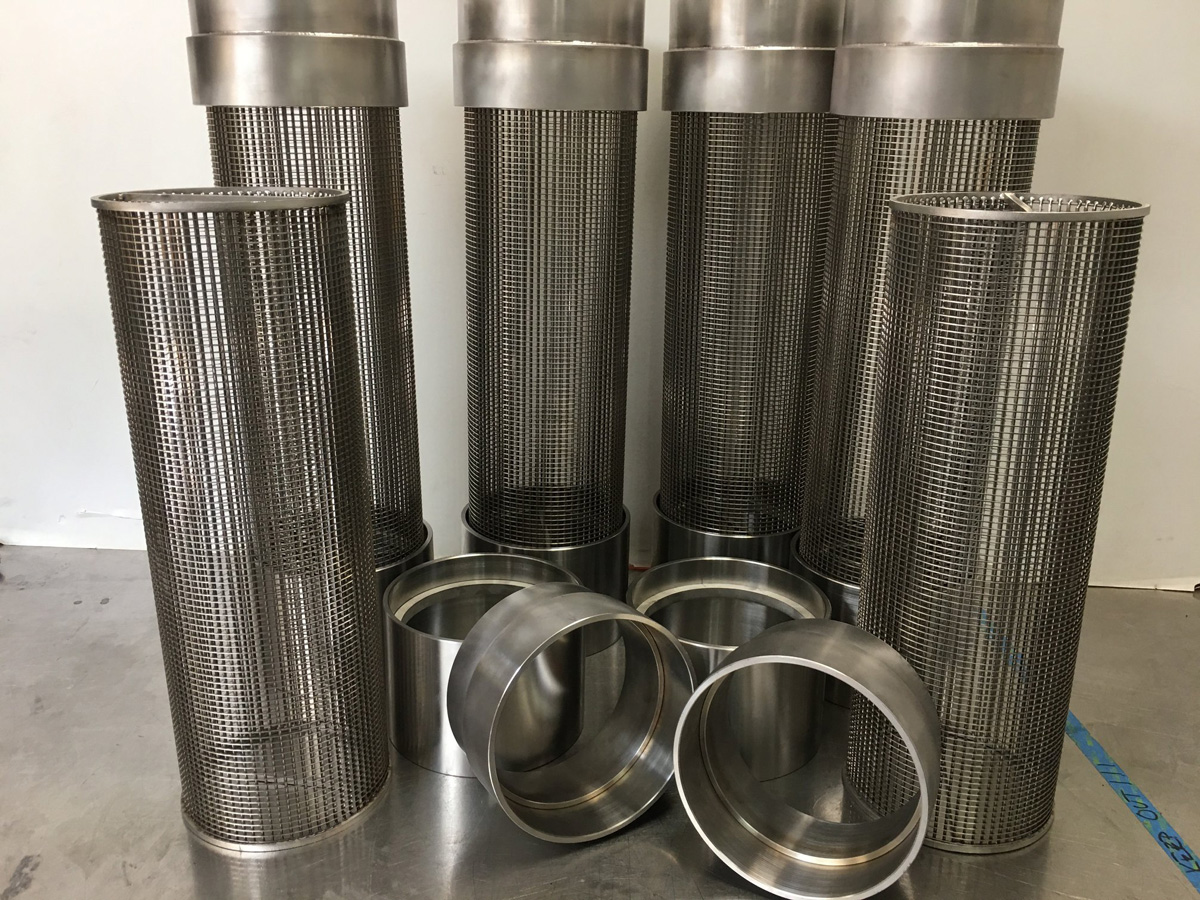

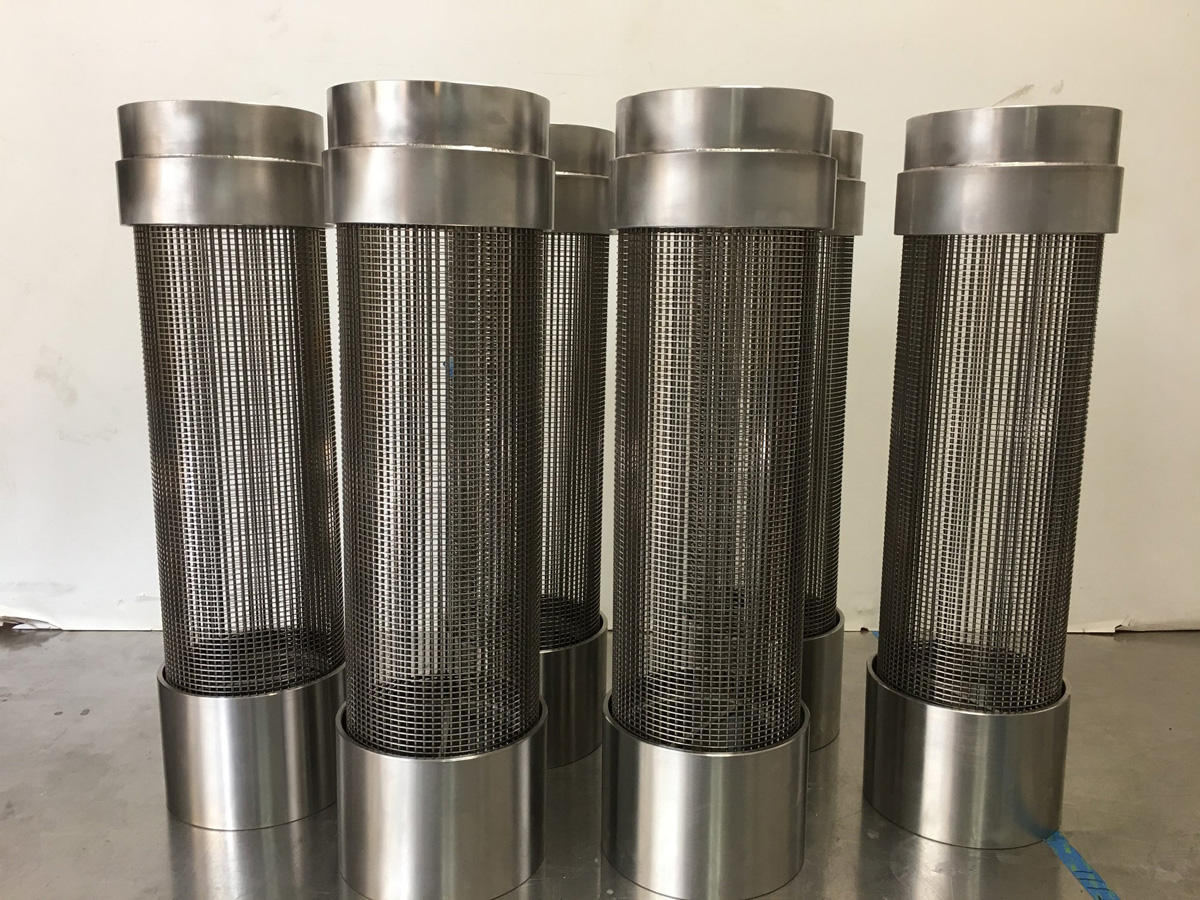

Heat Exchange Wedge Wire Stainless Steel 316 Strainers with Solid Top and Bottom Rings

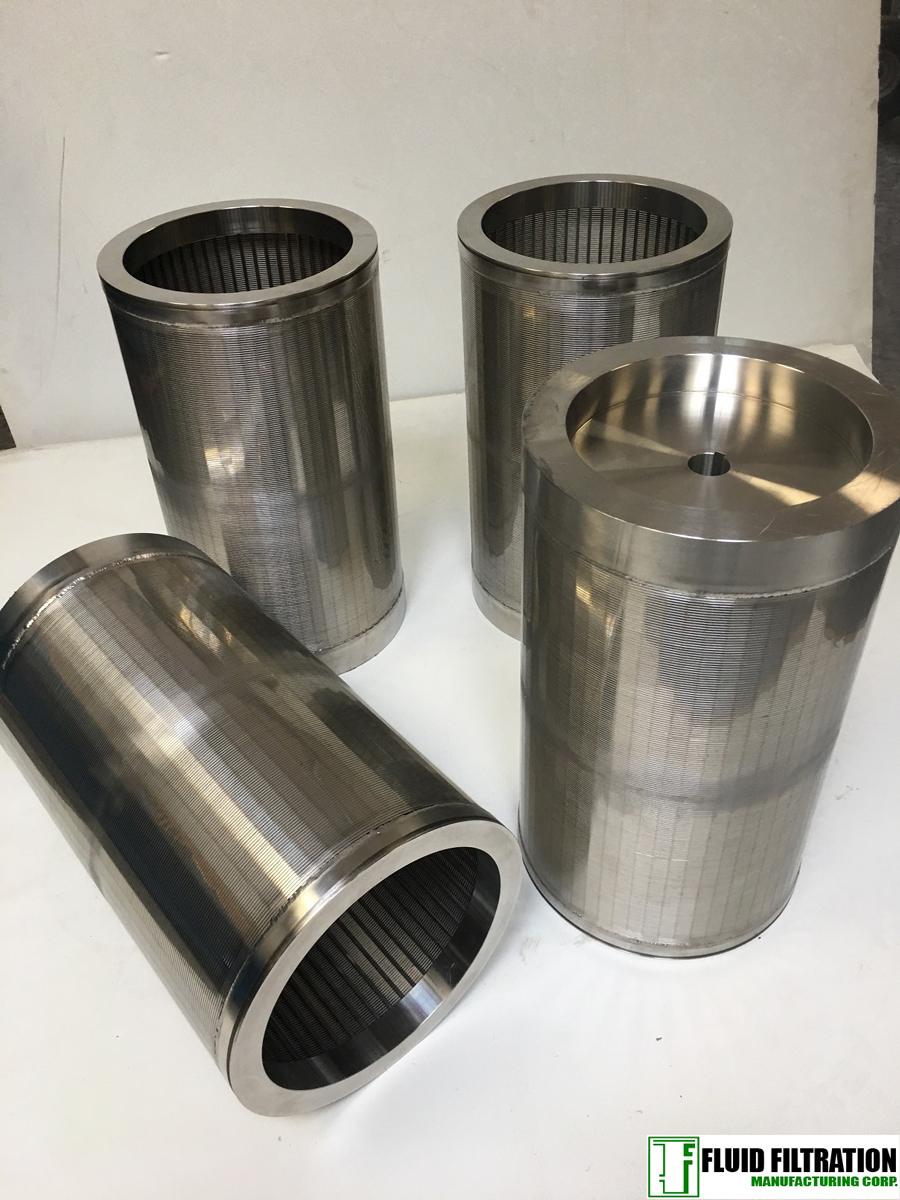

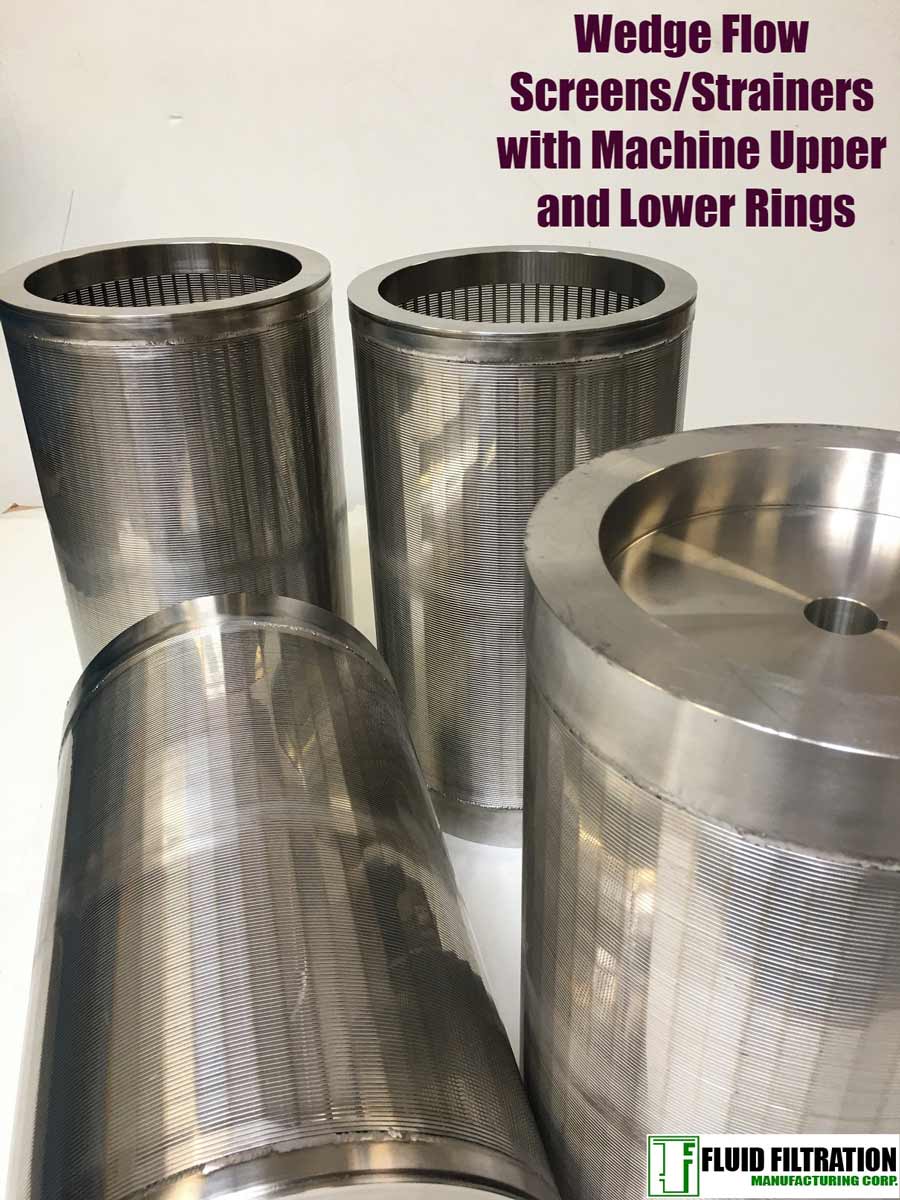

Wedge Flow Screens/Strainers with Machine Upper and Lower Rings

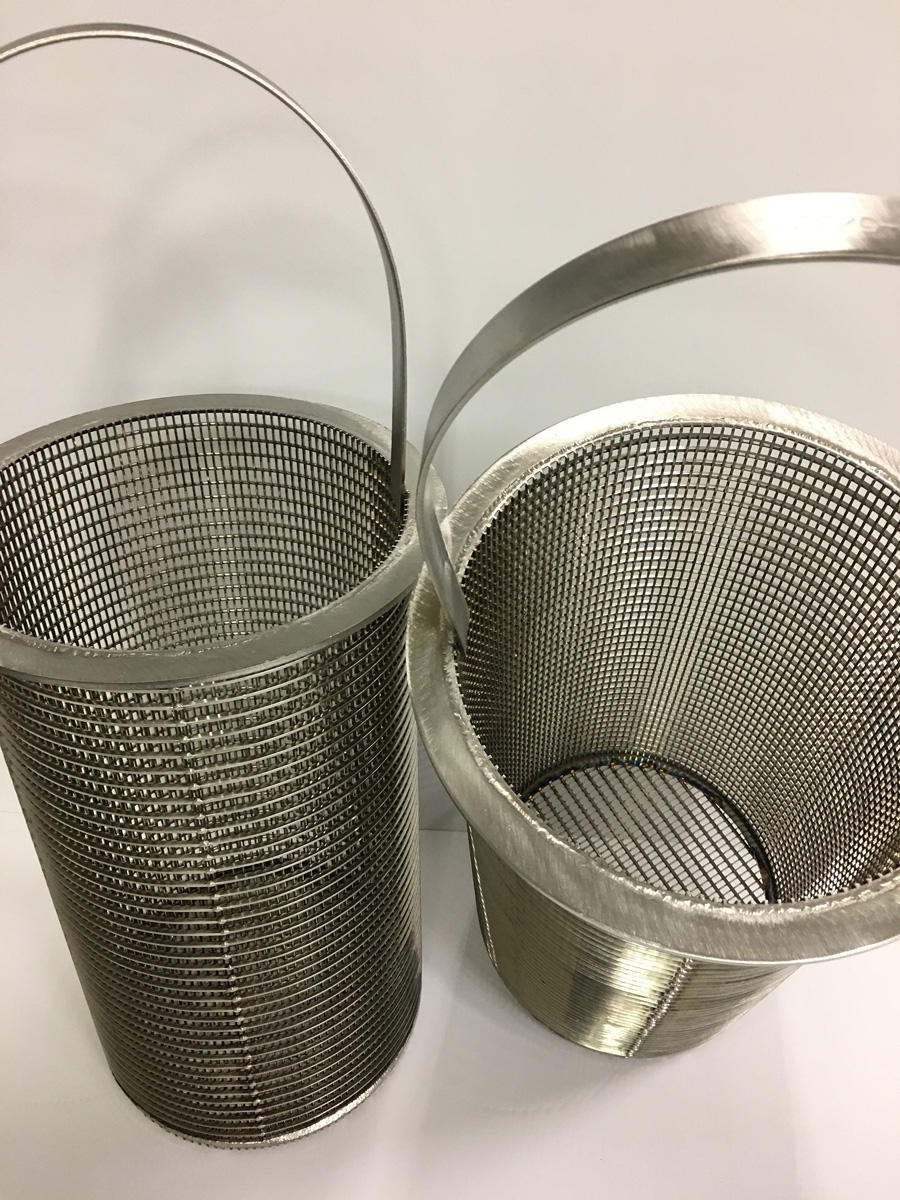

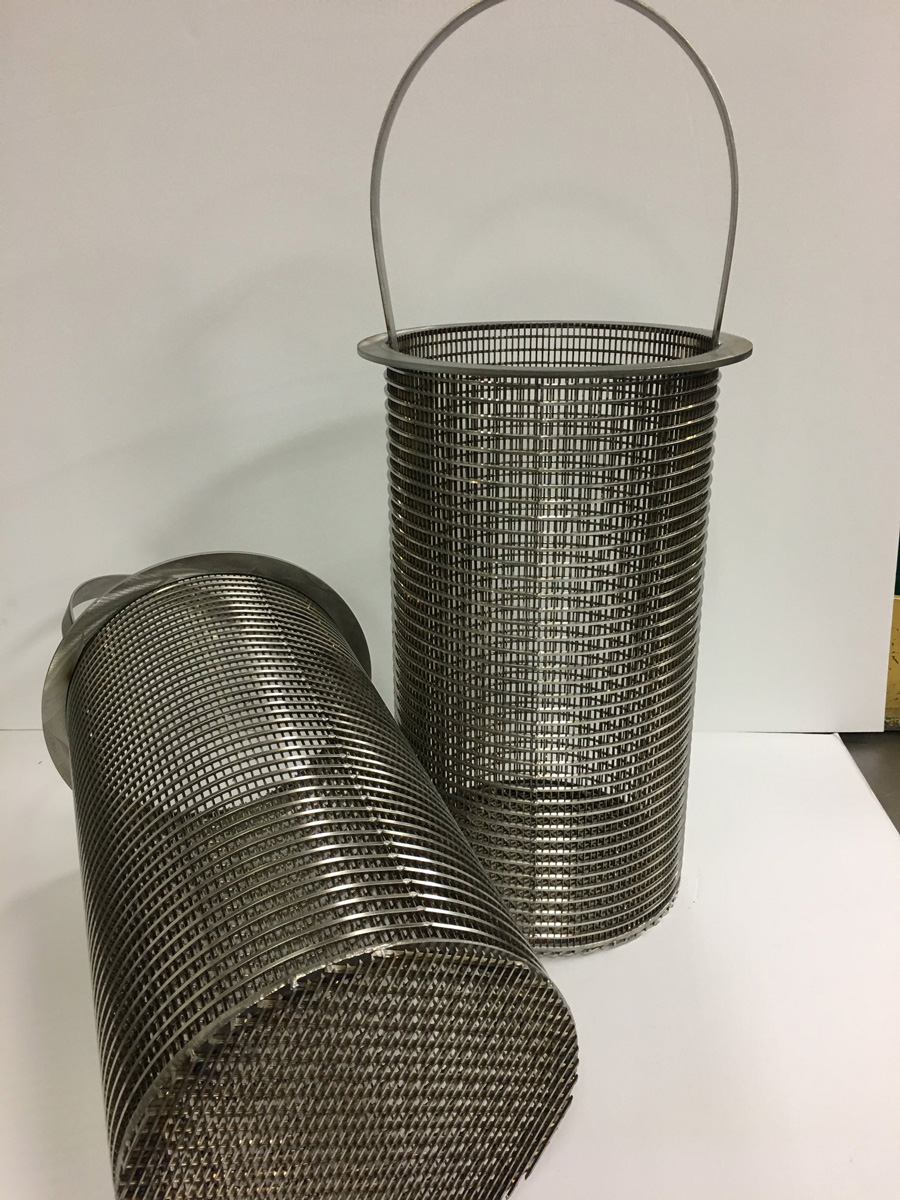

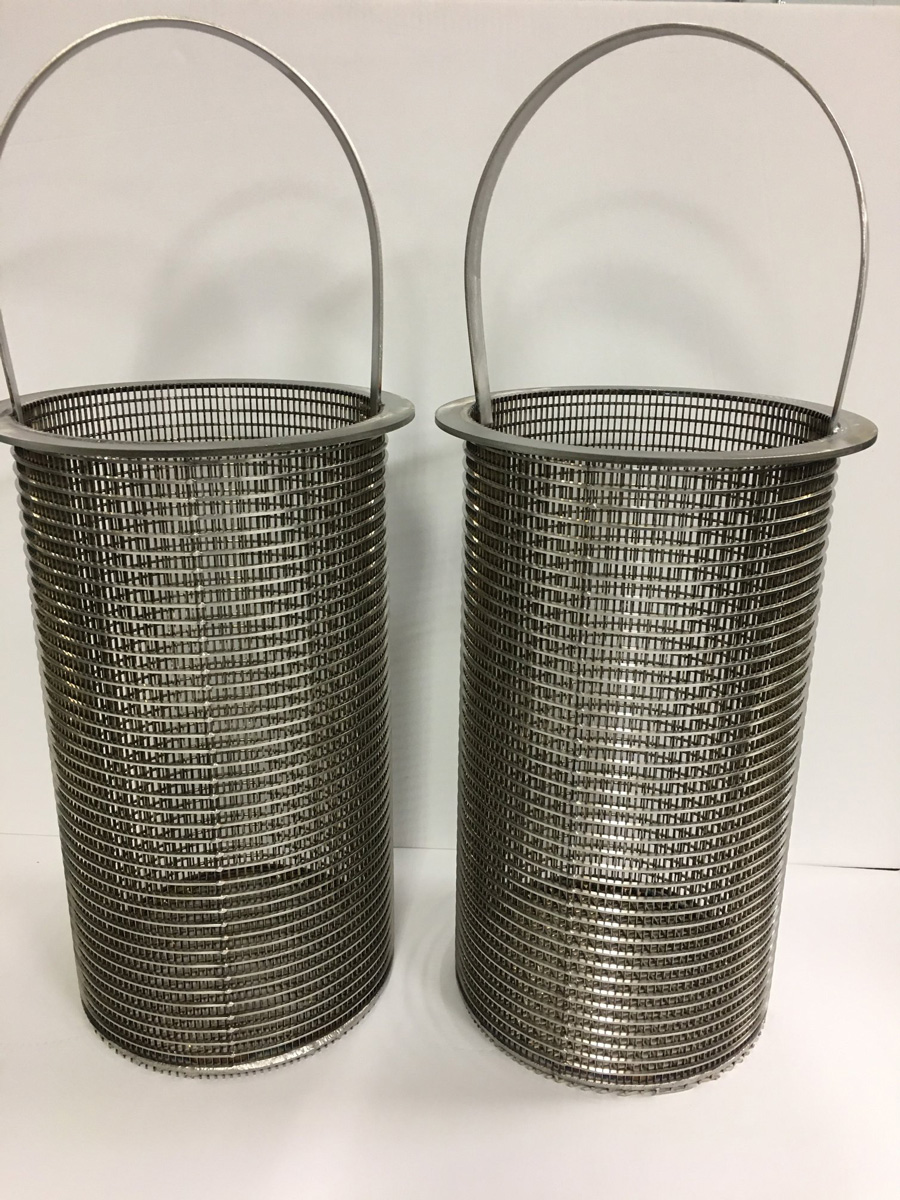

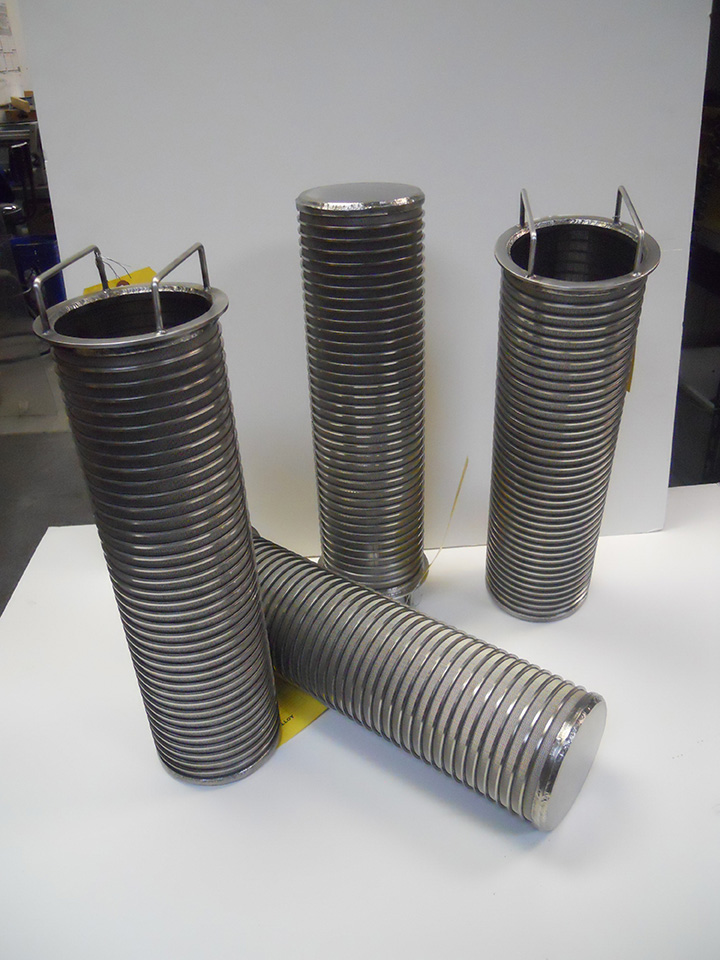

Wedge Wire/Wedge Flow Hastelloy C-276 basket strainers


Wedge Flow Screens/Strainers with Machine Upper and Lower Rings

Wedge Flow Screens/Strainers with Machine Upper and Lower Rings


Wedge Wire Screen 1

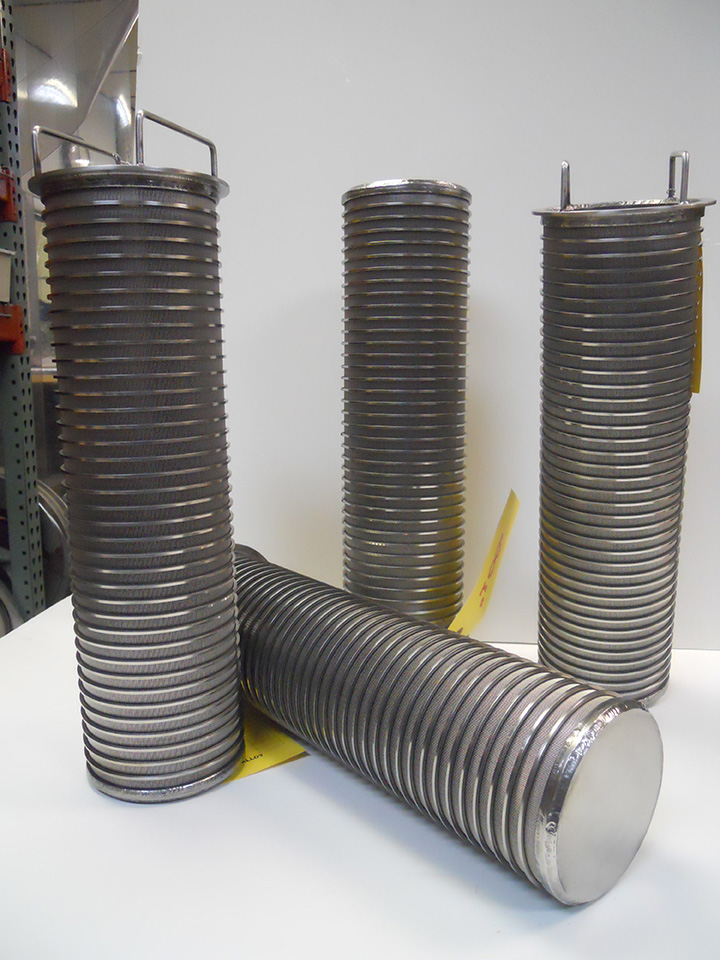

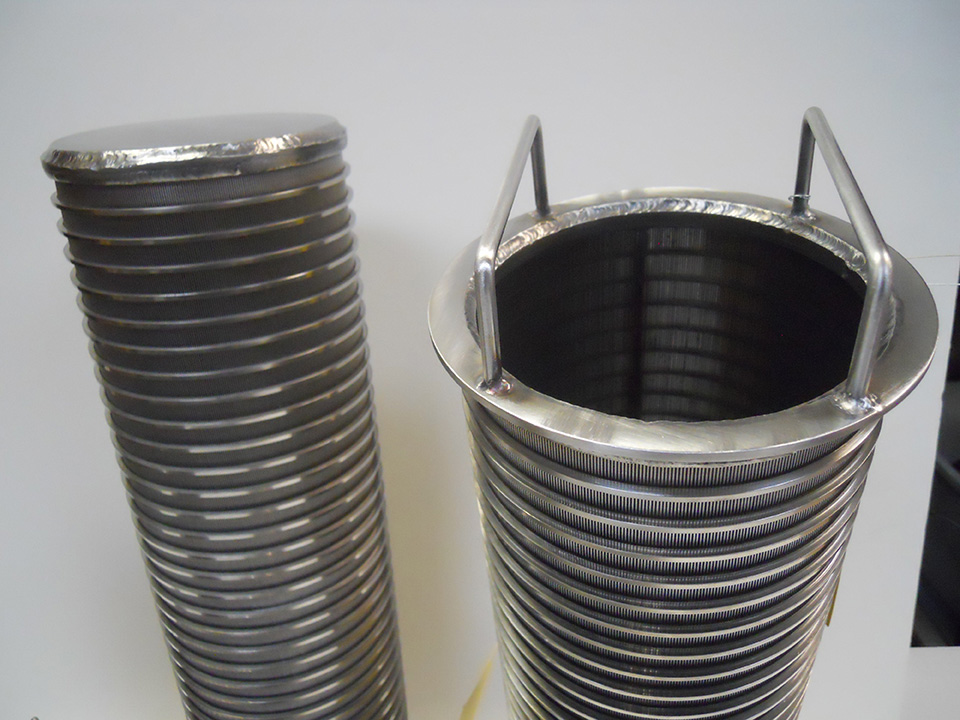

Hasteloy C 276 Wedge Wire Screens

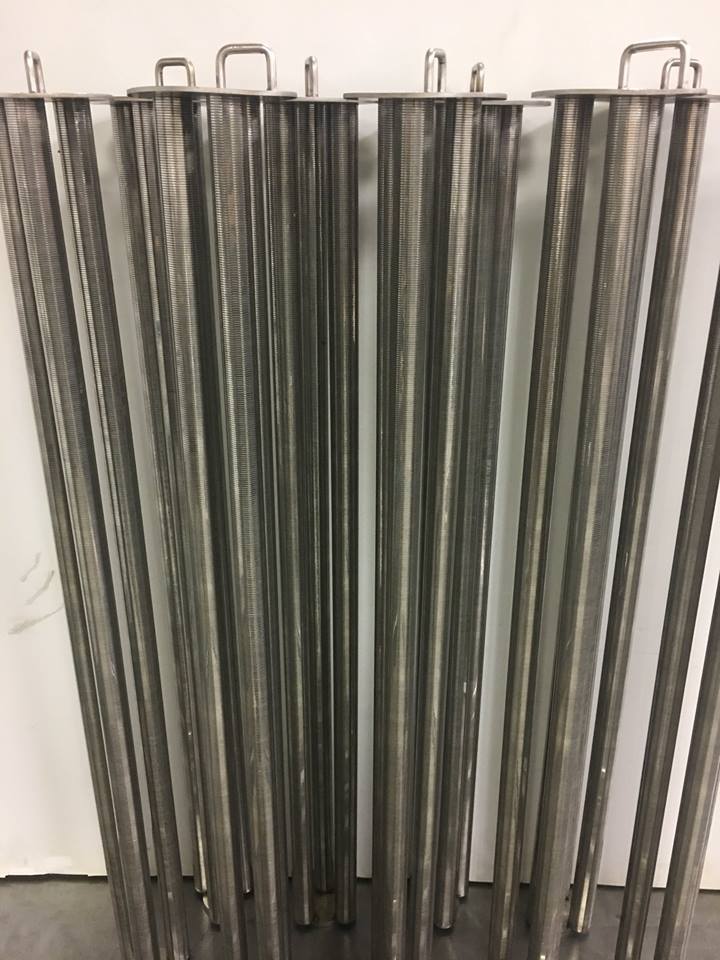

Ronningen-Petter

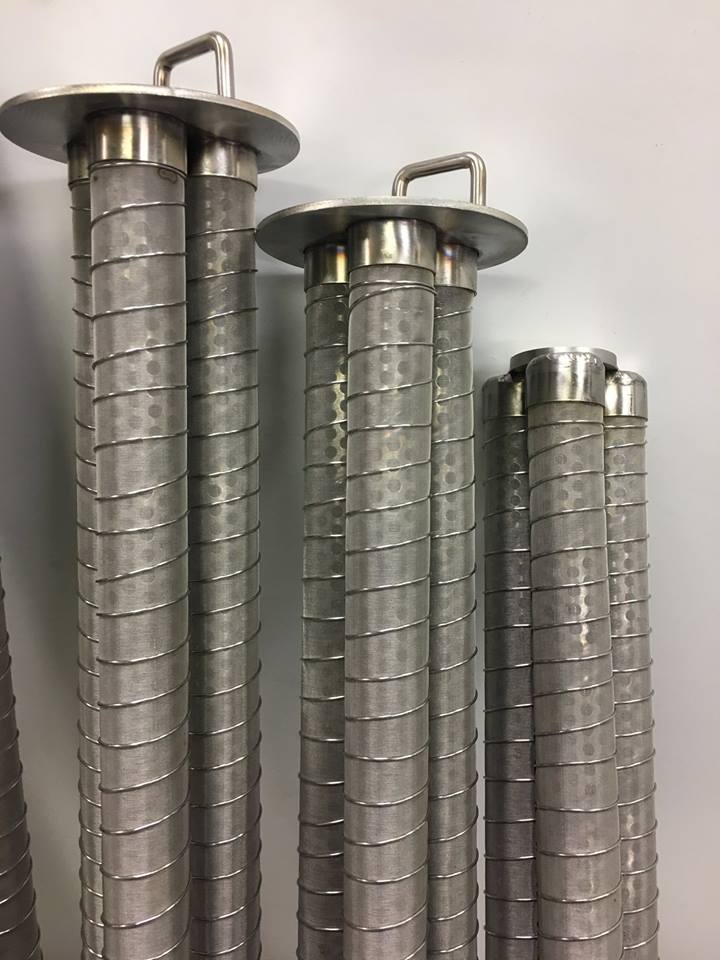

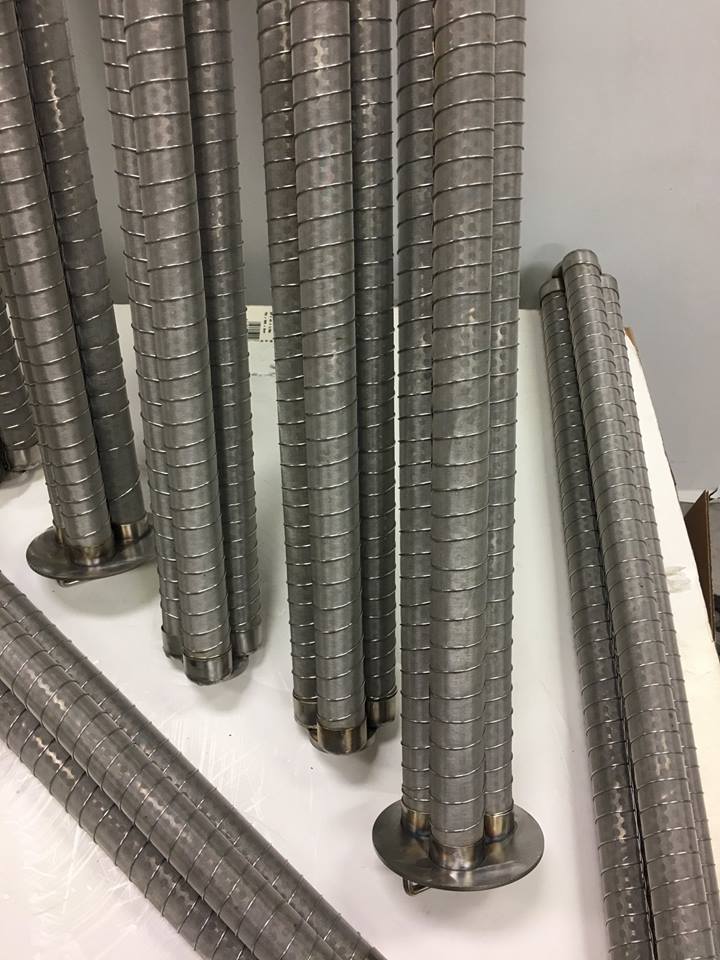

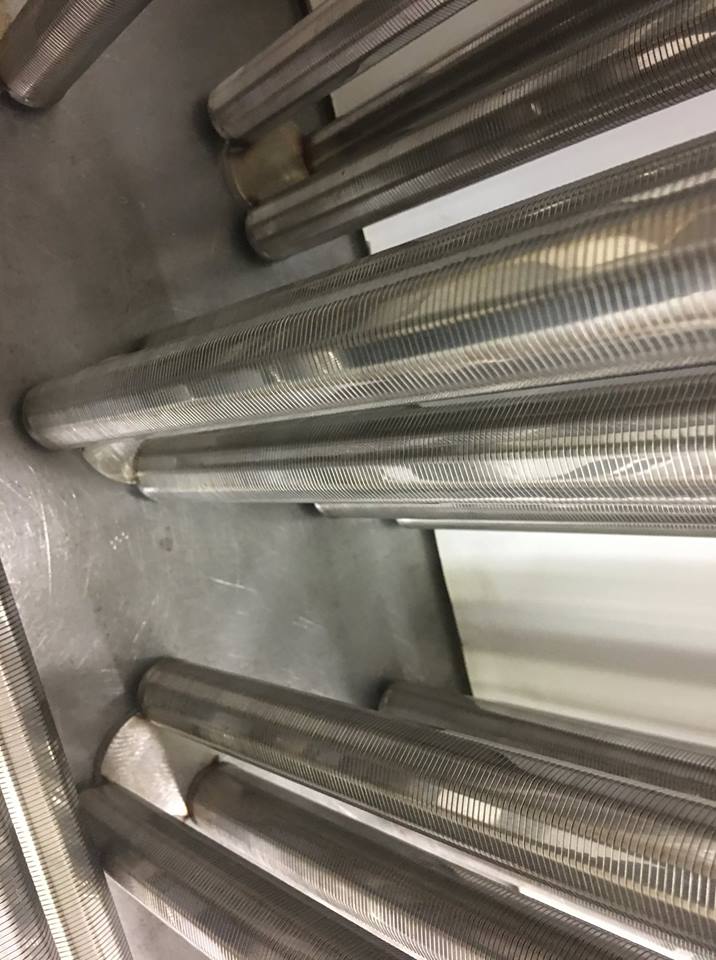

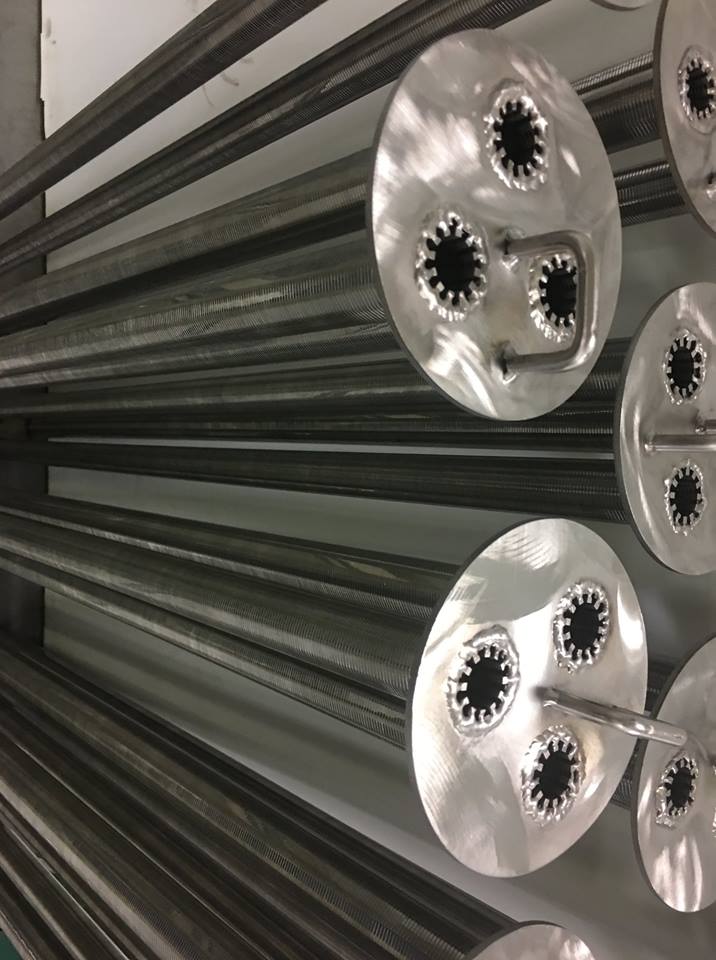

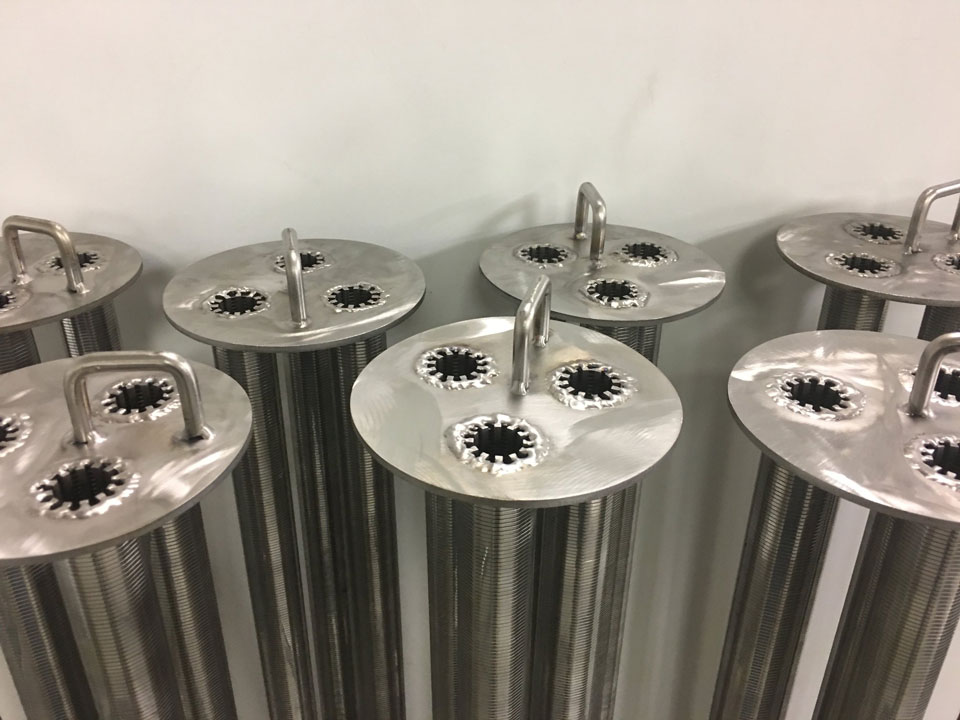

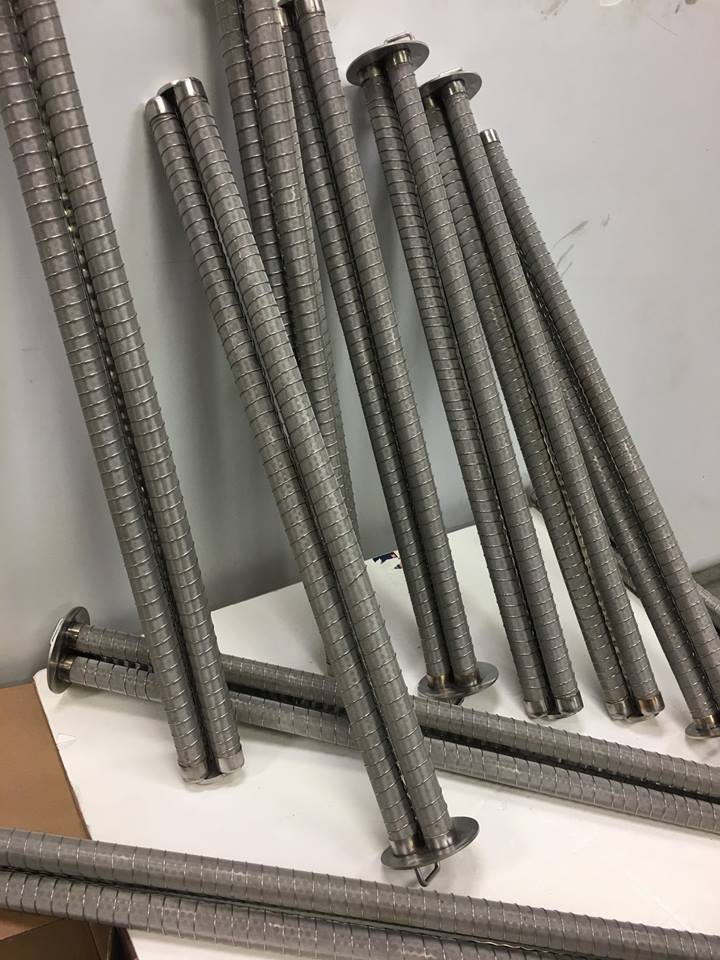

Ronningen-Petter Wedge Wire Screen


Wedge Wire Screen 1

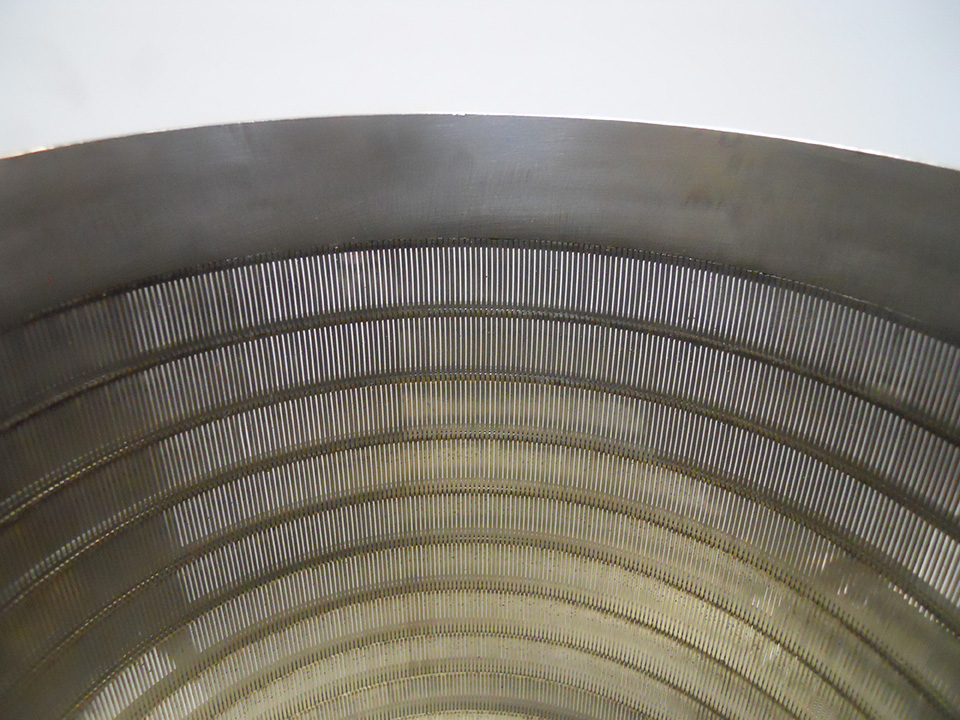

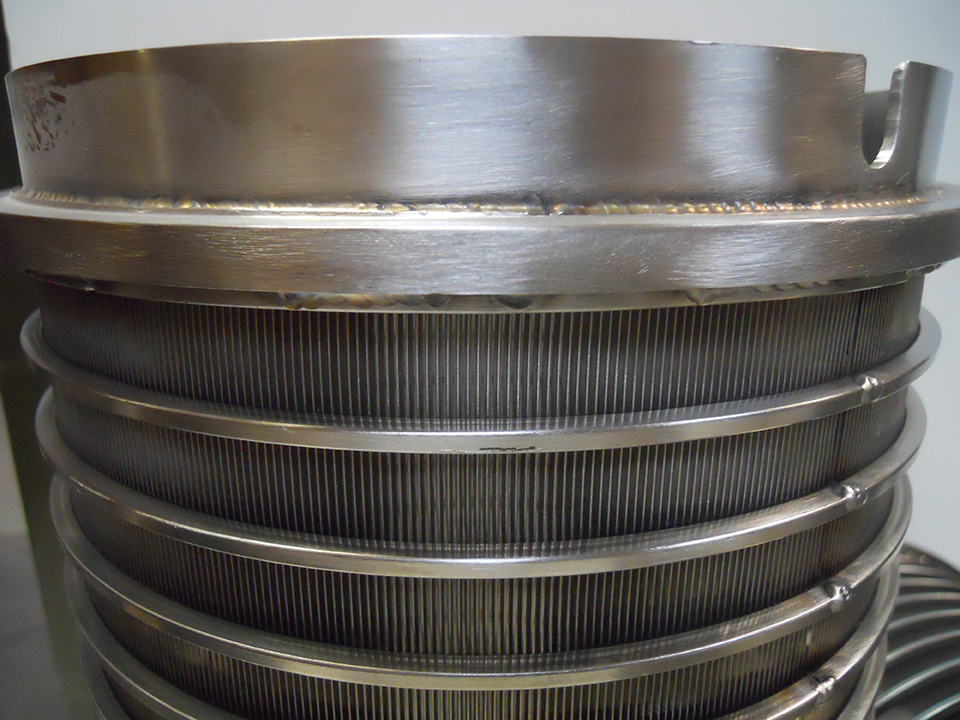

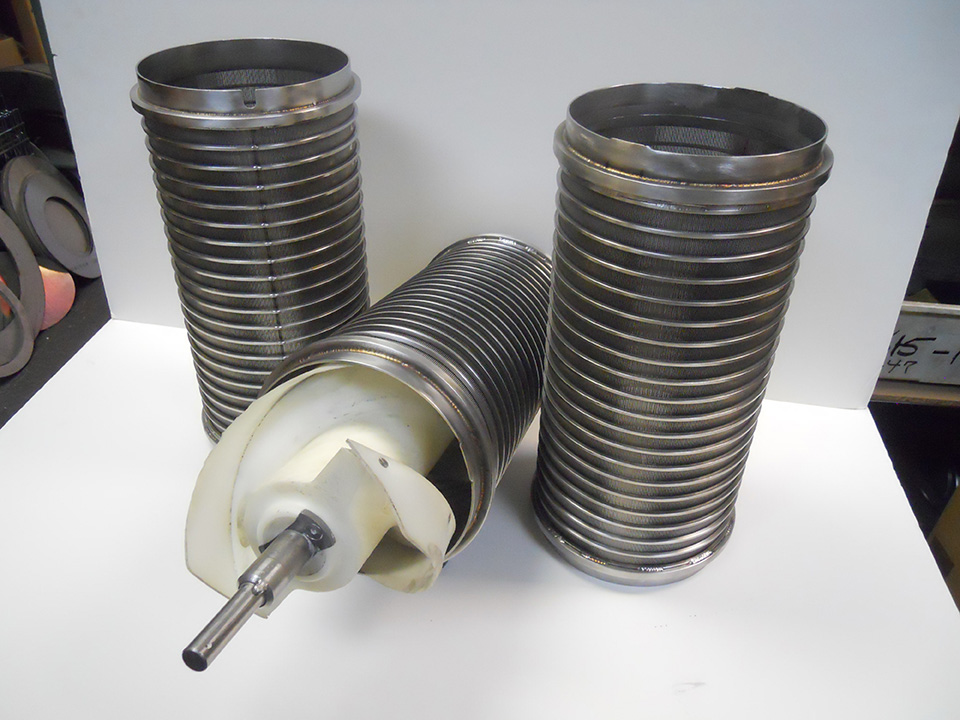

Russell Finex Wedge Wire Replacement Screen


Wedge Wire Screen 1

Wedge Wire Screens.


Wedge Wire Screen 2

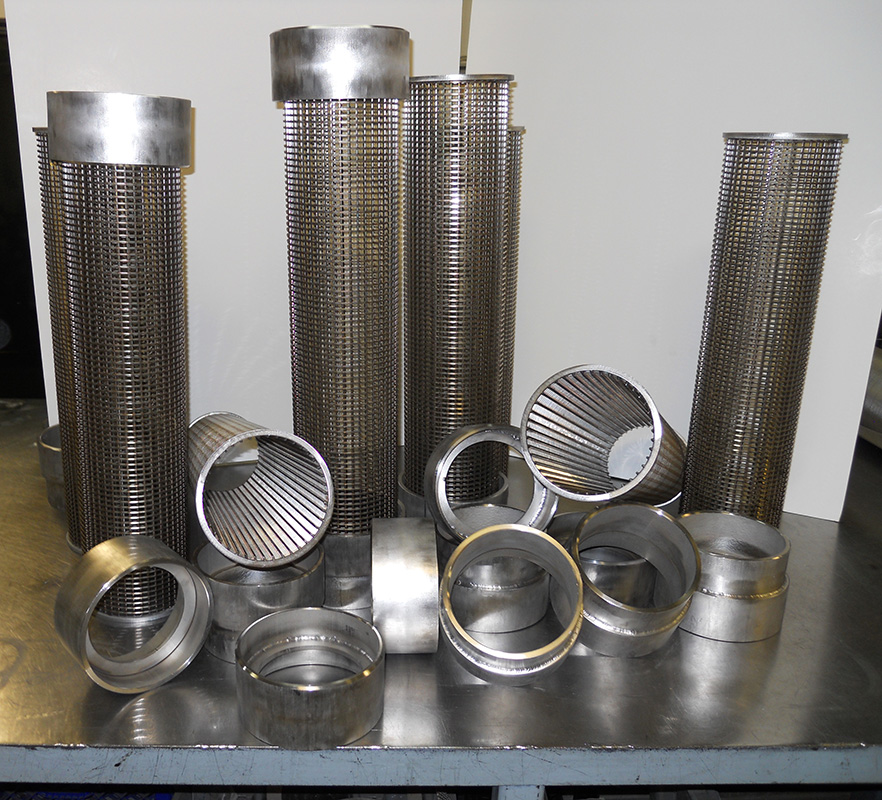

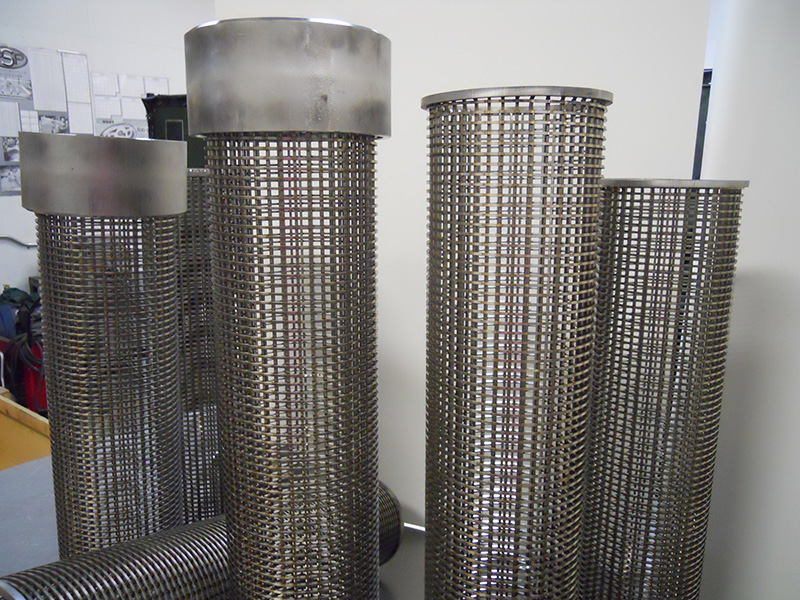

347 H Stainless Steel Wedge Wire Screens with solid tops and bottoms for Heat Exchanges


Wedge Wire Screen 2

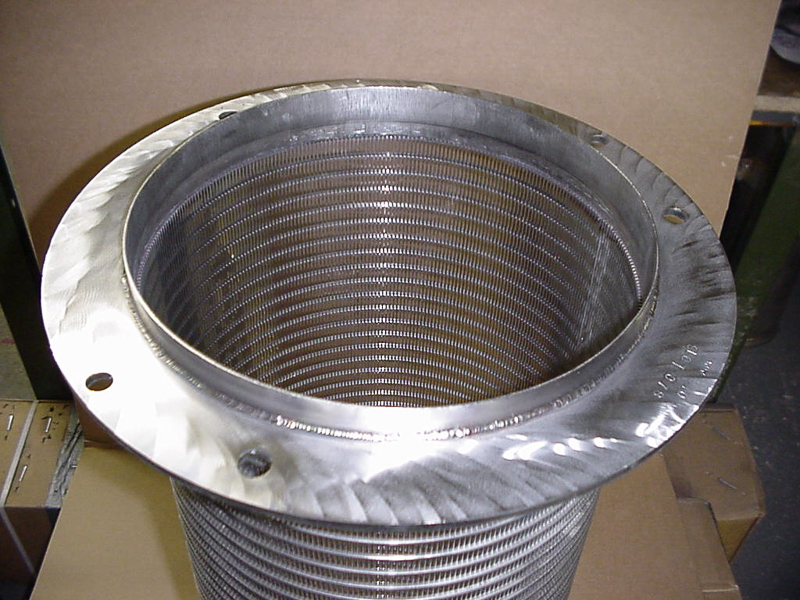

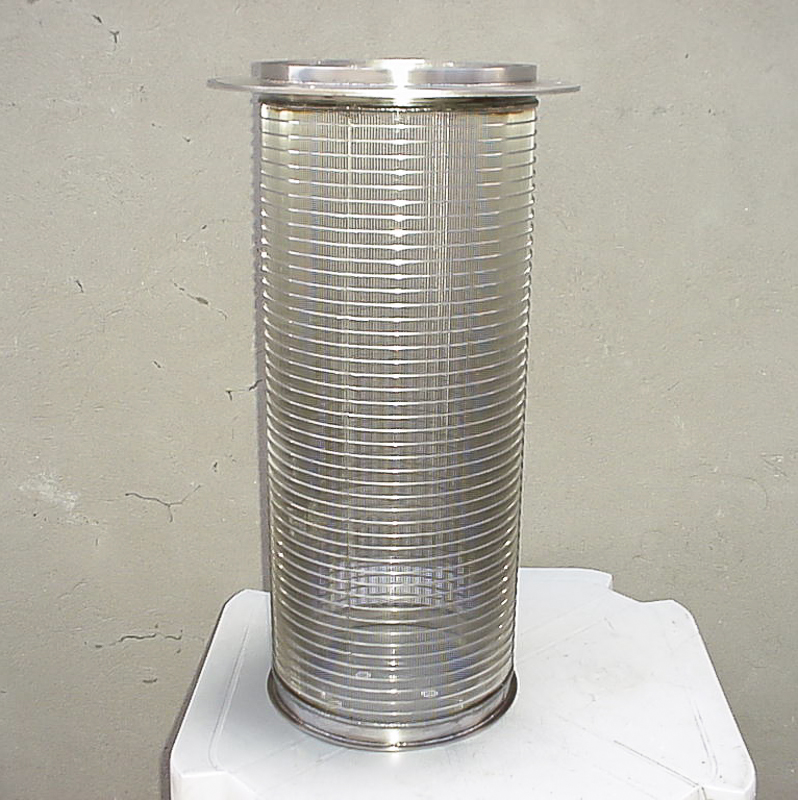

Stainless steel wedge wire flanged baskets.


Wedge Wire Screen 3

Stainless steel wedge wire open both ends screen.


Wedge Wire Screen 4

Stainless steel wedge wire open both ends screen with welded legs.


Suction Strainer 11

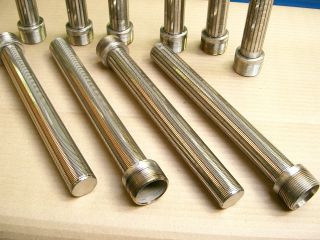

316 stainless steel wedge wires suction strainer with 1.5" male connection.
