Temporary Cone, Basket, and Plate/Flat type Strainers

Cone Type
Basket Type
Plate/Flat Type
Ring & Flange Finish

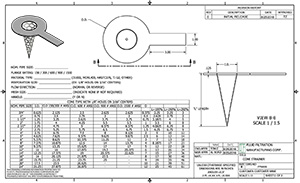

Click above to preview drawing

Conical & Basket strainers are designed to provide protection for expensive pumps, valves, meters and other mechanical equipments from foreign objects. They are installed between flanges and work as a temporary or permanent filtering devices.
Normally supplied with 1/8" dia. holes on 3/16" centers (available in most sizes with perforations & mesh).
Carbon steel, stainless steel and other alloys available.
For ring type joint- specify ring number & style.
When ordering, the following information should be specified: 1) Pipe size, 2) Pressure rating, 3) Perforation or mesh size, 4) Material, 5) Style.
Contact our engineering department for special designs or length.
Cone Strainer
SIZE 12"-600# DOUBLE ELEMENT CONE MESH LINED FOR NORMAL FLOW

Dimension: Style B-With 1/8" D. Holes on 3/16 Centers

Nominal Pipe Size	I.D.	150/300 # ANSI (O.D.)	600 # ANSI (O.D.)	900 # ANSI (O.D.)	1500 # ANSI (O.D.)	D	Standard L	L-150%	L-200%
3/4	5/8	2 1/8	2 1/2	2 5/8	2 5/8	3/8	2 1/4	2 1/4	3
1	3/4	2 1/2	2 3/4	3	3	1/2	2 5/8	2 3/4	3
1 1/2	1 1/4	3 1/4	3 5/8	3 3/4	3 3/4	3/4	3 3/16	4	5
2	1 3/4	4	4 1/4	5 1/2	5 1/2	1	3 1/2	6	8
2 1/2	2 1/4	4 3/4	5	6 3/8	6 3/8	1 1/4	4 1/16	6 1/4	8
3	2 3/4	5 1/4	5 3/4	6 1/2	6 3/4	1 1/2	4 1/4	6 3/4	9
4	3 3/4	6 3/4	7 1/2	8	8 1/8	2	5	10	12
5	4 5/8	7 5/8	9 3/8	9 5/8	9 7/8	2 1/2	6	12	14
6	5 3/8	8 5/8	10 3/8	11 1/4	11	3	7	13	18
8	7 3/8	10 7/8	12 1/2	14	13 3/4	4	8 3/16	17	23
10	9 3/8	13 1/4	15 5/8	17	17	5	12	22	28
12	11	16	17 7/8	19 1/2	20 3/8	6	13	26	34
14	12 1/4	17 3/8	19	20 3/8	22 5/8	7	15	27	36
16	14	20 1/8	21 7/8	22 1/2	-	8	17	30	40
18	15 3/4	21 1/4	23 3/4	25	-	9	19	35	46
20	17 1/2	23 1/2	26 5/8	-	-	10	21	39	51
24	21 1/4	27 7/8	30 7/8	-	-	12	25	45	61

All dimensions in inches - larger sizes available.

Cone strainers

All Stainless Steel 316 threaded, 1/8 perforated mesh lined cone strainers

Titanium perforated cones

Hastelloy C-276 Special Cone Type Strainers

SS316 Cone Type Strainers

RTJ Cone Type 316 Stainless Steel Perforated Witches Hat

Nichrome V Large Mesh Cone Strainers with 32' Bolted Flange

Stainless steel 1/8" perforated heavy duty cone type strainers with mesh liner

Brass/Copper cone strainers

Cone strainers

Heavy duty stainless steel 316, 20 x 20 mesh cone type strainers

Zirconium cone type strainers

Cone type flanged strainers

Reverse mesh lined outside cone type strainer

Perforated/Mesh type cone strainers

Size 24.0" cone type strainer with mesh liner outside

Size 20.0" stainless steel 150% open area cone type strainer with mesh liner outside

Hastelloy cone with support ring inside

RTJ and raised faced flanges are available

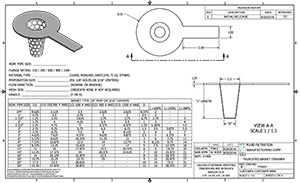

Click above to preview drawing

Conical & Basket strainers are designed to provide protection for expensive pumps, valves, meters and other mechanical equipments from foreign objects. They are installed between flanges and work as a temporary or permanent filtering devices.
Normally supplied with 1/8" dia. holes on 3/16" centers (available in most sizes with perforations & mesh).
Carbon steel, stainless steel and other alloys available.
For ring type joint- specify ring number & style.
When ordering, the following information should be specified: 1) Pipe size, 2) Pressure rating, 3) Perforation or mesh size, 4) Material, 5) Style.
Contact our engineering department for special designs or length.
Truncated Basket Strainer

Dimension: Style B-With 1/8" D. Holes on 3/16 Centers

Nominal Pipe Size	I.D.	150/300 # ANSI (O.D.)	600 # ANSI (O.D.)	900 # ANSI (O.D.)	1500 # ANSI (O.D.)	D	Standard L	L-150%	L-200%
3/4	5/8	2 1/8	2 1/2	2 5/8	2 5/8	3/8	2	-	-
1	3/4	2 1/2	2 3/4	3	3	1/2	2	-	-
1 1/2	1 1/4	3 1/4	3 5/8	3 3/4	3 3/4	3/4	2 3/4	-	3
2	1 3/4	4	4 1/4	5 1/2	5 1/2	1	3	-	4
2 1/2	2 1/4	4 3/4	5	6 3/8	6 3/8	1 1/4	3 3/16	-	4 1/2
3	2 3/4	5 1/4	5 3/4	6 1/2	6 3/4	1 1/2	3 1/2	3 7/8	5 1/2
4	3 3/4	6 3/4	7 1/2	8	8 1/8	2	4	5	7
5	4 5/8	7 5/8	9 3/8	9 5/8	9 7/8	2 1/2	5	6 3/8	9
6	5 3/8	8 5/8	10 3/8	11 1/4	11	3	6	7 3/4	11
8	7 3/8	10 7/8	12 1/2	14	13 3/4	4	6 1/8	9 3/4	14
10	9 3/8	13 1/4	15 5/8	17	17	5	7 1/2	12 3/8	18
12	11	16	17 7/8	19 1/2	20 3/8	6	9	14 3/4	20
14	12 1/4	17 3/8	19	20 3/8	22 5/8	7	10	15 7/8	21
16	14	20 1/8	21 7/8	22 1/2	-	8	10	18 3/8	23
18	15 3/4	21 1/4	23 3/4	25	-	9	12	20 7/8	27
20	17 1/2	23 1/2	26 5/8	-	-	10	14	23 1/2	31
24	21 1/4	27 7/8	30 7/8	-	-	12	16	28 3/8	37

All dimensions in inches - larger sizes available.

Stainless steel 1/8" perforated heavy duty basket type strainers.

Cone/Truncated tapered Stainless Steel three layer perforated/mesh strainers

All 316 Stainless Steel trancated strainers, 1/32" perforated

2.0" heavy duty temporary basket type strainers with laser cut flanges.

Heavy duty stainless steel 316, 1/8" perforated basket type strainers with removable perforated inner stainless steel inserts.

Truncated//Basket strainers with inner and outer cage.

Truncated mesh line strainers with support hoops on outside and serrated flange.

Ring-Type-Joint Stainless Steel high pressure basket strainers.

Stainless Steel strainers with Ring-Type-Joint for reverse flow

Stainless Steel 150lb flange truncated strainers

Size 20.0"/25.0" truncated basket strainers with mesh lined outside.

Double screen stainless steel 316 truncated strainers.

Heavy duty 316 stainless steel temporary cone basket type straine with double mesh outside for reverse flow. With support rings on outter basket to prevent mesh tears/rips under high pressure with support rings inside.

RTJ and raised faced flanges are available.

Normally supplied with 1/8" dia. holes on 3/16" centers(available in most sizes with perforations & mesh).
Carbon steel, stainless steel and other alloys available.
For ring type joint- specify ring number & style.
When ordering, the following information should be specified: 1) Pipe size, 2) Pressure rating, 3) Perforation or mesh size, 4) Material, 5) Style.
Contact our engineering department for special designs or length.

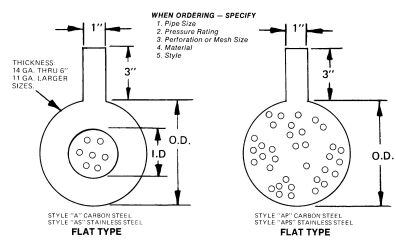

Dimension 1/8" D. Holes on 3/16" Centers

Nominal Pipe Size	I.D.	150/300 # ANSI (O.D.)	600 # ANSI (O.D.)	900 # ANSI (O.D.)	1500 # ANSI (O.D.)
3/4	3/4	2 1/8	2 1/2	2 5/8	2 5/8
1	1	2 1/2	2 3/4	3	3
1 1/2	1 1/2	3 1/4	3 5/8	3 3/4	3 3/4
2	2	4	4 1/4	5 1/2	5 1/2
2 1/2	2 1/2	4 3/4	5	6 3/8	6 3/8
3	3	5 1/4	5 3/4	6 1/2	6 3/4
4	4	6 3/4	7 1/2	8	8 1/8
5	5	7 5/8	9 3/8	9 5/8	9 7/8
6	6	8 5/8	10 3/8	11 1/4	11
8	8	10 7/8	12 1/2	14	13 3/4
10	10	13 1/4	15 5/8	17	17
12	12	16	17 7/8	19 1/2	20 3/8
14	13 1/4	17 3/8	19	20 3/8	22 5/8
16	15 1/4	20 1/8	21 7/8	22 1/2	-
18	17 1/4	21 1/4	23 3/4	25	-
20	19 1/4	23 1/2	26 5/8	-	-
24	23 1/4	27 7/8	30 7/8	-	-

All dimensions in inches - larger sizes available.

Stainless steel temporary flat strainers.

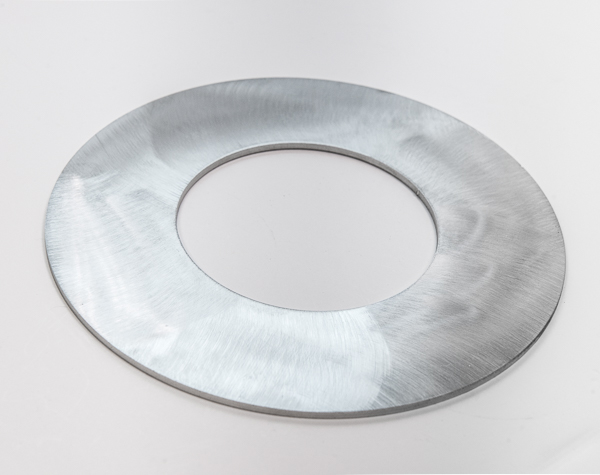

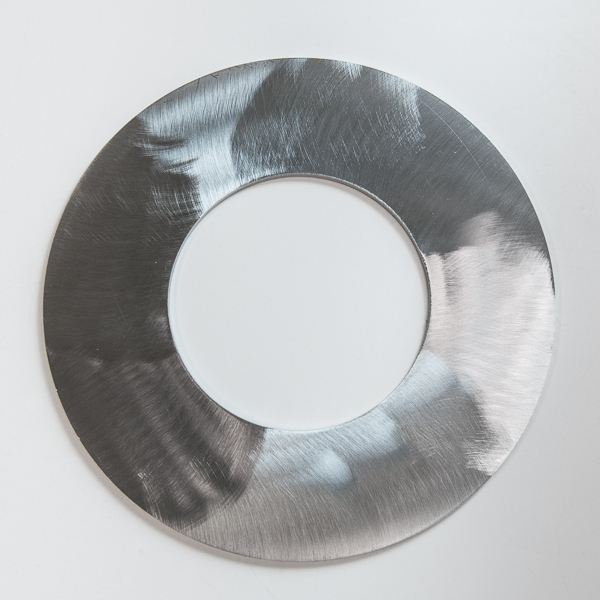

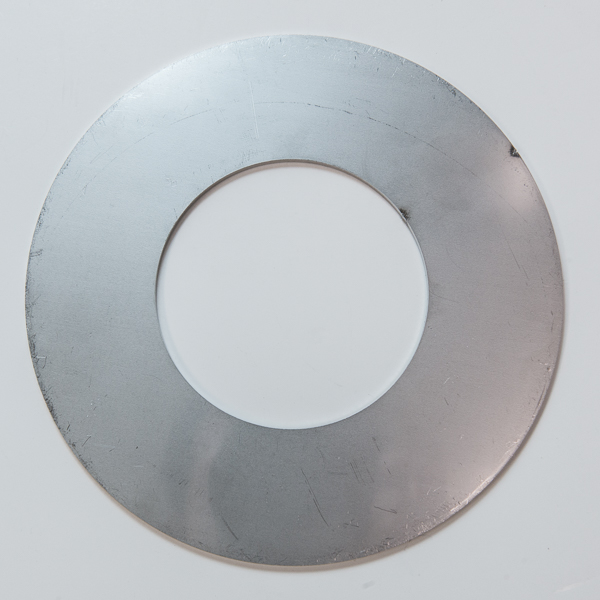

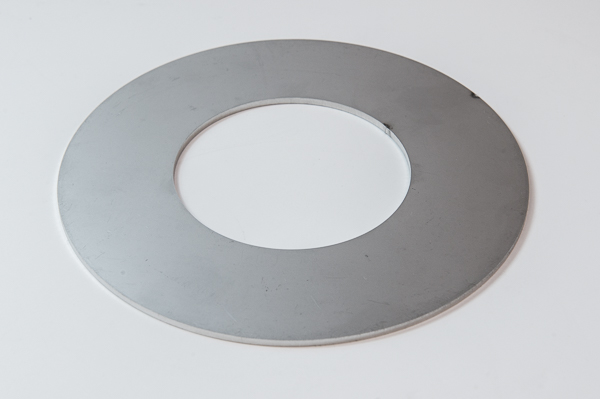

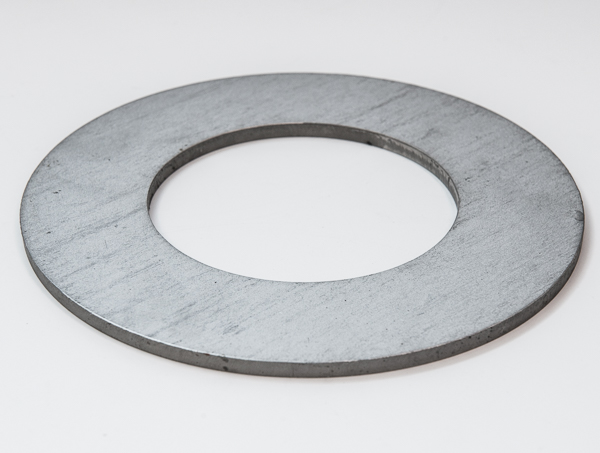

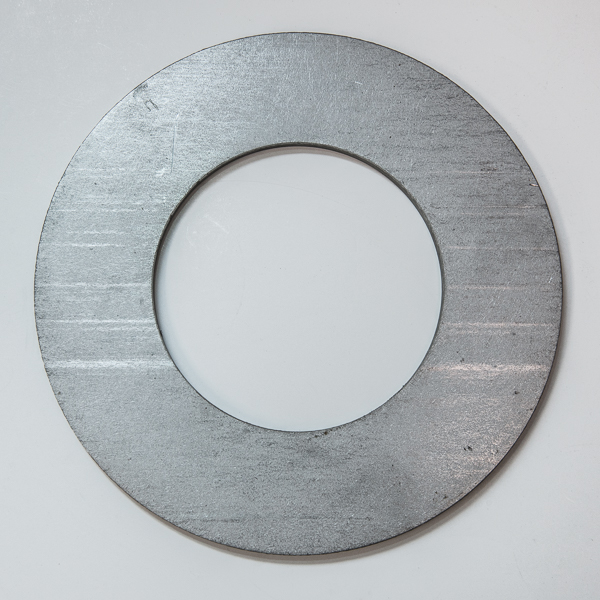

MILL FINISH Some scale and light rust may be apparent.	MILL POLISH Standard smooth finish by mill for 304 & 316 grades.	FACTORY POLISH A non-concentric, abrasively machined surface with flat, parallel finish. 63-125 AARH.

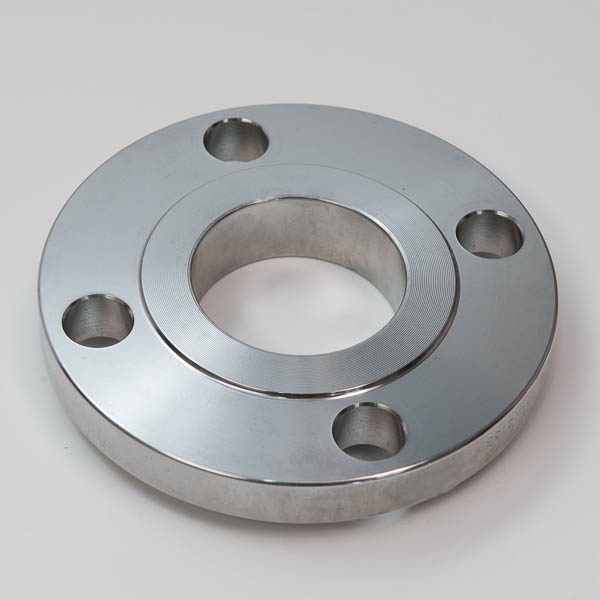

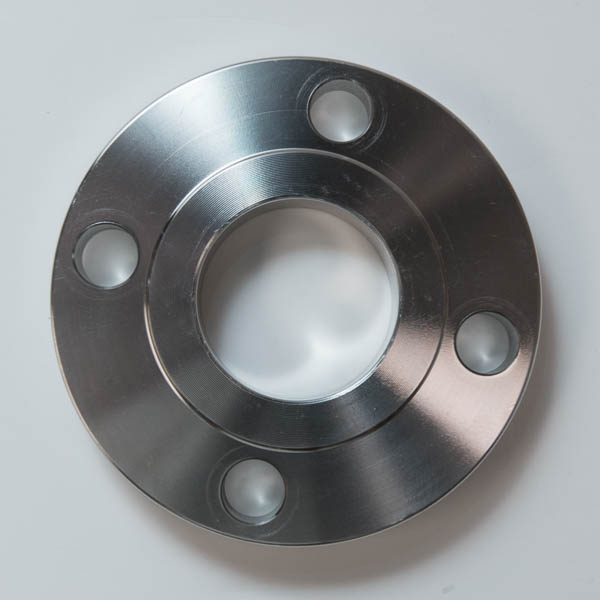

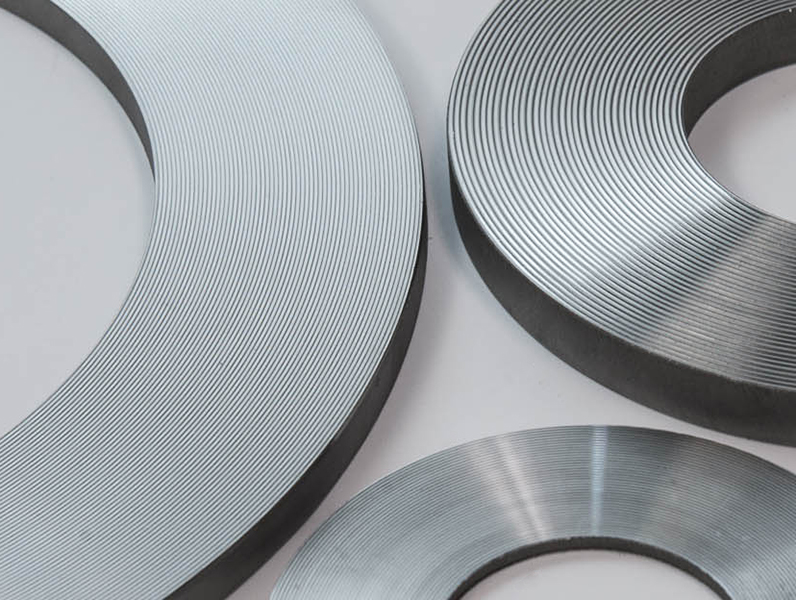

SERRATED SPIRAL / SERRATED CONCENTRIC MACHINED Flange finish to be 125-500 AARH with serrated spiral surface finish.	RAISED FACED FLANGE Standard ANSI fange with smooth serrated finish.

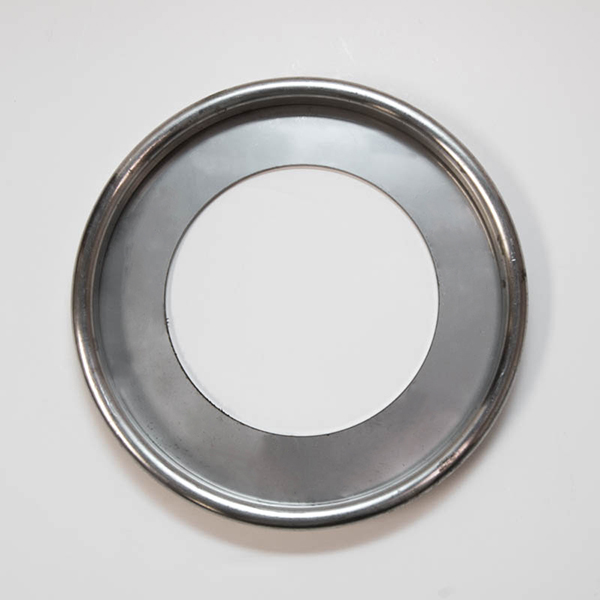

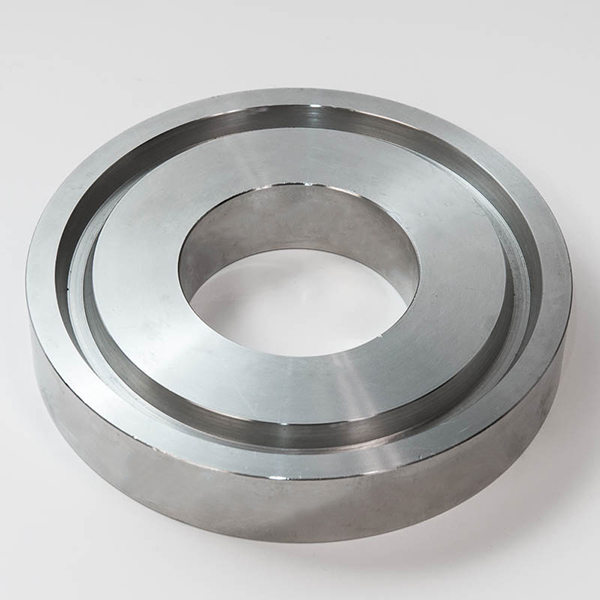

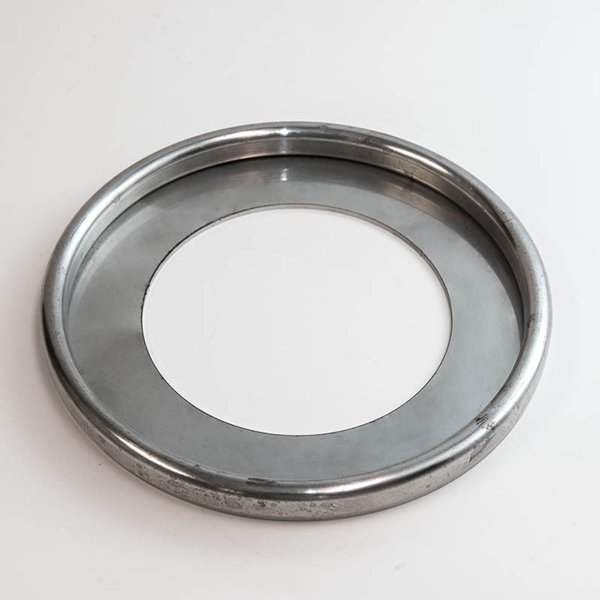

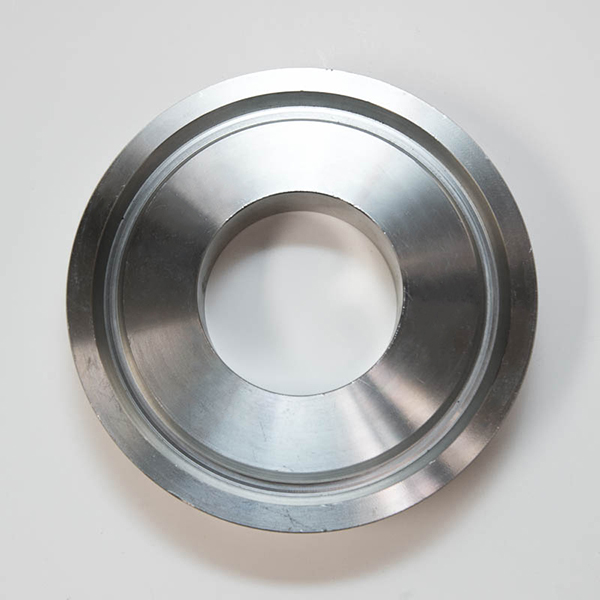

RING TYPE JOINT MALE Standard finish is smooth machined surface with maximum roughness of 63 AARH.	RING TYPE JOINT FEMALE Standard finish is smooth machined surface with maximum roughness of 63 AARH.

All Dimensions Per ASME B16.5

Notes:	1.	For use with Flat or Raised Face Flanges
	2.	Standard rings are Factory Polish 63-125 AARH. For any other surface finish, customer must specify.
	3.	Avaialable with Serrated Spiral surface finish and Ring Type Joint
