Fabricated & Custom Strainer Products



We can engineer, design and fabricate a strainer to satisfy a specific requirement. The items illustrated below represent only a few of the almost limitless fabricated shapes and sizes of strainers which we can supply.

  • Simplex & Duplex Strainers
  • Pleated Strainers
  • Suction Strainer
  • Static Mixer
  • Custom Products

Click above to preview all drawings

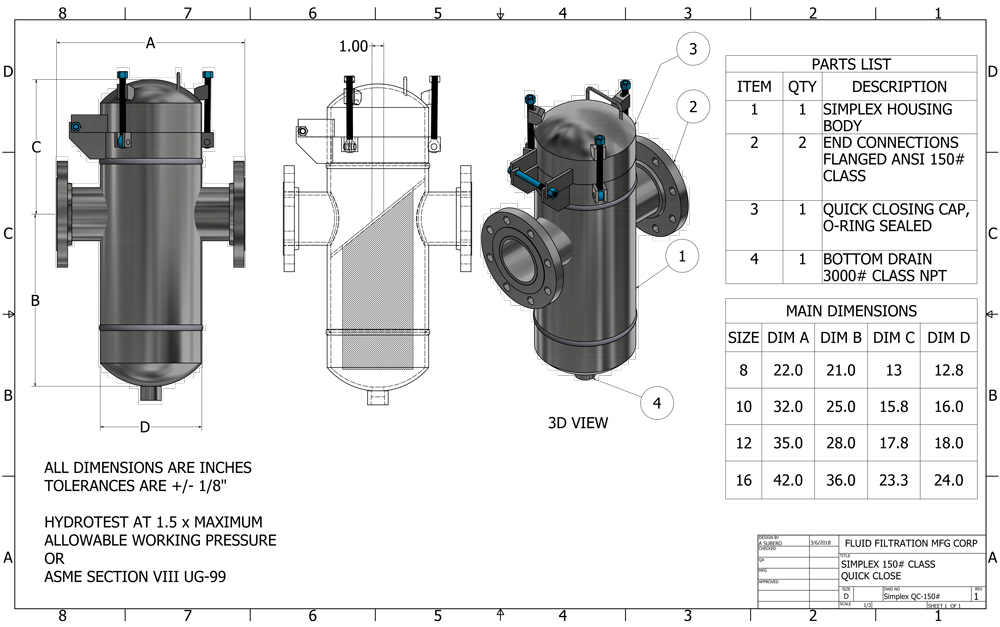

Simplex 150# Class Quick Close(revised)

Simplex Strainer 1

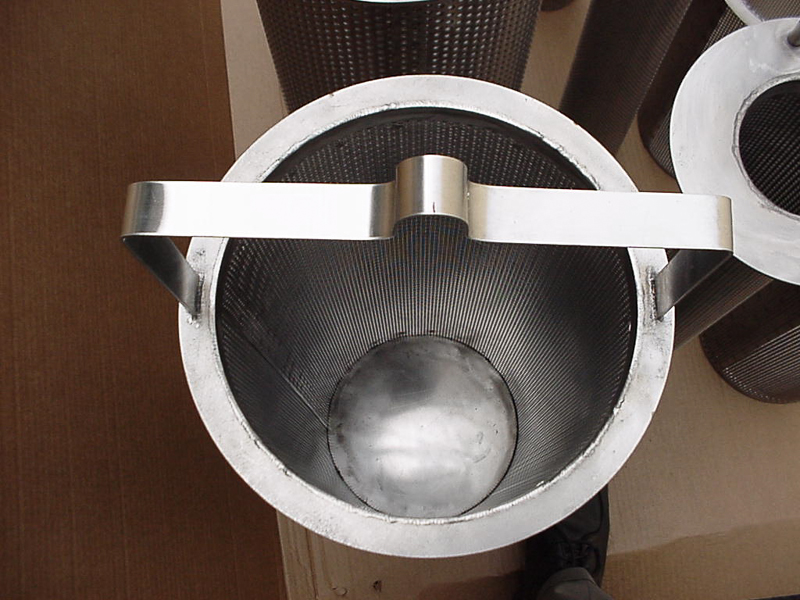

Stainless Steel 316 Housing with Inverted Cone Type Inner Screen.


Simplex Strainer 1

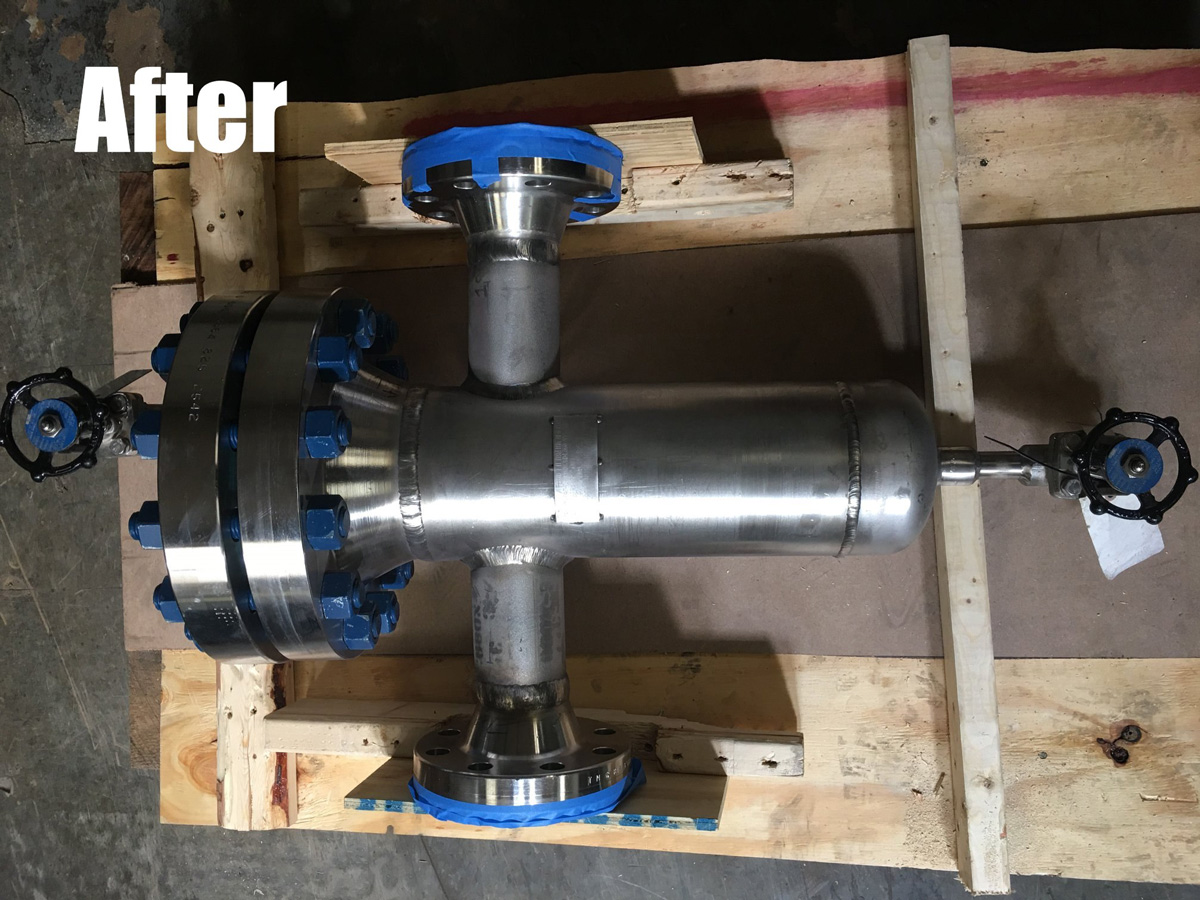

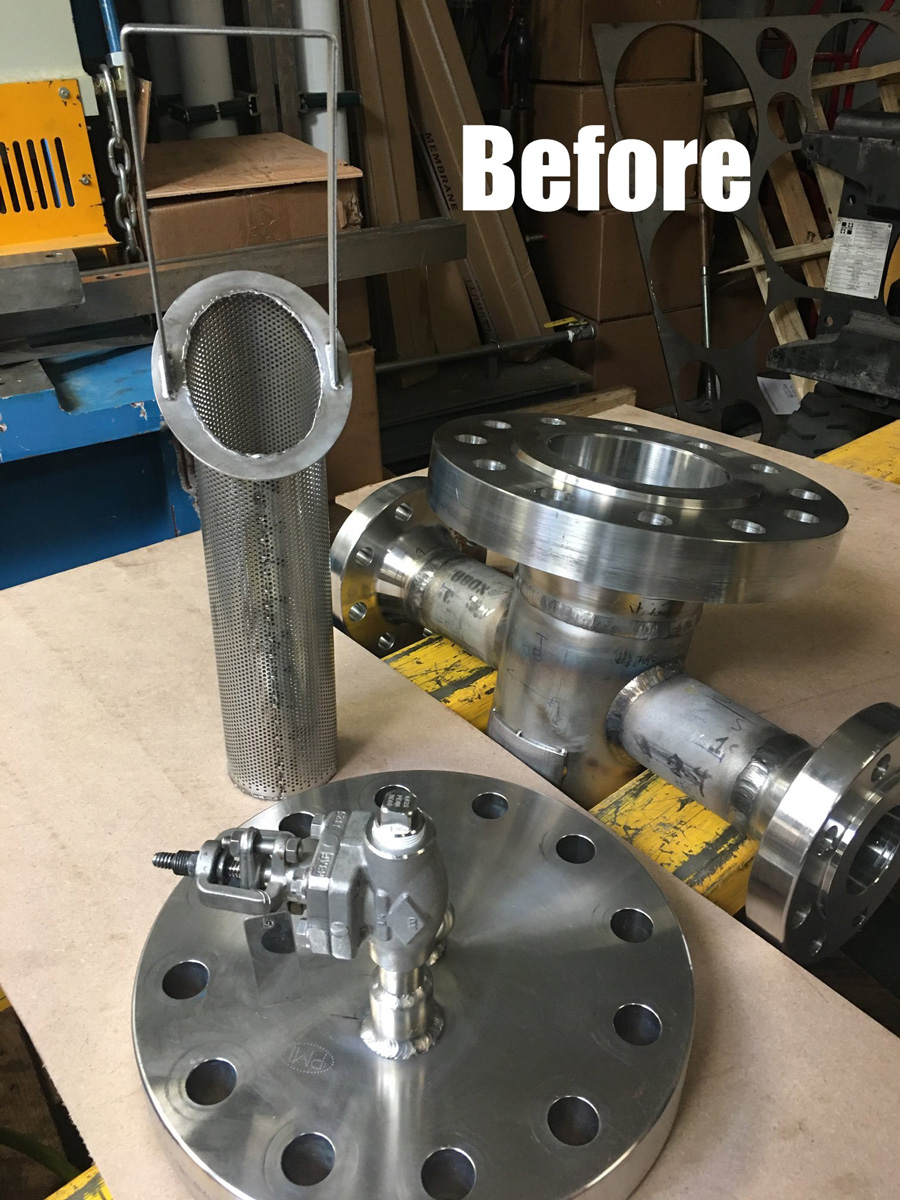

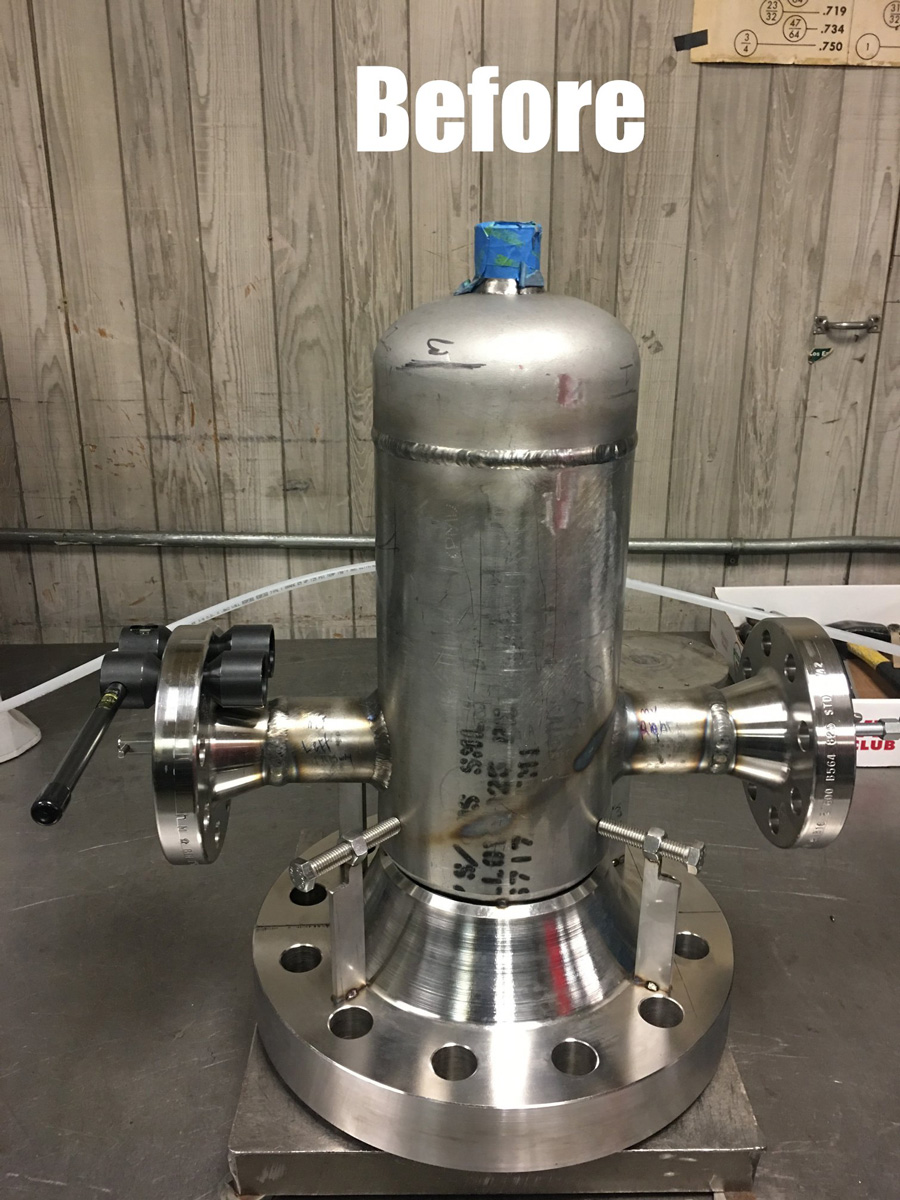

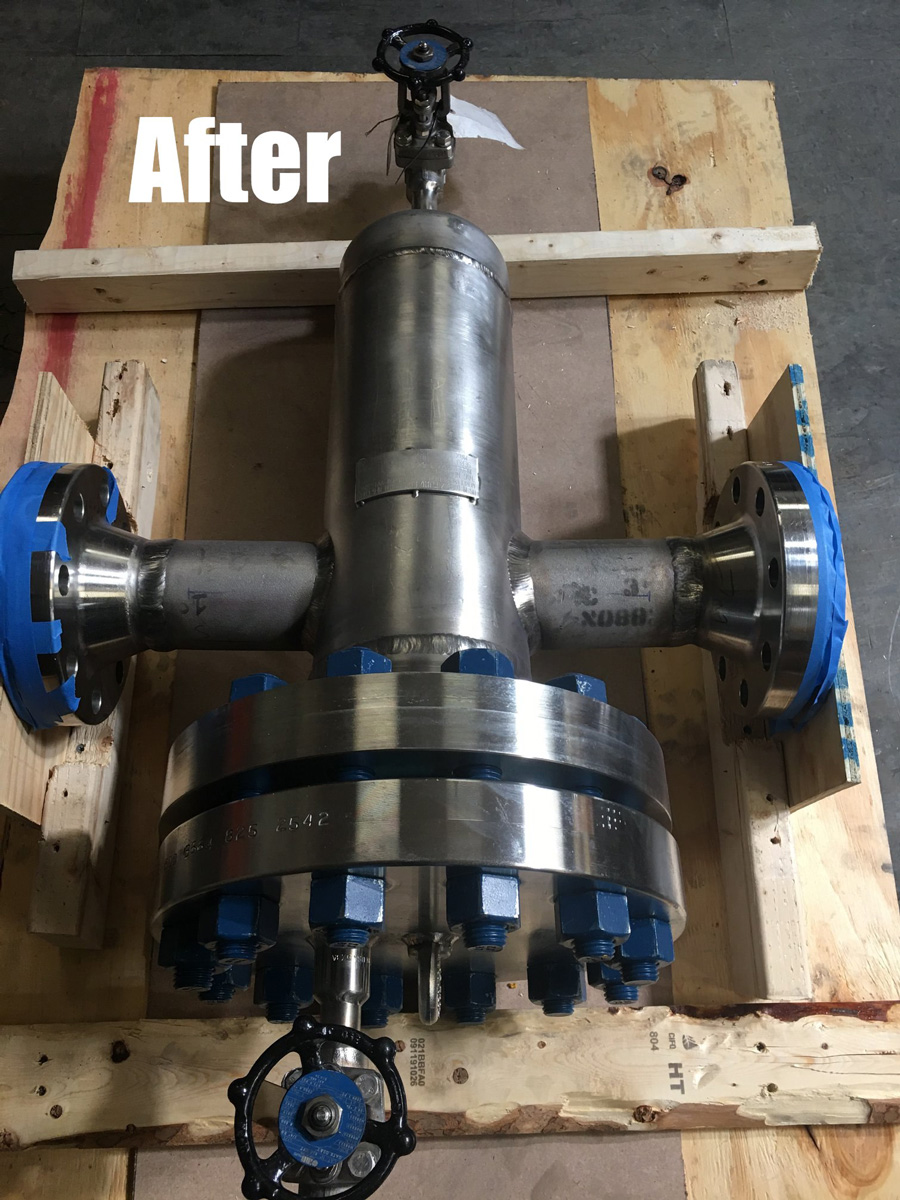

Incoloy 825 Fabricated Strainer Size 2.0" & 3.0". (before and after product)


Simplex Strainer 1

Fabricated simplex strainer, 316 Stainless Steel, size 8.0" 150# flange


Fabricated simplex strainer, 316 Stainless Steel, size 4.0" with easy opening tube turn cover

Fabricated simplex strainer ,316 Stainless Steel, size 4.0" with easy opening tube turn cover


Simplex Strainer 1

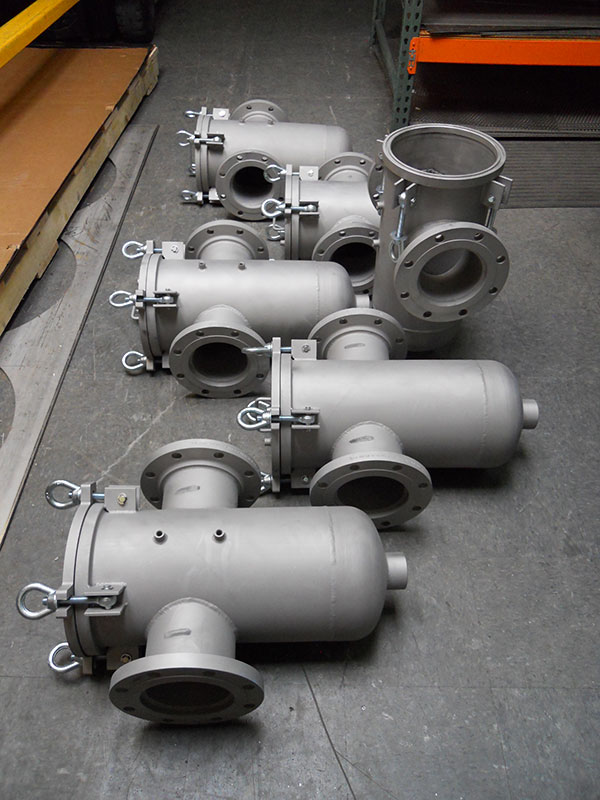

Fabricated Stainless Steel 316 simplex strainers


Simplex Strainer 1

Carbon Steel Size 2" 300# simplex strainer


Simplex Strainer 1

All fabricated 316 Stainless Steel simplex strainers

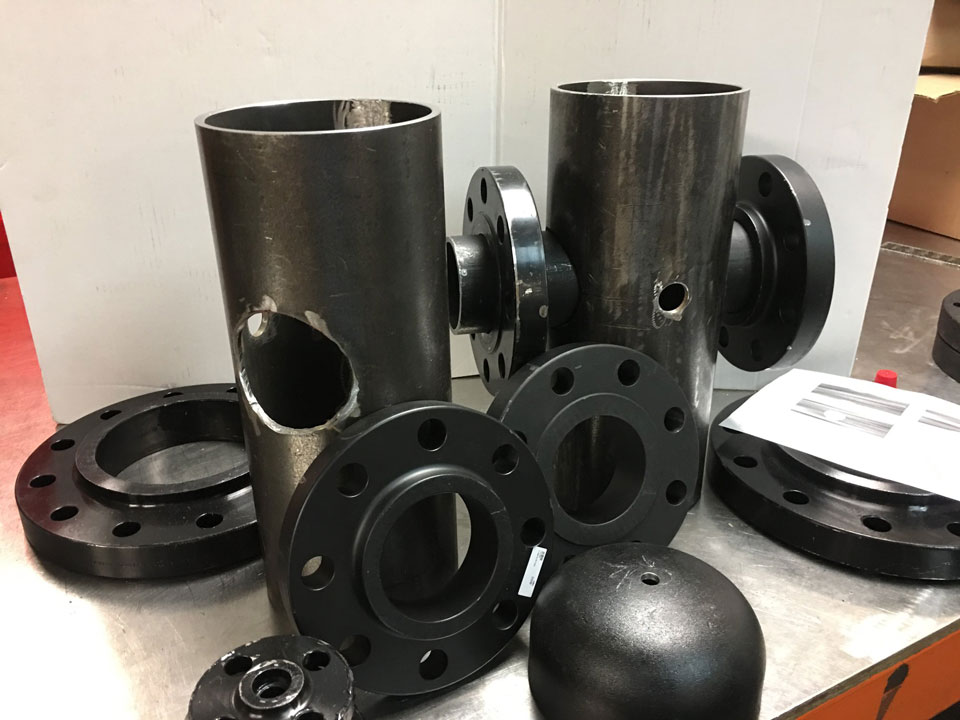

Carbon Steel High Pressure Simplex Strainer

Carbon Steel Size 3" High Pressure simplex strainer


Simplex Strainer 1

Fabricated Carbon Steel simplex strainer with Davit Arm.


Simplex Strainer 1

Model No. FSX-43FSS-316, size 3.0 inch inlet/outlet connection stainless steel 316 simplex strainers class 150# raised face flanged with bolted covers


Simplex Strainer 6

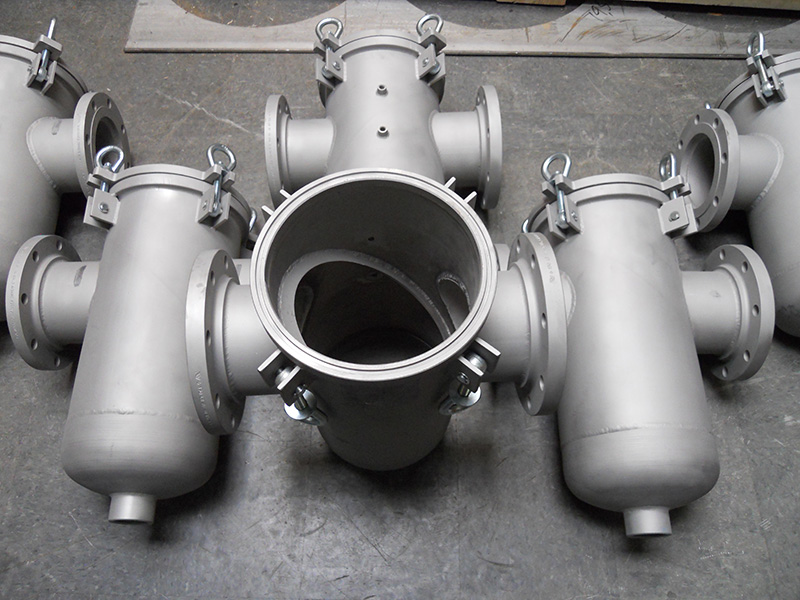

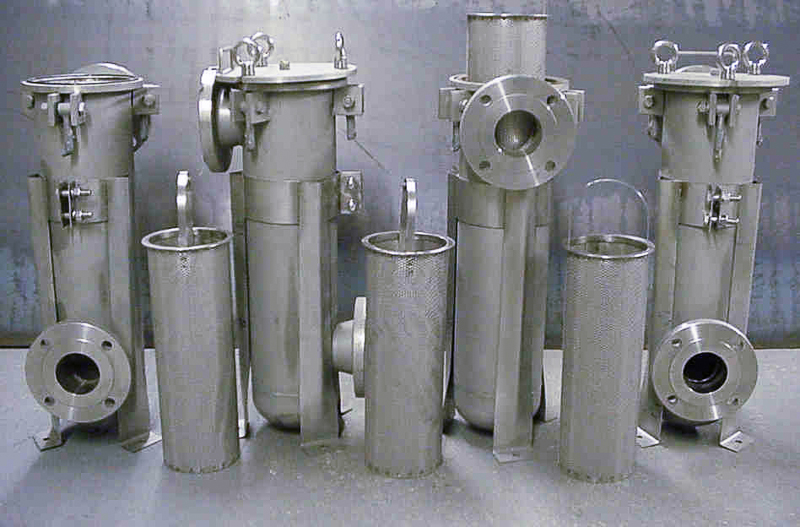

Fabricated Strainers Size 6.0 Stainless Steel 317 #150lb Flange with quick opening eye bolt closure


Simplex Strainer 2

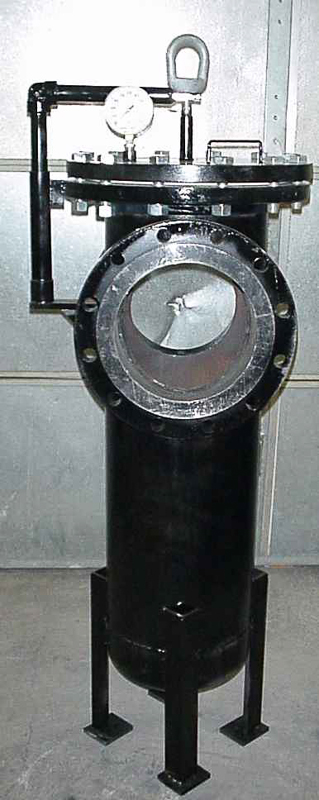

10.0" fabricated carbon steel simplex strainer with 150# raised faced flange with bolted cover and supporting legs and stainless steel basket


Simplex Strainer 3

Are available with pipe connections of 1/2 inch through 12.0 inch NPT or flanged. Housing can be furnished in carbon steel, stainless steel, Aluminium and monel, hastelloy C, etc. Large basket capacity for less frequent cleaning. optional filter bags


Simplex Strainer 5

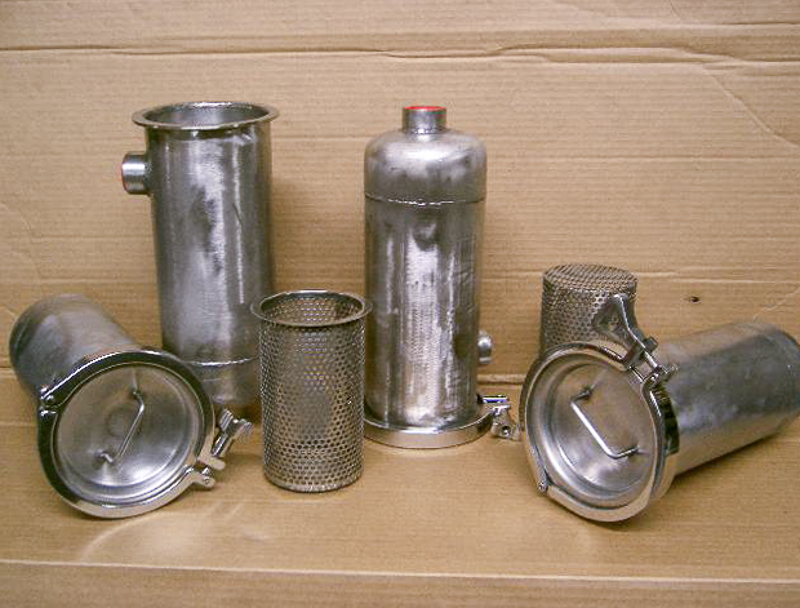

Stainless steel 316 clamp covered simplex strainers


Simplex Strainer 8

Size 6.0" carbon steel flanged simplex strainer


Simplex Strainer 10

Custom fabricated stainless steel simplex strainers


Simplex Strainer 12

Carbon steel fabricated simplex strainers.


Simplex Strainer 13

Stainless steel sanitized simplex strainers.


Simplex Strainer 14

Stainless steel fabricated high pressure strainers with bolted cover.

RELATED PRODUCTS
Slanted Basket 7

Simplex Strainer 15

Fabricated simplex strainer with bolted cover.


Simplex Strainer 17

Fabricated 4", 150lb flange simplex strainer, Teflon coated on the inside with wedge-wire basket.


Click above to preview all drawings

Are available 1 inch through 48 inch with solid or perforated bottoms.

For detailed drawings please click on downloadable PDF files below.

Suction Strainer 6

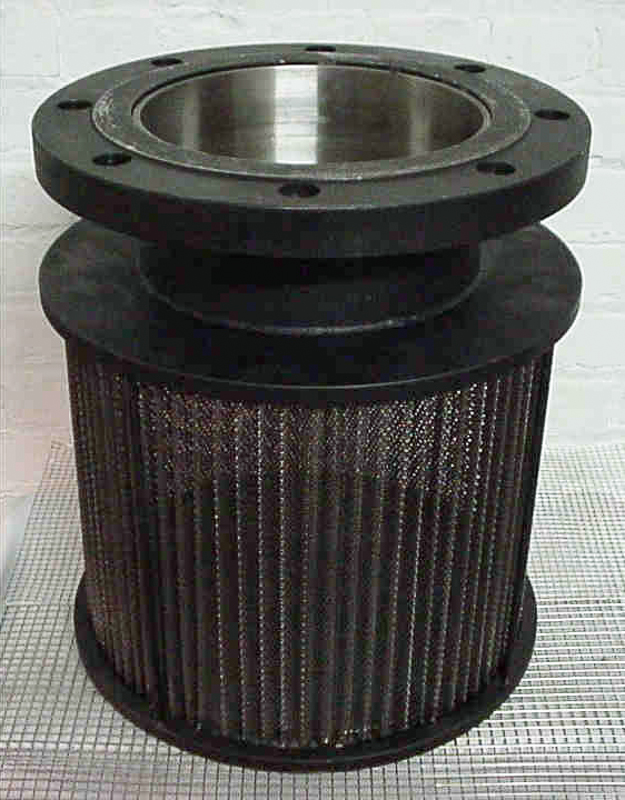

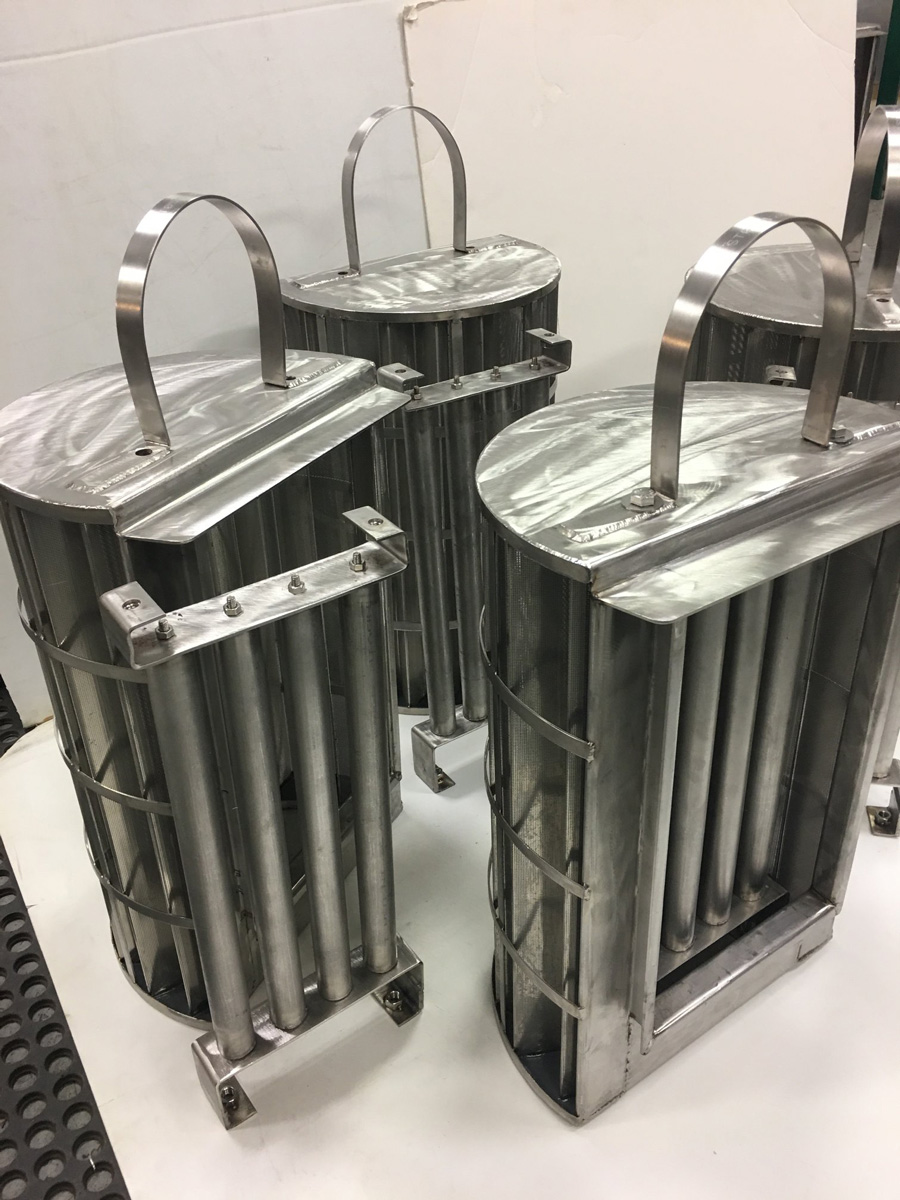

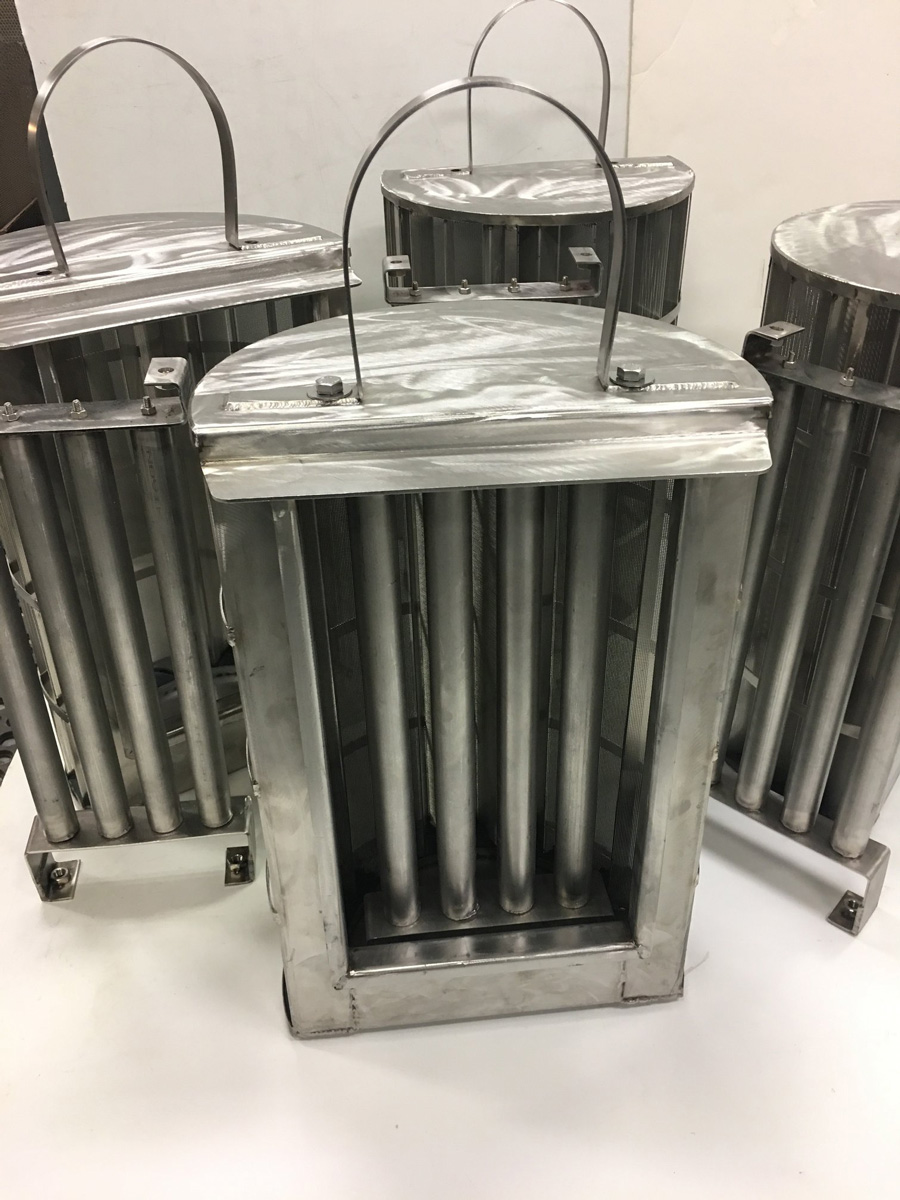

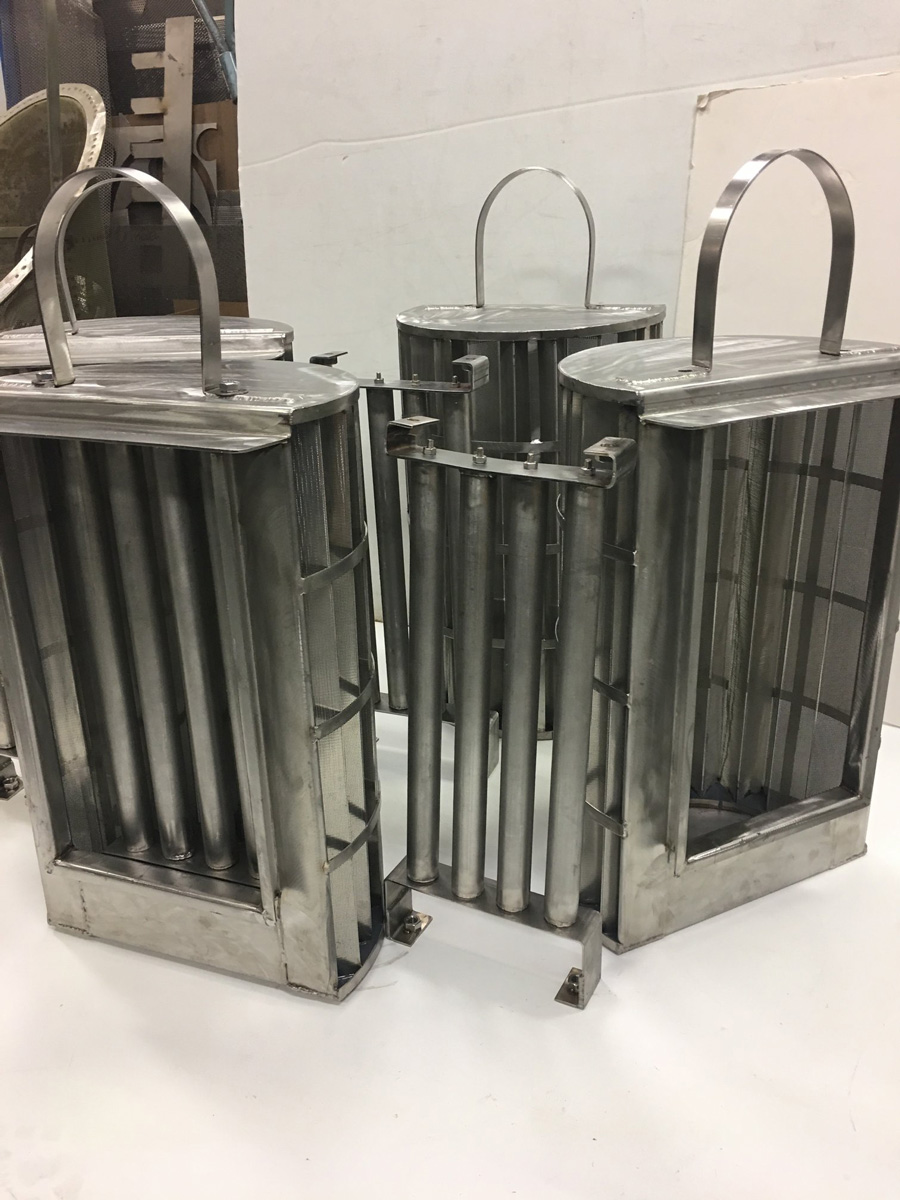

Pleated Perforated Strainers with Heavy Duty Removable Rare Earth Magnets Inside All SS 316.


Suction Strainer 6

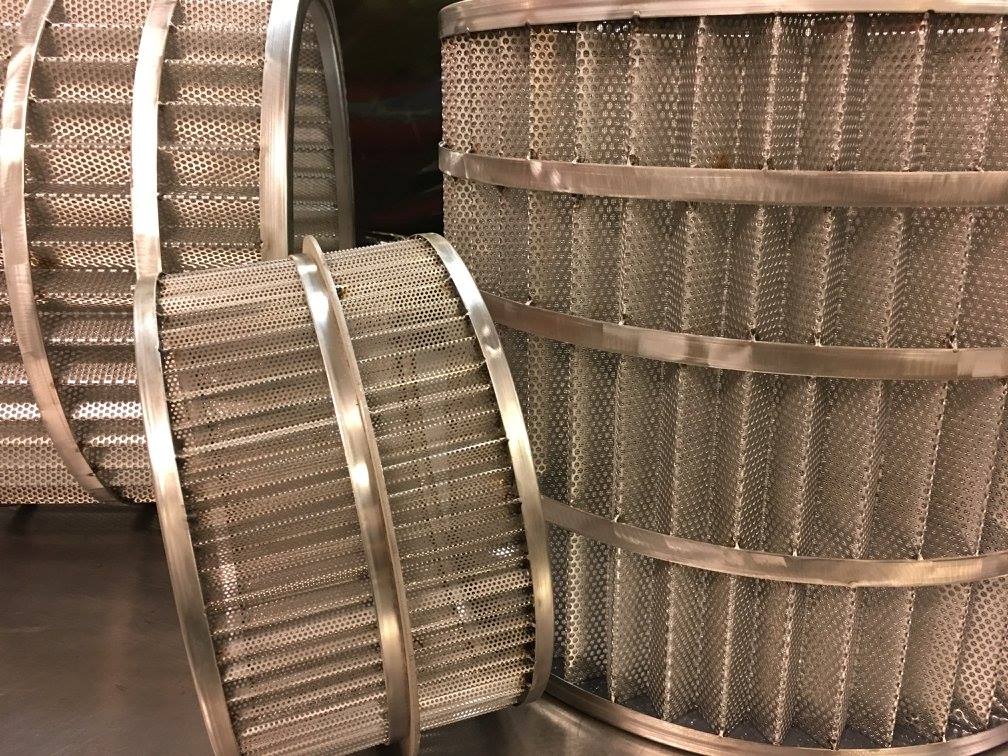

Staiinless steel pleaded strainers.


Suction Strainer 6

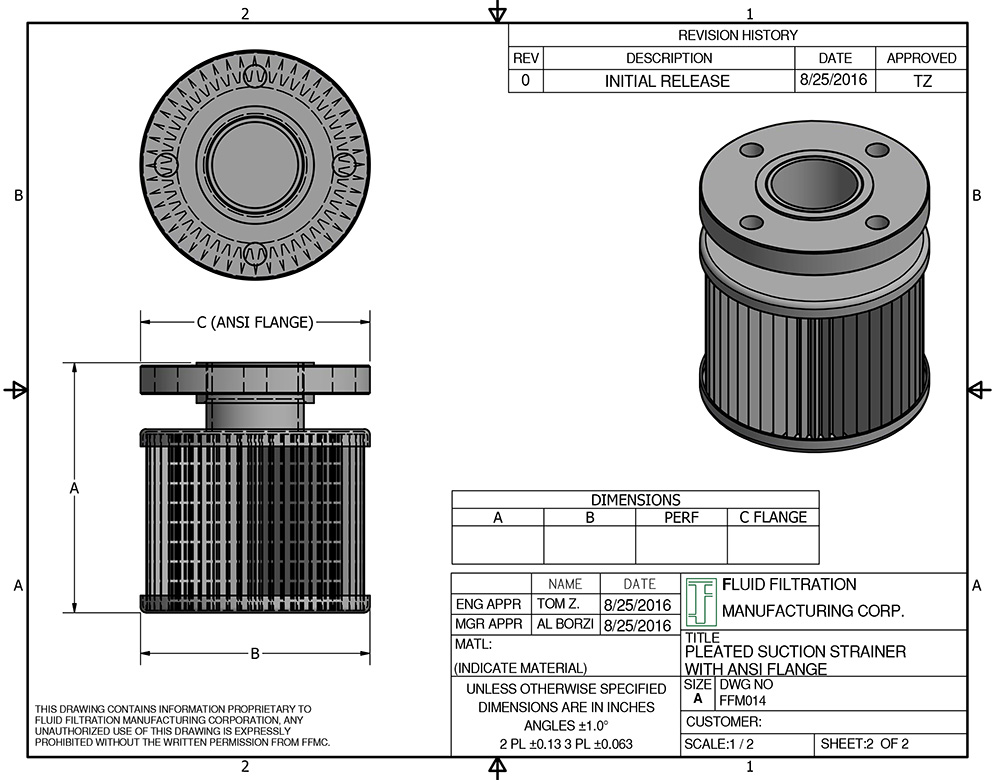

Stainless steel 150# ANSI flanged discharged pump strainers with pleated stainless steel perforated material.

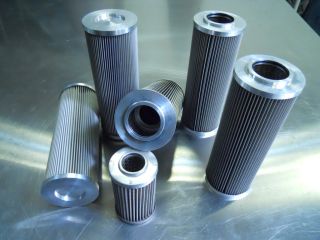

Pleated Strainers

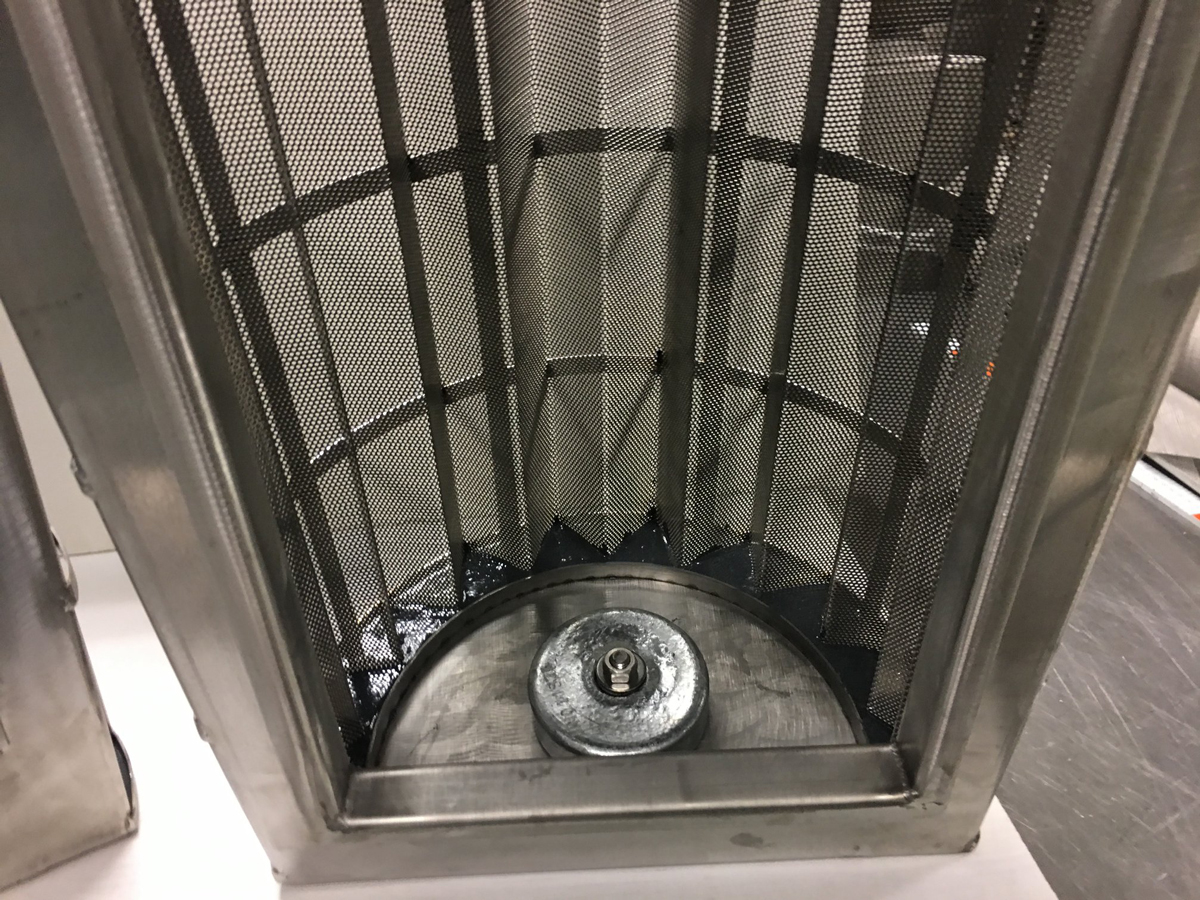

Stainless steel pleated strainers with zinc anode

Pleated Striner 1

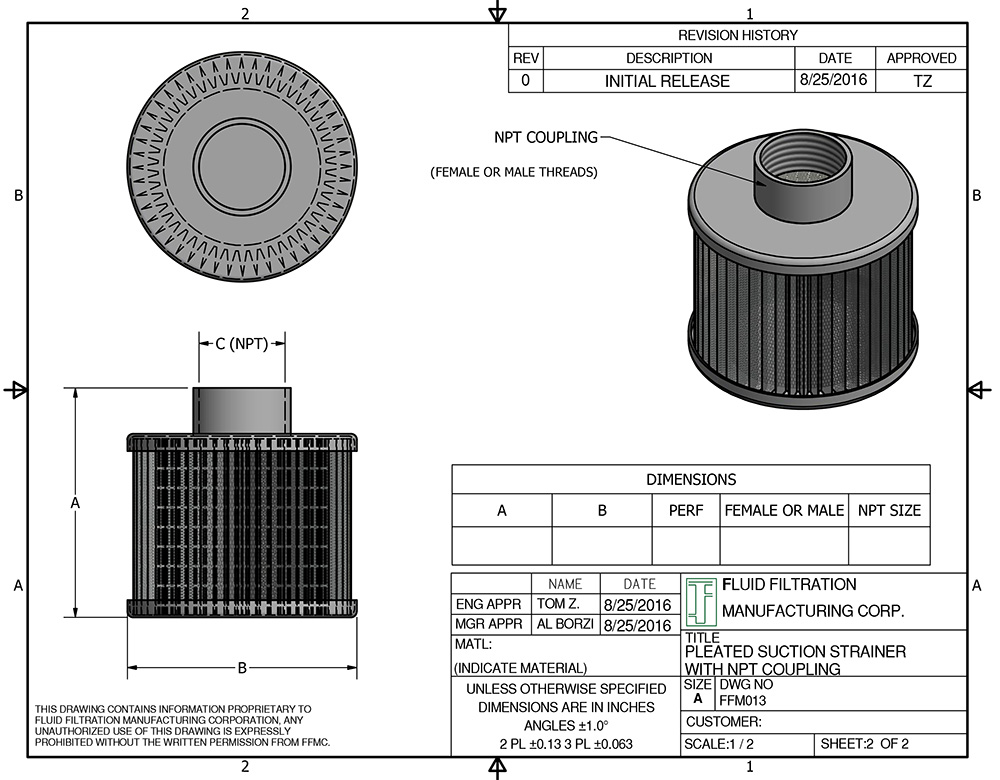

Pleated 400 mesh (38 micron) suction strainers.


Pleated Strainer 1>

Automatic Strainer.

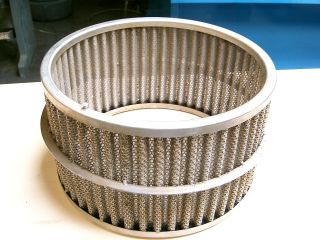

Perforated Lobster Pots convoluted mesh lined stainless steel baskets


Pleated Strainer 3

Lobster pot style convoluted fabricated stainless steel strainers for 10, 12, 16, and 18 inch Hayward model 72-73 simplex strainers and model 50-51 duplex strainers, lined with or without stainless steel mesh. Also available in Monel material.

RELATED PRODUCTS
Replacement Basket 1

Click above to preview all drawings

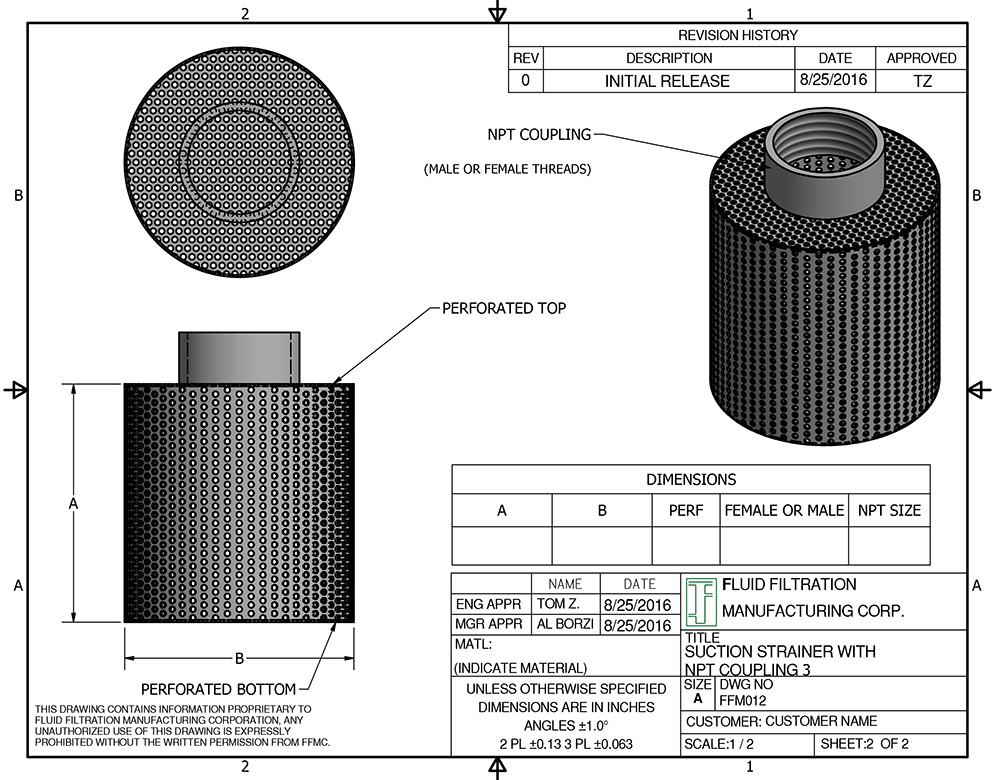

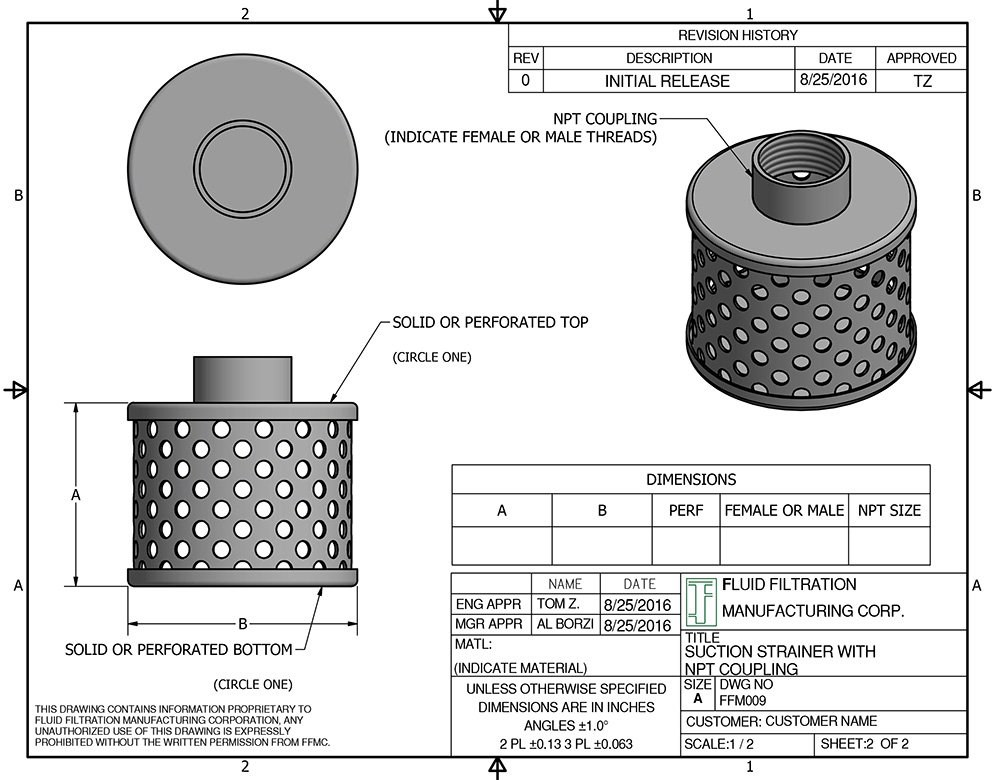

Are available 1 inch through 48 inch with solid or perforated bottoms.

For detailed drawings please click on downloadable PDF files below.

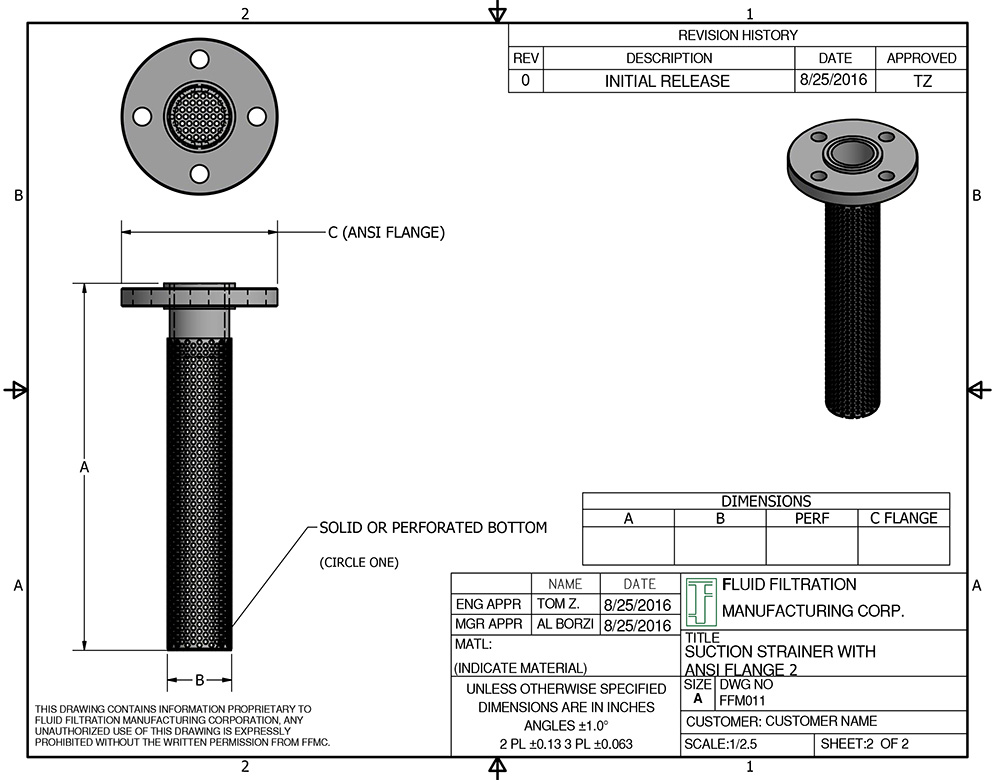

Suction Strainer

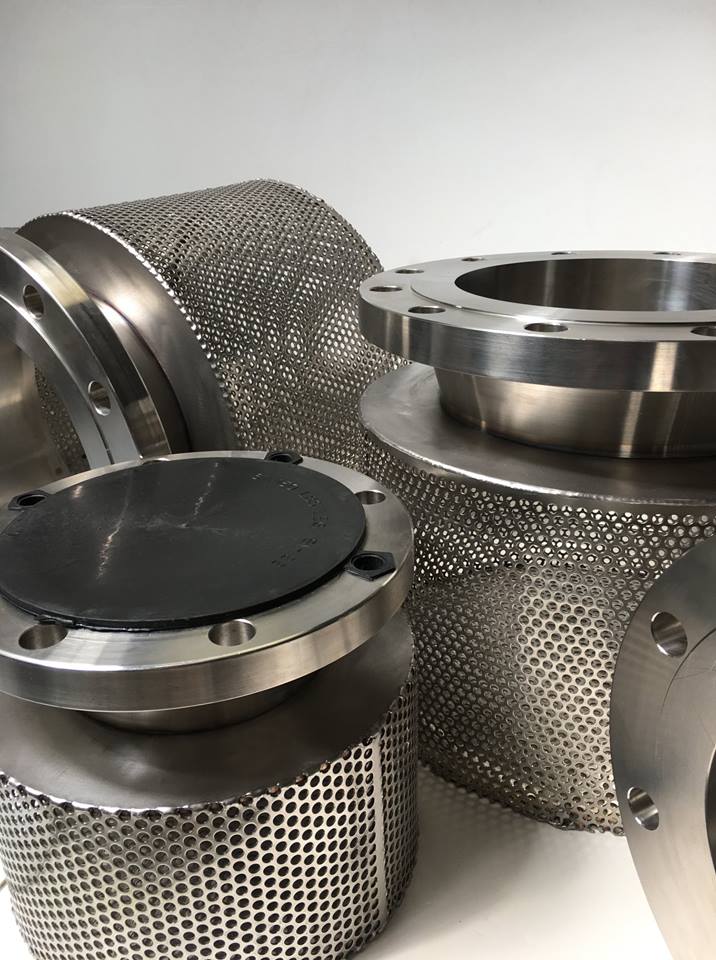

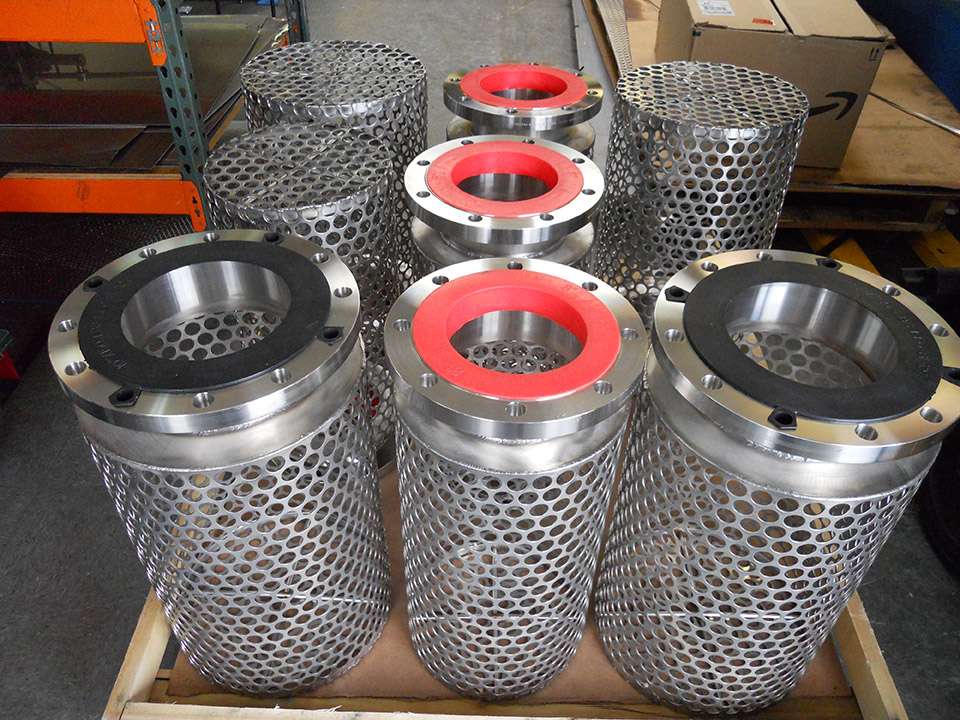

All 316 Stainless Steel suction strainers


Suction Strainer 1

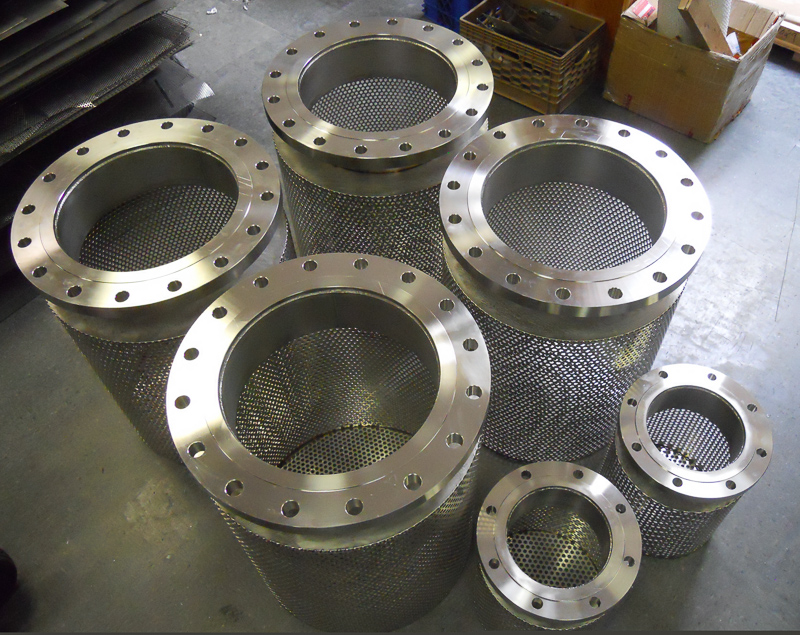

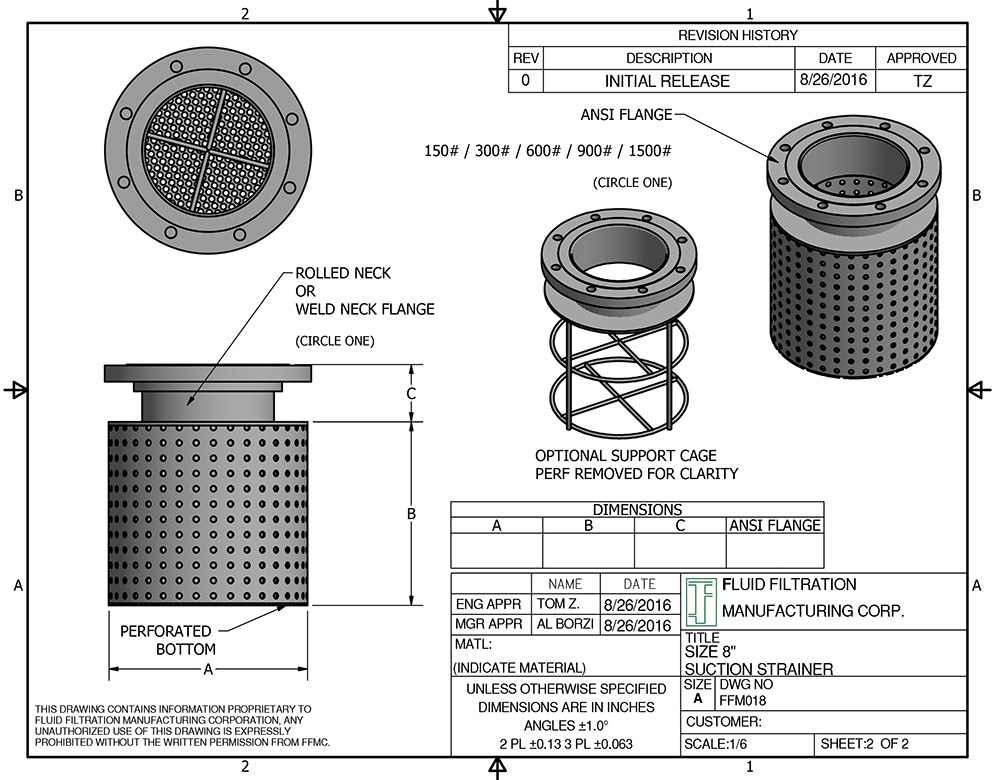

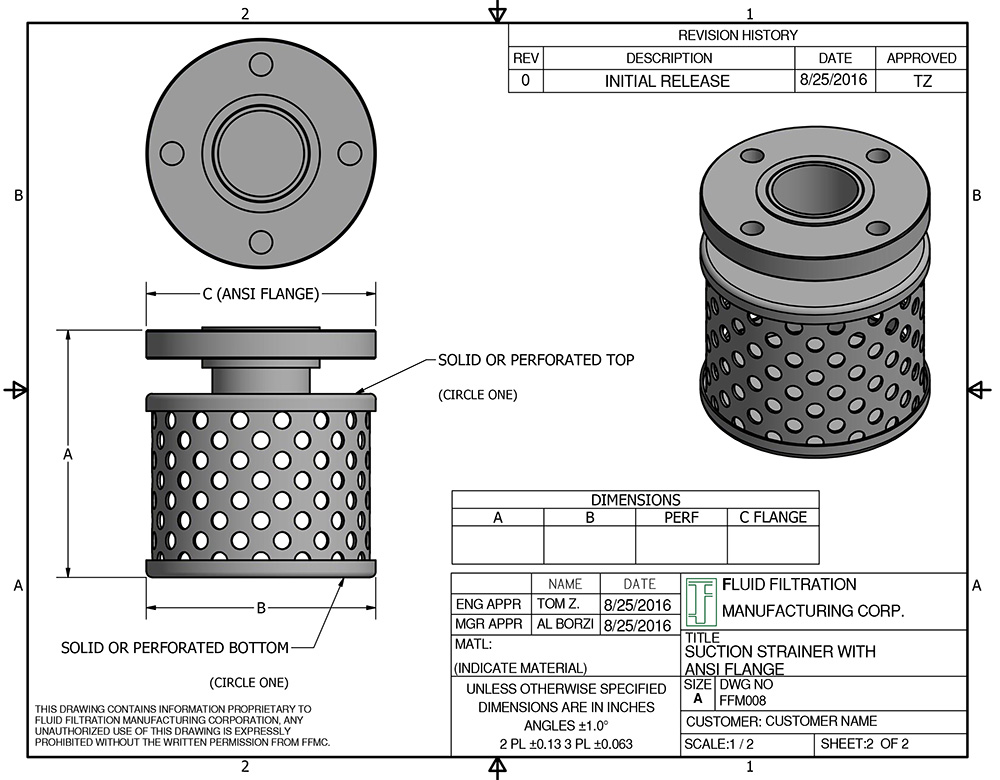

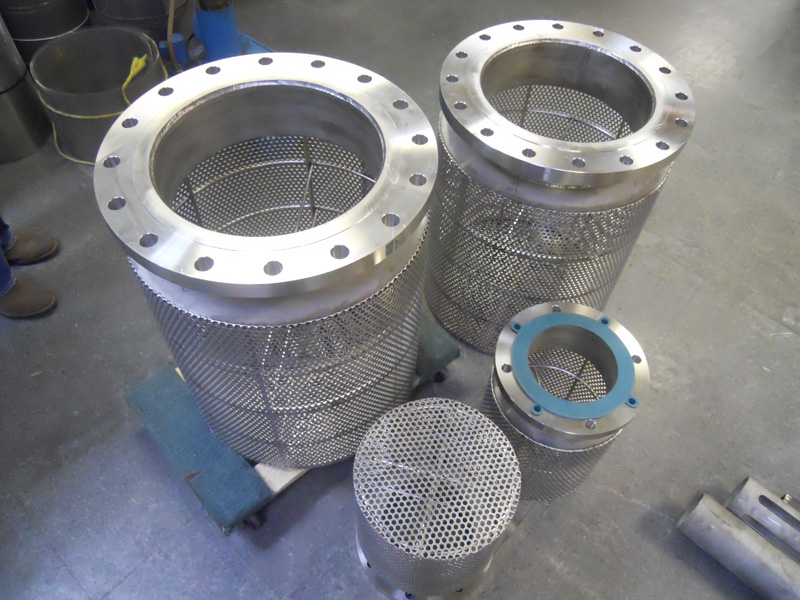

8 inch 150lbs Flange 316 Stainless Steel suction strainer half inch perforation with supported perforated bottom.


Suction Strainer 1

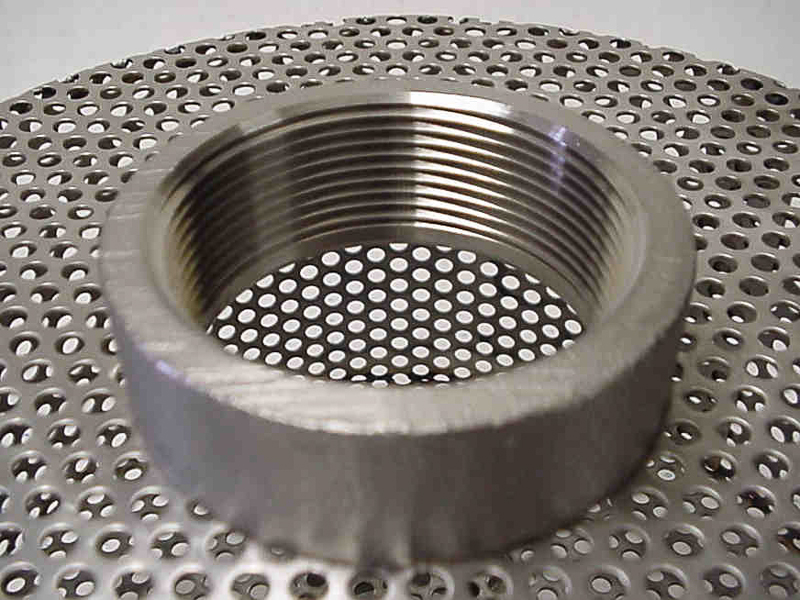

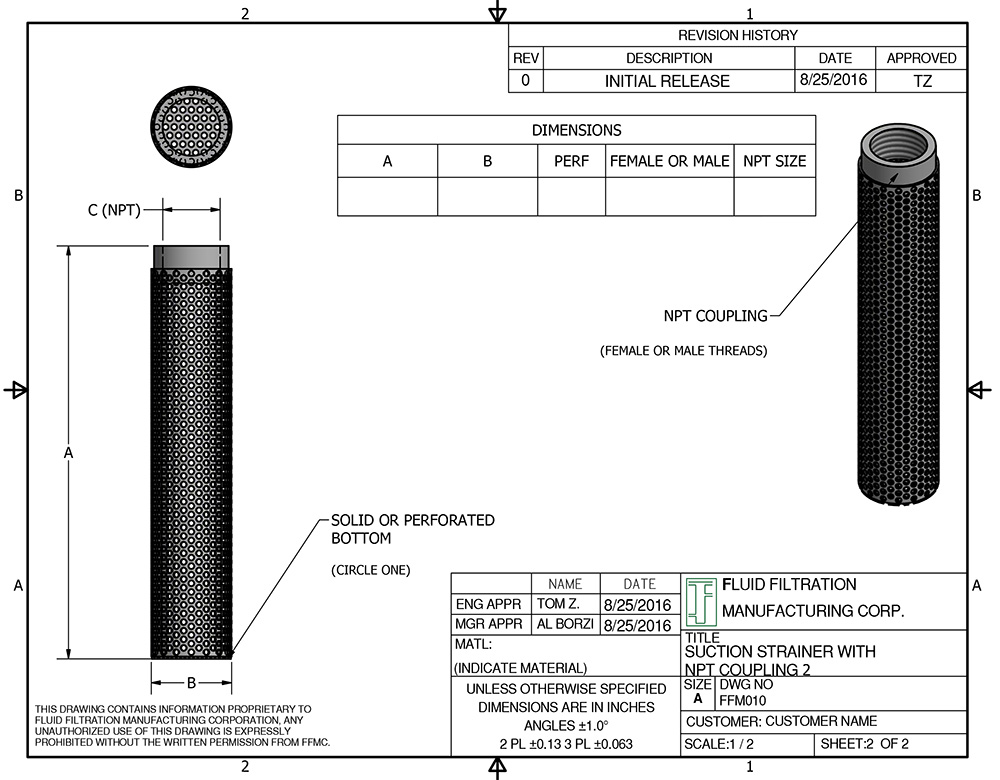

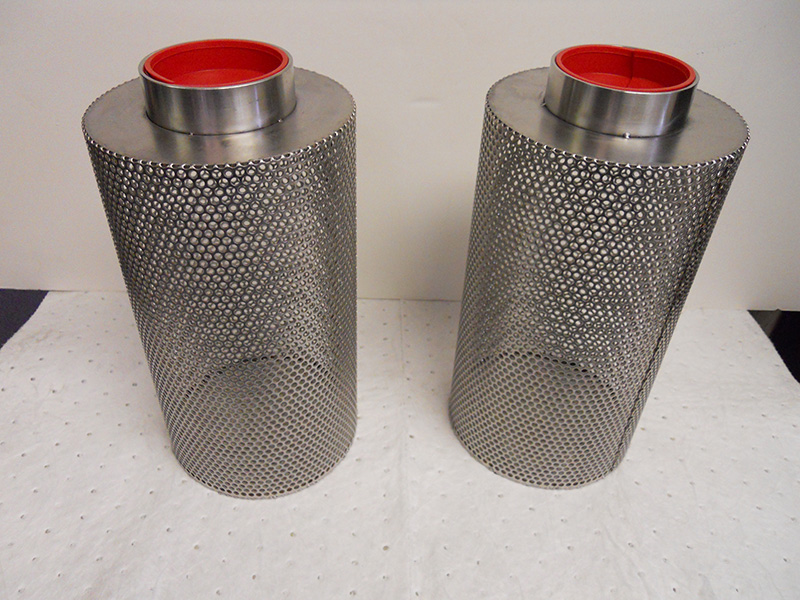

Size 3" Female Coupling all SS 316 suction strainers solid one end and perforated on other end.


Suction Strainer 1

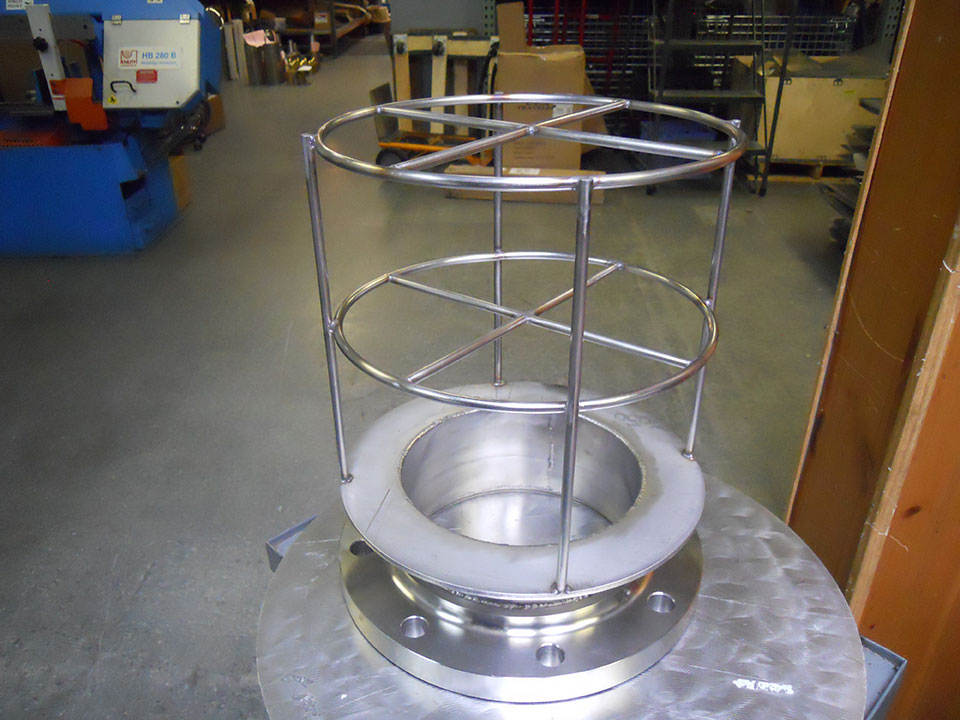

Stainless Steel 16in suction strainer with inner cage built inside.


Suction Strainer 1

1.0 inch perforation size, 316 stainless steel discharge pump strainers.


Suction Strainer 2

300 lbs flanged stainless steel 1/8" perforated strainers.


Suction Strainer 3

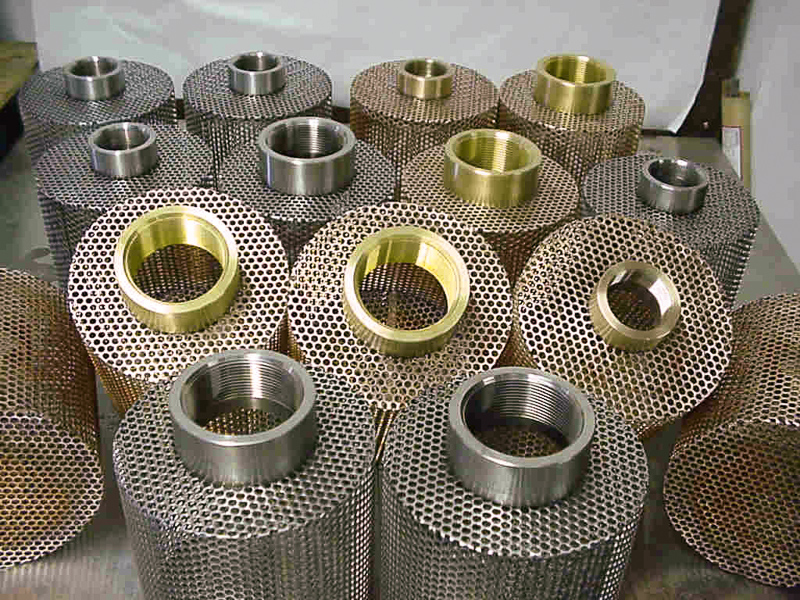

Perforated Monel and Copper discharge pump strainers with all welded Monel and Bronze female couplings.


Suction Strainer 4

Material of construction: zinc plated steel, stainless steel, monel, hastelloy, etc. Perforated 1/32" to 1.0" diameter holes.


Suction Strainer 5

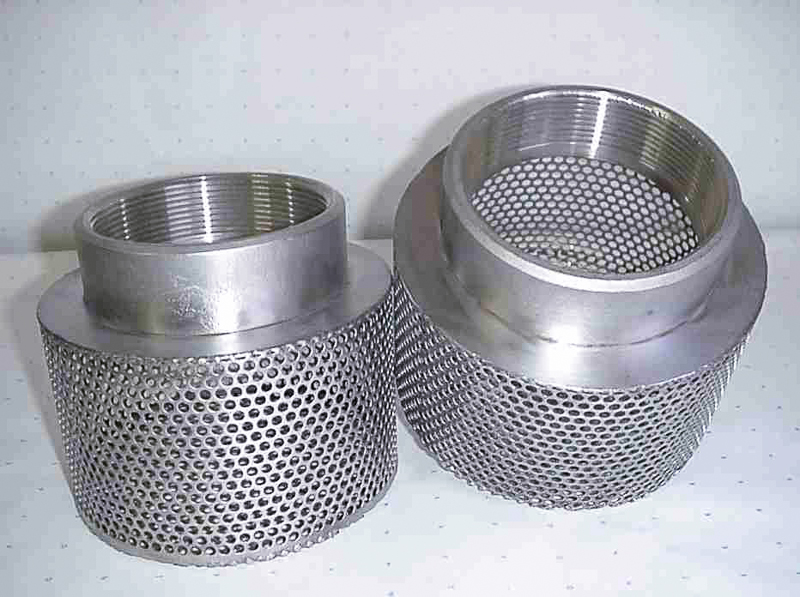

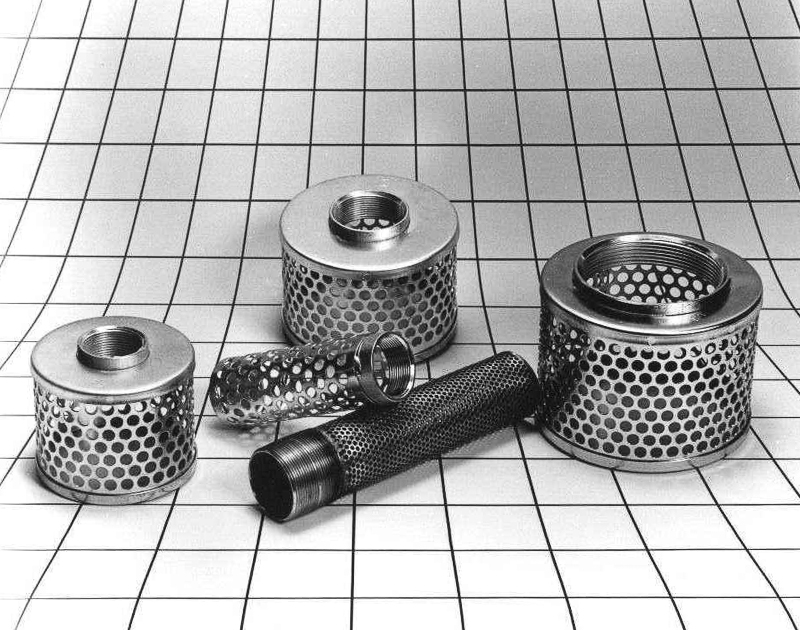

Fabricated discharge pump strainers with full or half female coupling.


Suction Strainer 6

Stainless steel 150# ANSI flanged discharged pump strainers with pleated stainless steel perforated material.


Suction Strainer 7

4.0" stainless steel 1/8" perforated with 1/2 female coupling and perforated bottom.


Suction Strainer 8

Pleated 400 mesh (38 micron) suction strainers.

RELATED PRODUCTS
Pleated Strainer 1

Suction Strainer 9

3.0" stainless steel 1/4" perforated discharge pump strainers.


Suction Strainer 10

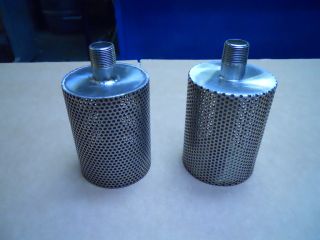

Titanium male connector suction strainers.


Suction Strainer 11

316 stainless steel wedge wires suction strainer with 1.5" male connection.


Suction Strainer 12

All Stanless steel heavy duty suction strainer with 16" flange.


Suction Strainer 12

All Stanless steel reinforced heavy duty suction strainer.


Click above to preview all drawings

Custom Product 1

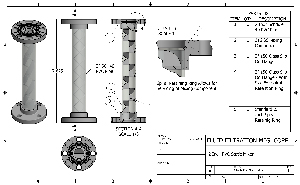

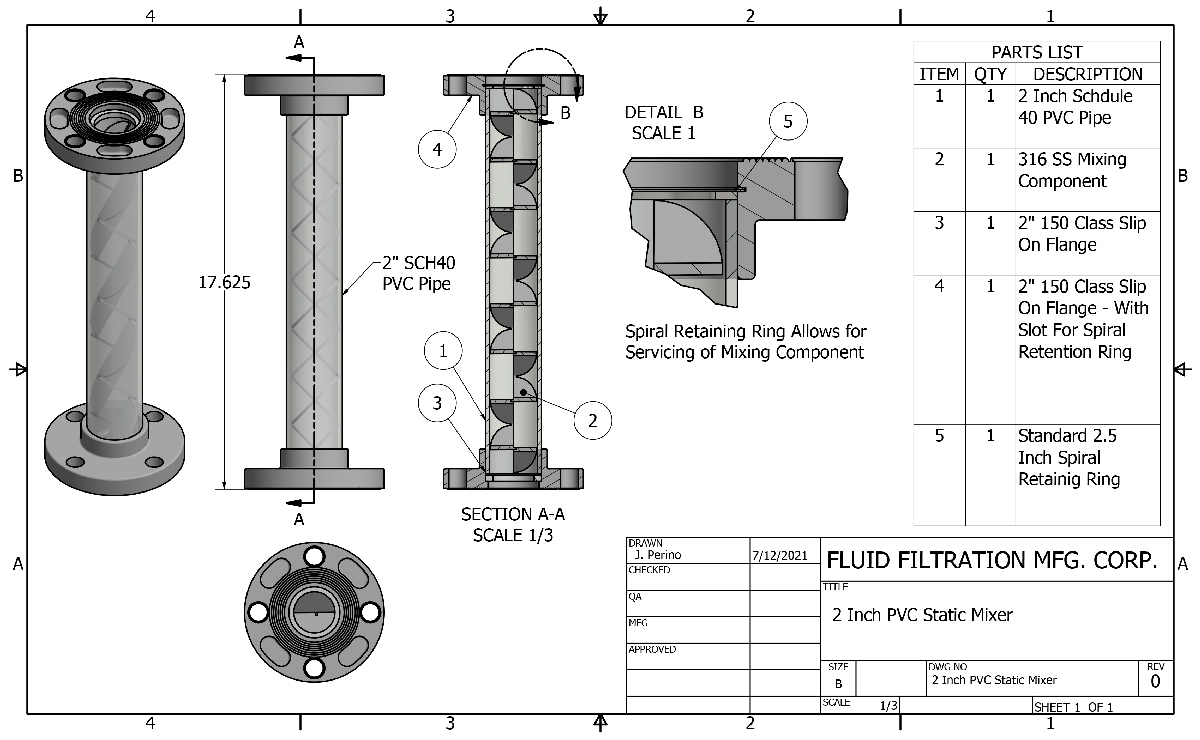

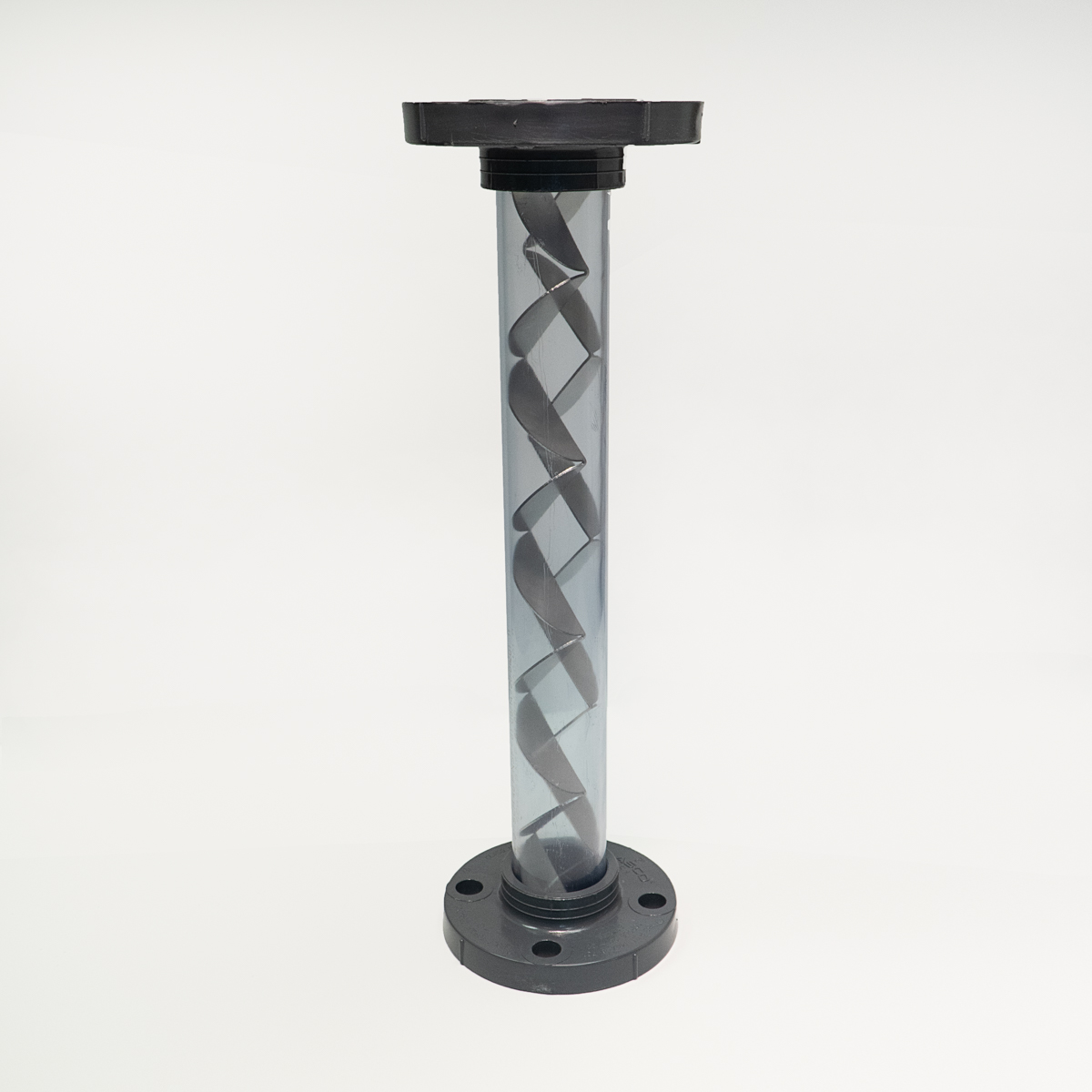

2 Inch PVC Static Mixer


Click above to preview all drawings

Custom Product 1

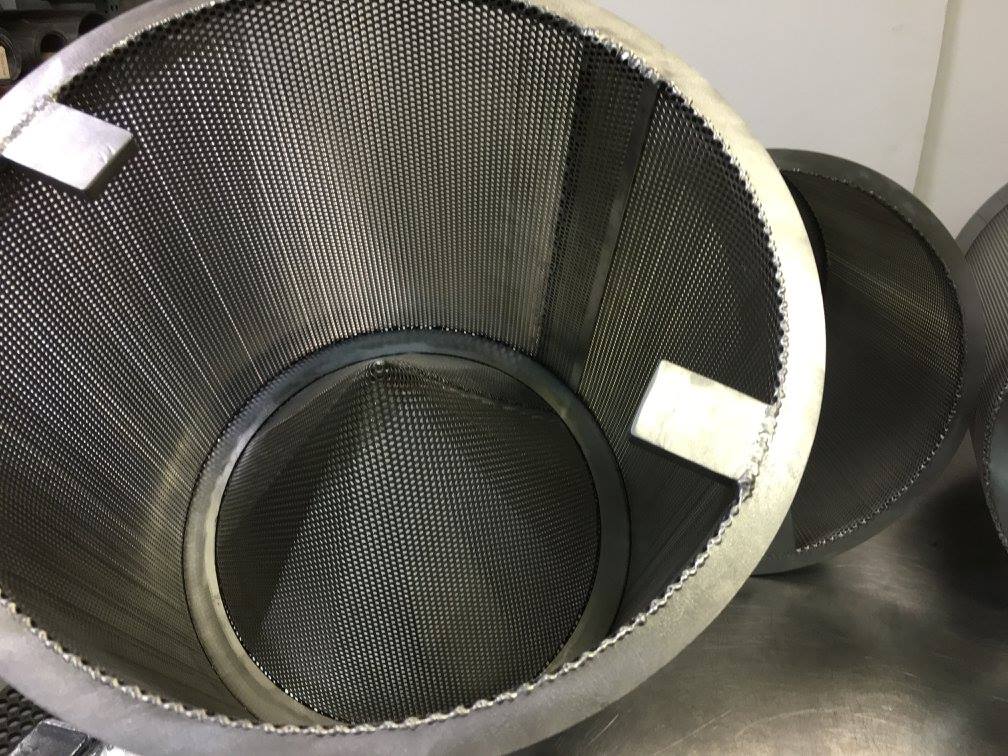

Inverted Stainless Steel Perforated Strainers


Custom Product 1

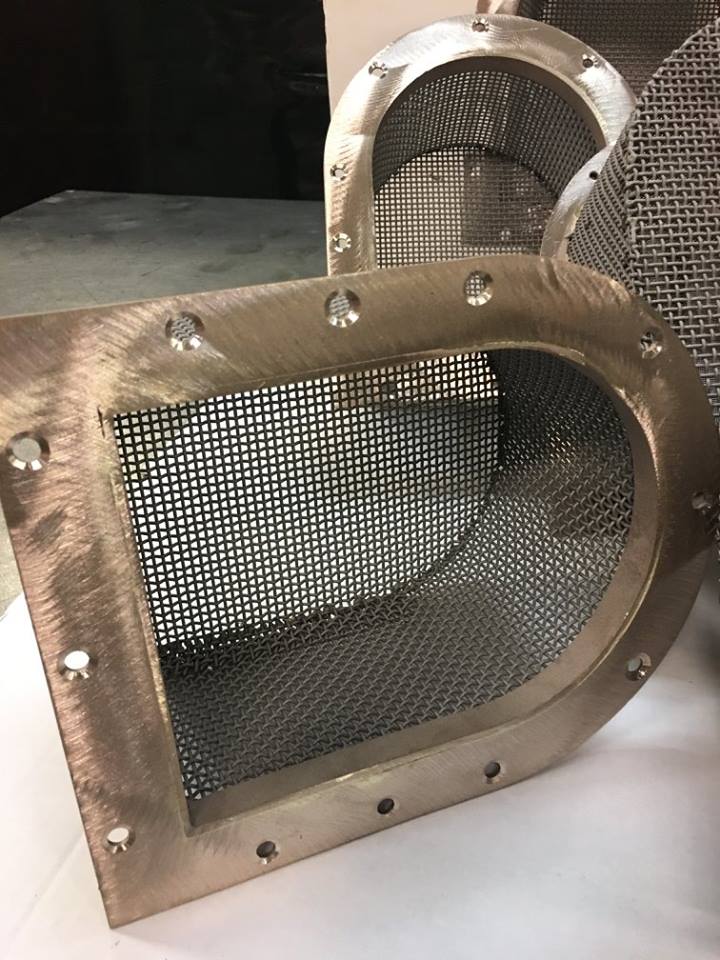

Monel 400/Copper Nickel strainers


Custom Product 1

Fabricated Stainless Steel Y type strainers


Custom Product 1

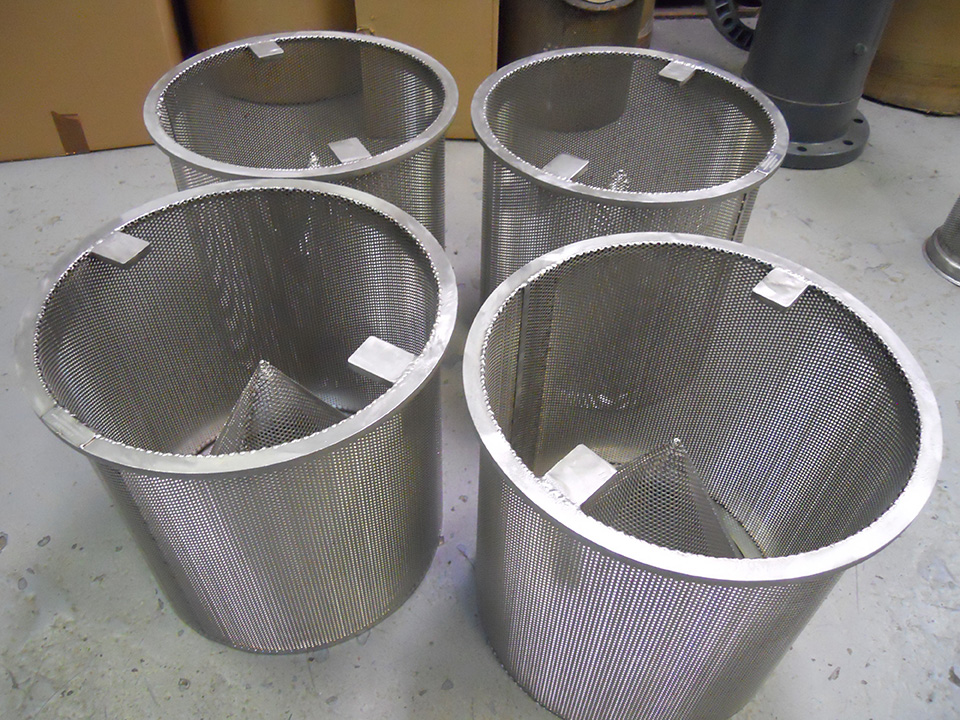

Heavy Duty Double Element Screens


Custom Product 1

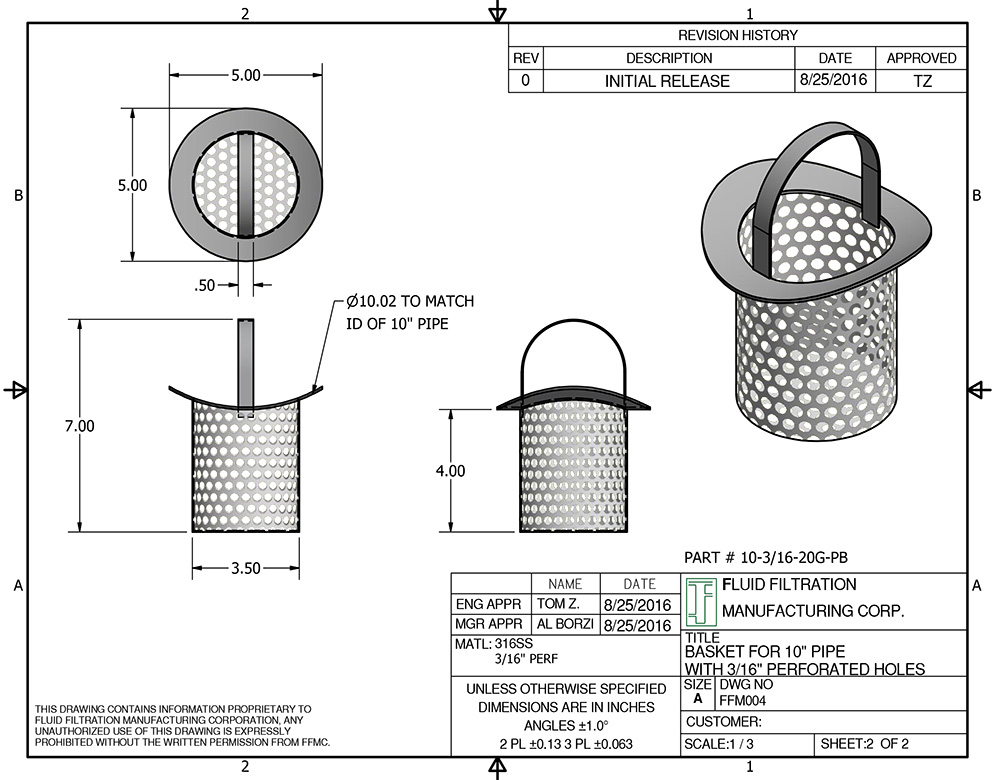

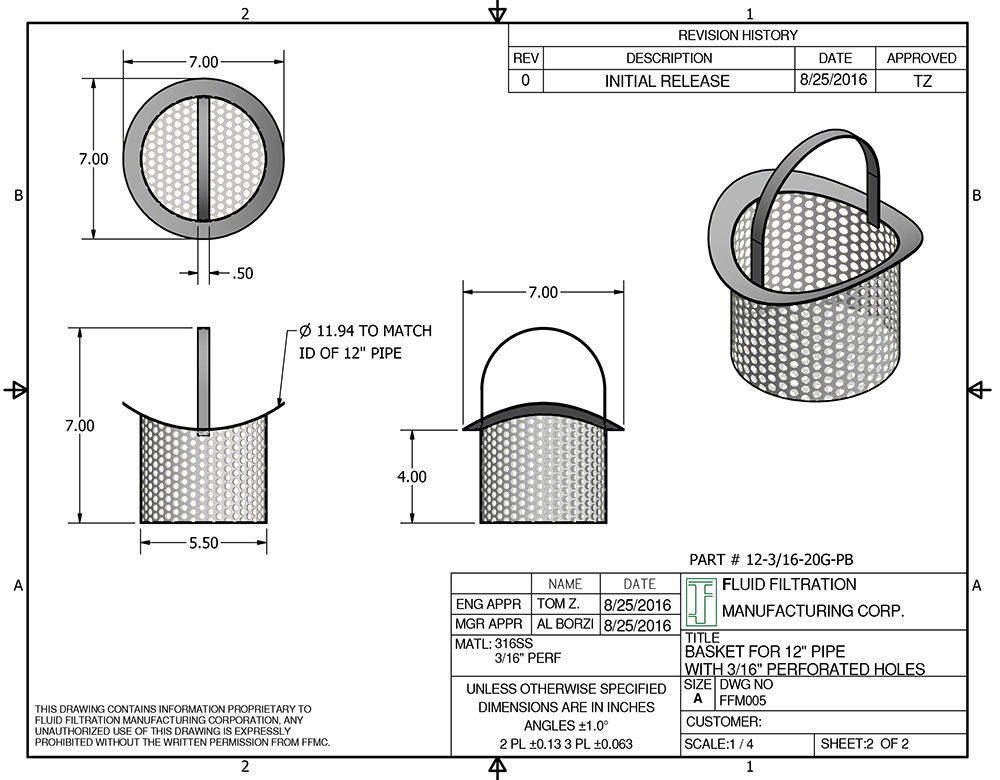

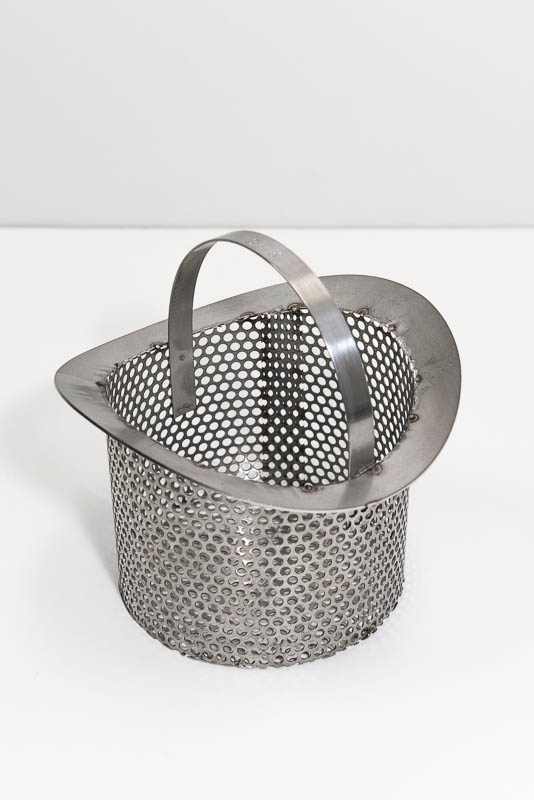

Pipe drainage baskets for 10 & 12 inch pipes in 3/16 perforated holes, 316 stainless steel material


Suction Strainer 6

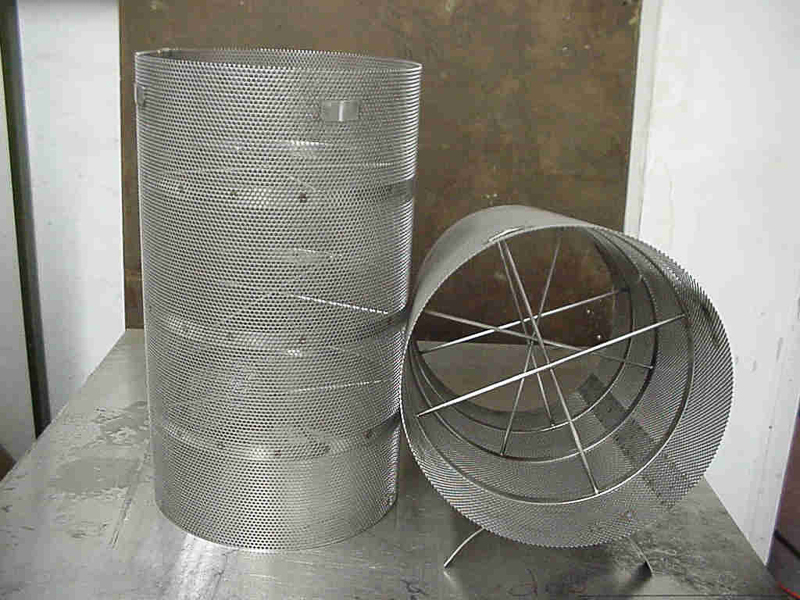

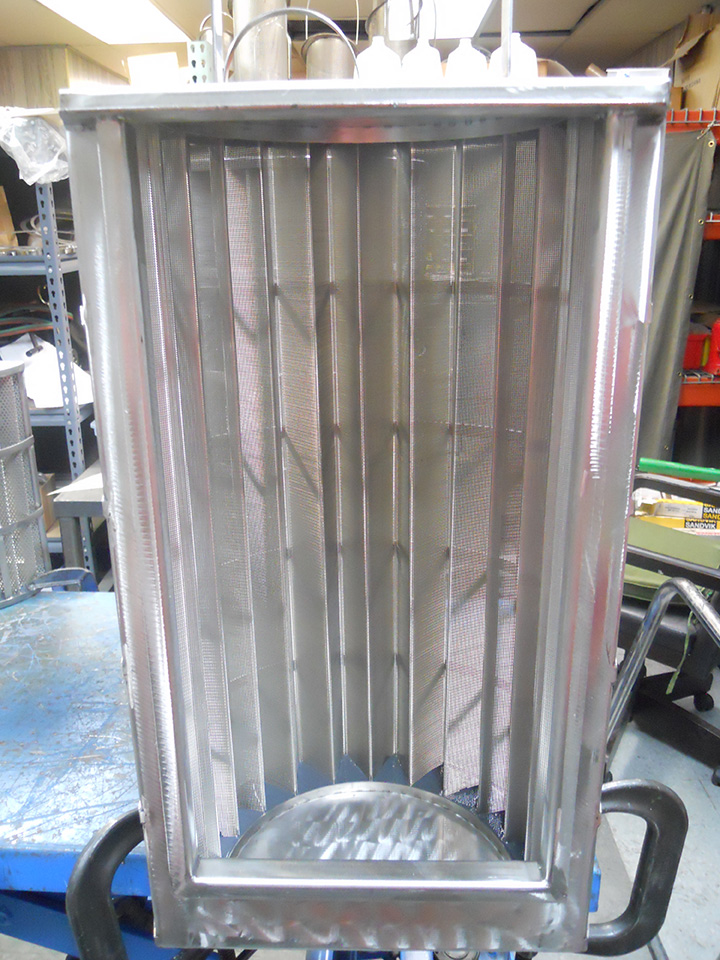

Large size fabricated perforated baskets with cage built Inside for extra support


Custom Product 16

Tate and Dale replacement basket with custom stainless steel flange used to replace old cast iron flange for a stonger and longer lasting basket


Custom Product 1

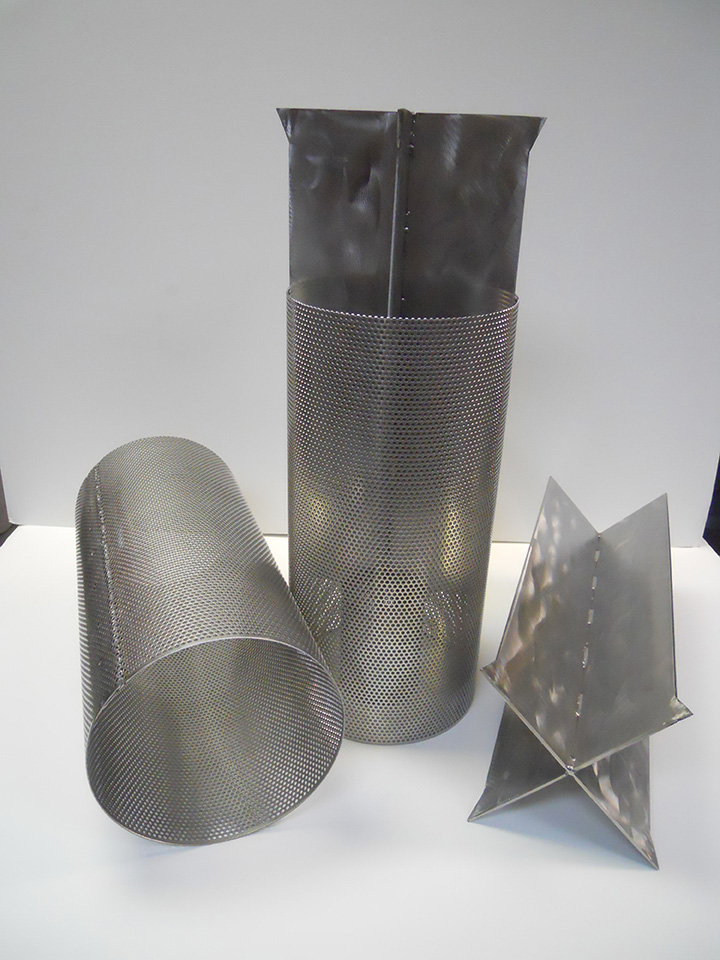

Size 10 inch Bell and Gosset Screens with Baffles


Perforated Lobster Pots convoluted mesh lined stainless steel baskets


Custom Product 1

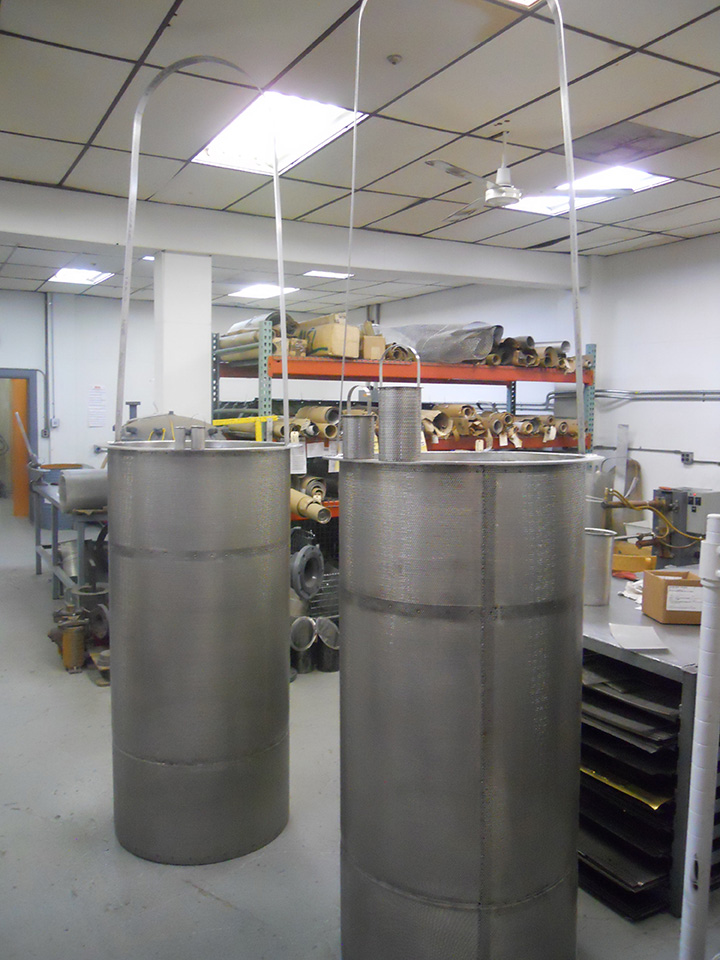

Long Stainless Steel Perforated Basket Strainers with Extra Support


Custom Product 1

1/4 inch perforated stainless steel cylinders with support beams built inside for extra rigidity. Used in "Y" type strainers.

RELATED PRODUCTS
Perforated Tube 1

Custom Product 2

Special designed perforated strainers with stainless steel attachments.


Custom Product 3

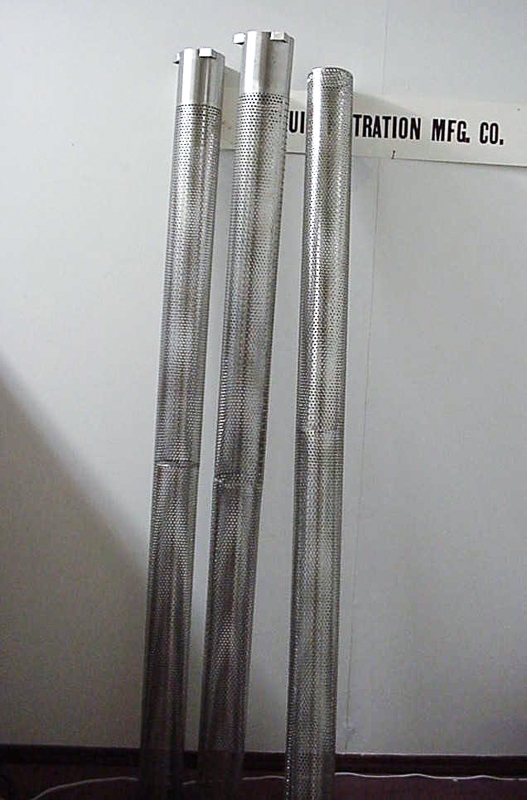

316 stainless steel 1/4" perforated strainers, 8.0 feet long x 6.0 inch diameter.


Custom Product 4

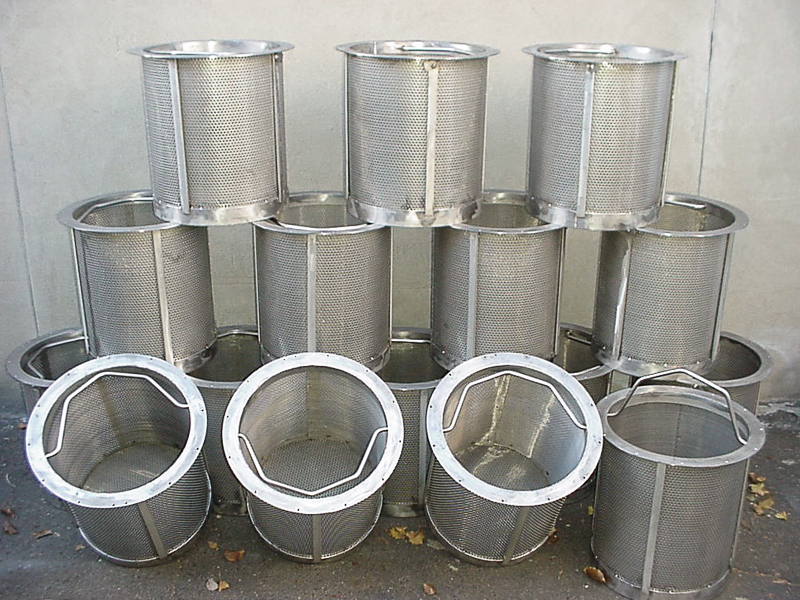

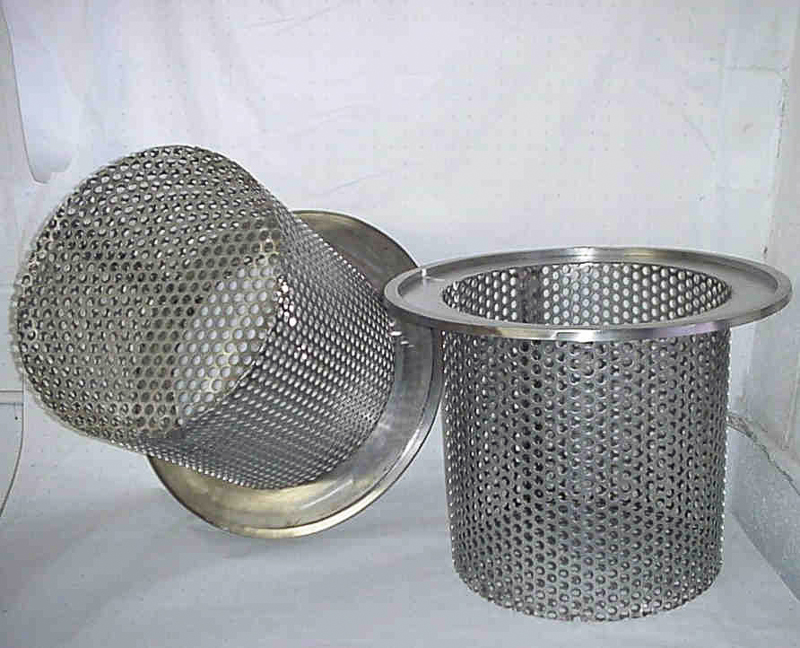

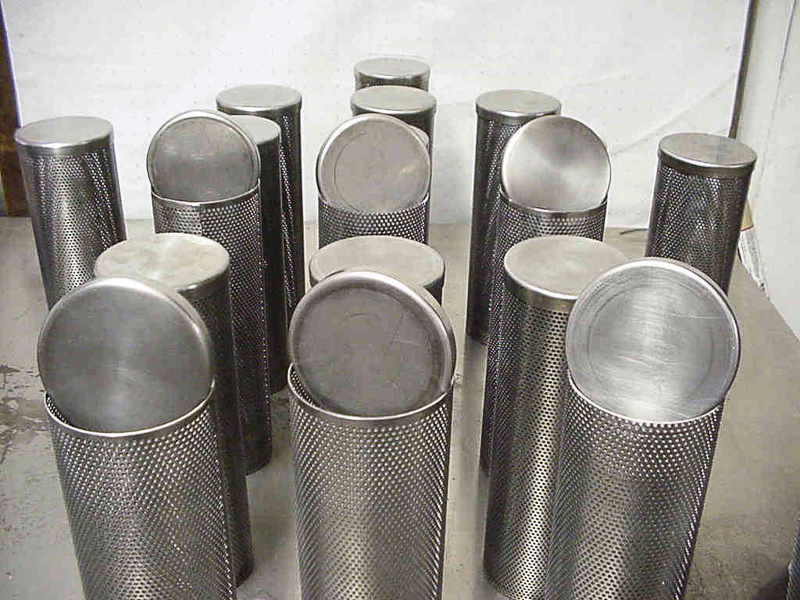

Perforated stainless steel and carbon steel basket strainers with perforated bottoms and removable solid covers.


Custom Product 6

Stainless steel 316 grooved flange basket strainers with 1/2" perforated material.


Custom Product 7

Heavy duty stainless steel drainage baskets.


Custom Product 8

Stainless steel heavy duty reinforced basket strainers with mesh liner used in machine shop industry for collecting metal particles.


Custom Product 9>

All monel perforated baskets with monel mesh liner.


Custom Product 10

Fabricated stainless steel housing with perforated basket.


Custom Product 11

Lobster pot style convoluted fabricated stainless steel strainers for 10, 12, 16, and 18 inch Hayward model 72-73 simplex strainers and model 50-51 duplex strainers, lined with or without stainless steel mesh. Also available in Monel material.

RELATED PRODUCTS
Pleated Striner 1

Custom Product 12

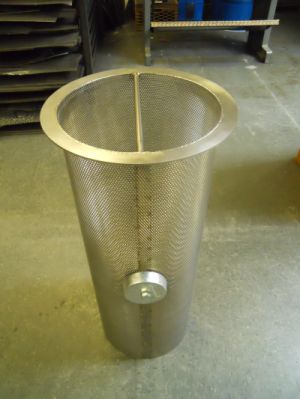

Stainless steel baskets with zinc plated attachment


Custom Product 13

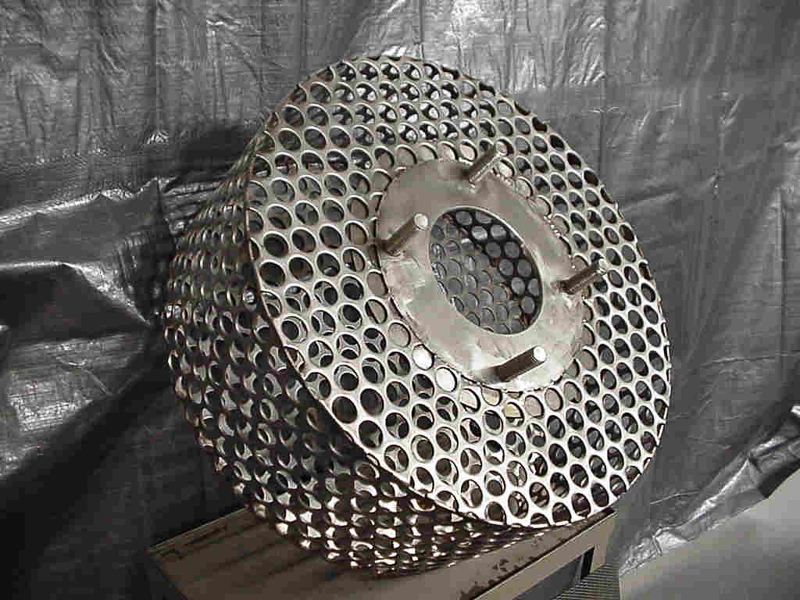

Special custom cone strainer.


Custom Product 14

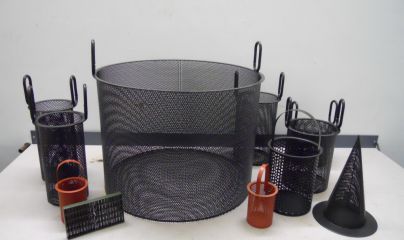

Teflon coated strainers.


Custom Product 15

Stainless steel electro polished eliptical 1/2' perforated stainers.


Custom Product 16

1/4 perforated basket strainers.


Custom Product 17

Monel heavy duty 1/4" Thick material with water jet 1/8" perforation.
